2003 Suzuki VZ800 Front Cylinder Head Diagram

← All diagrams

Find the part on the Front Cylinder Head diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

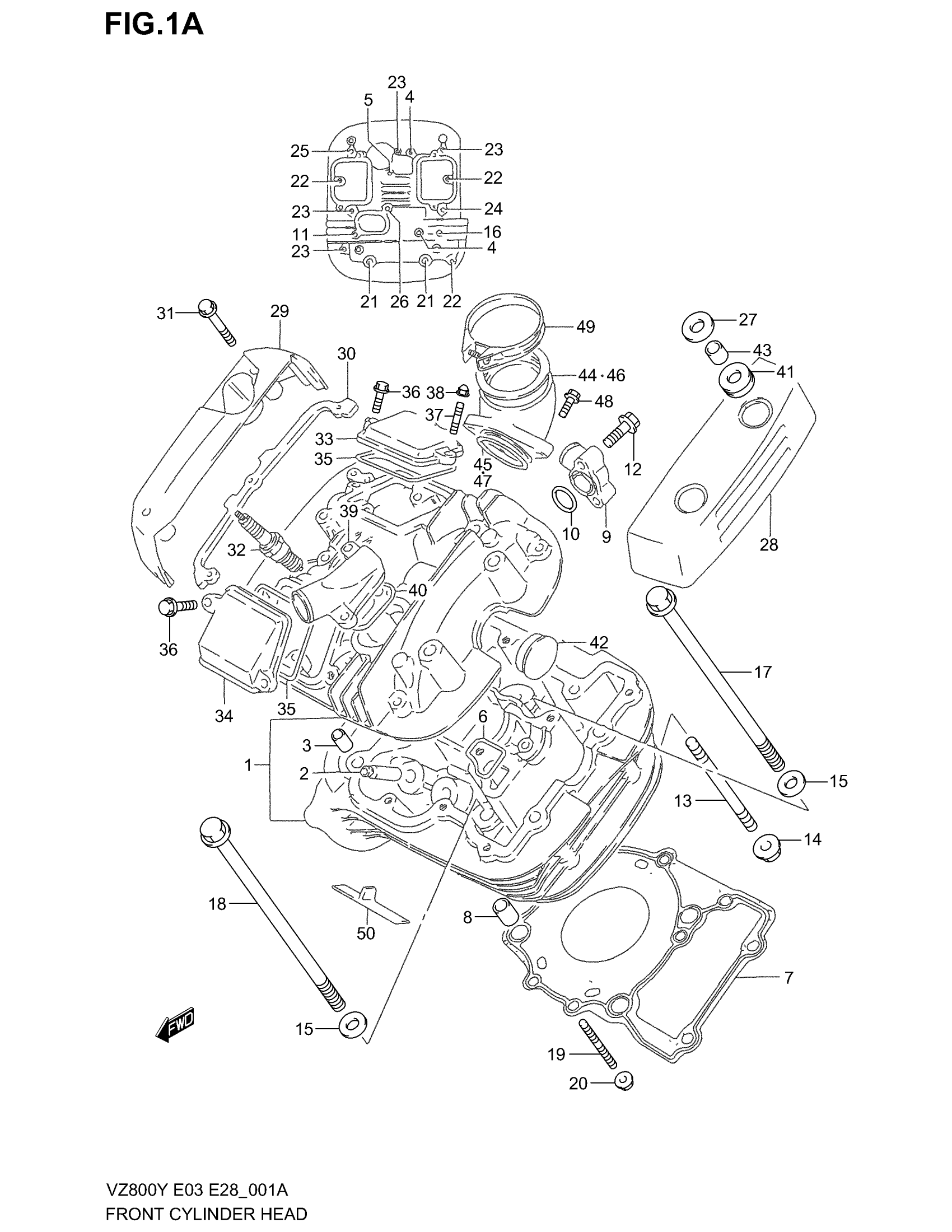

2003 Suzuki VZ800 Front Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER FRONT | Includes Item(s) 2 - 4

11101-48E60

1
Out of stock

2

PIN

09206-11004

2
Out of stock

3

BOLT (6X50)

09103-06101

2
Out of stock

4

BOLT (6X55)

09103-06102

1
Out of stock

5

GUIDE, VALVE (OS 0.3) | OPT This part replaces 11115-38A71.

11115-41F70

4
Out of stock

6

GASKET

11123-38A00

1
Out of stock

7

GASKET

11141-45C00

1
Out of stock

8

PIN

04211-13189

2
Out of stock

9

UNION, CYLINDER HEAD WATER

11169-45C10

1
Out of stock

10

1

$5.01

In stock

11

BOLT (CHROME) | MODEL V/W/X

01550-06207

1
Out of stock

11

BOLT | MODEL Y/K1/K2/K3 This part replaces 01550-06203.

01550-0620A

1
Out of stock

12

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

2
Out of stock

13

STUD BOLT (8X40)

09108-08144

1
Out of stock

14

NUT (CHROME) | MODEL V/W/X

08316-10087

1
Out of stock

14

NUT | MODEL Y/K1/K2/K3 This part replaces 08316-10083.

08316-1008B

1
Out of stock

15

WASHER (10.5X22X2.3) | MODEL V/W/X/Y/K1/K2 This part replaces 09160-10060.

09160-10039

4
Out of stock

15

WASHER | MODEL K3

09160-10039

4
Out of stock

16

BOLT (8X140)

09103-08040

1
Out of stock

17

BOLT (10X155)

09103-10133

2
Out of stock

18

BOLT (10X165)

09103-10134

2
Out of stock

19

BOLT,STUD This part replaces 01421-06408.

01421-0640A

2
Out of stock

20

NUT (CHROME) | MODEL V/W/X

08316-10067

2
Out of stock

20

NUT | MODEL Y/K1/K2/K3 This part replaces 08316-10063.

08316-1006B

2
Out of stock

21

BOLT (8X245)

09103-08180

2
Out of stock

22

BOLT | MODEL V

01550-06257

3
Out of stock

22

BOLT | MODEL W/X/Y/K1/K2/K3 This part replaces 01550-06253.

01550-0625A

3
Out of stock

23

BOLT (CHROME) | MODEL V/W/X

01550-06307

4
Out of stock

23

BOLT | MODEL Y/K1/K2/K3 This part replaces 01550-06303.

01550-0630A

4
Out of stock

24

BOLT (CHROME) | MODEL V/W/X

07120-06307

1
Out of stock

24

BOLT | MODEL Y/K1/K2/K3 This part replaces 07120-06303.

07120-0630B

1
Out of stock

25

BOLT (CHROME) | MODEL V/W/X

01550-06407

1
Out of stock

25

BOLT | MODEL Y/K1/K2/K3 This part replaces 01550-06403.

01550-0640A

1
Out of stock

26

BOLT (6X55)

09103-06102

1
Out of stock

27

WASHER | MODEL V This part replaces 09160-08098.

09160-08130

2
Out of stock

27

WASHER | MODEL W/X/Y/K1/K2/K3

09160-08130

2
Out of stock

28

CAP, HEAD COVER (F-L/R-R)

11171-48E00

1
Out of stock

29

CAP, HEAD COVER (F-R)

11172-48E00

1
Out of stock

30

CUSHION

11272-38A00

1
Out of stock

31

BOLT

09103-06193

2
Out of stock

32

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

1
Out of stock

32

SPARK PLUG (DENSO,X24EPR-U9)

09482-00335

1
Out of stock

32

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

1
Out of stock

32

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355.

09482-00354

1
Out of stock

32

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

1
Out of stock

32

SPARK PLUG (DENSO,X27EPR-U9) | OPT

09482-00331

1
Out of stock

33

CAP, INSPECTION INTAKE

11175-38A11

1
Out of stock

34

CAP, INSPECTION EXHAUST

11176-38A11

1
Out of stock

35

GASKET

11177-38A00

2
Out of stock

36

BOLT | MODEL V

01547-06207

3
Out of stock

36

..BOLT | MODEL W/X/Y/K1/K2/K3 This part replaces 01547-06203.

01547-0620B

3
Out of stock

37

1

$2.05

In stock

37

STUD BOLT (6X16) | MODEL Y/K1/K2/K3

09108-06102

1
Out of stock

38

NUT (CHROME) | MODEL V/W/X

08313-20067

1
Out of stock

38

NUT | MODEL Y/K1/K2/K3 This part replaces 08313-20063.

08313-2006A

1
Out of stock

39

UNION, WATER OUTLET

11181-45C10

1
Out of stock

40

GASKET

11182-38A00

1
Out of stock

41

CUSHION

09320-13015

2
Out of stock

42

PLUG

09241-30004

1
Out of stock

43

BUSH

09301-08007

2
Out of stock

45

O-RING (D:2.4,ID:39.7) | MODEL V This part replaces 09280-40003.

09280-40020

1
Out of stock

45

O-RING (D:2.4,ID:39.7) | MODEL W/X/Y This part replaces 09280-40010.

09280-40020

1
Out of stock

47

O-RING (D:2.4,ID:39.7) | MODEL K1/K2/K3 This part replaces 09280-40010.

09280-40020

1
Out of stock

48

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

49

CLAMP

09402-52501

1
Out of stock

50

PLATE, HEAD COVER REAR

11179-38A00

1
Out of stock
