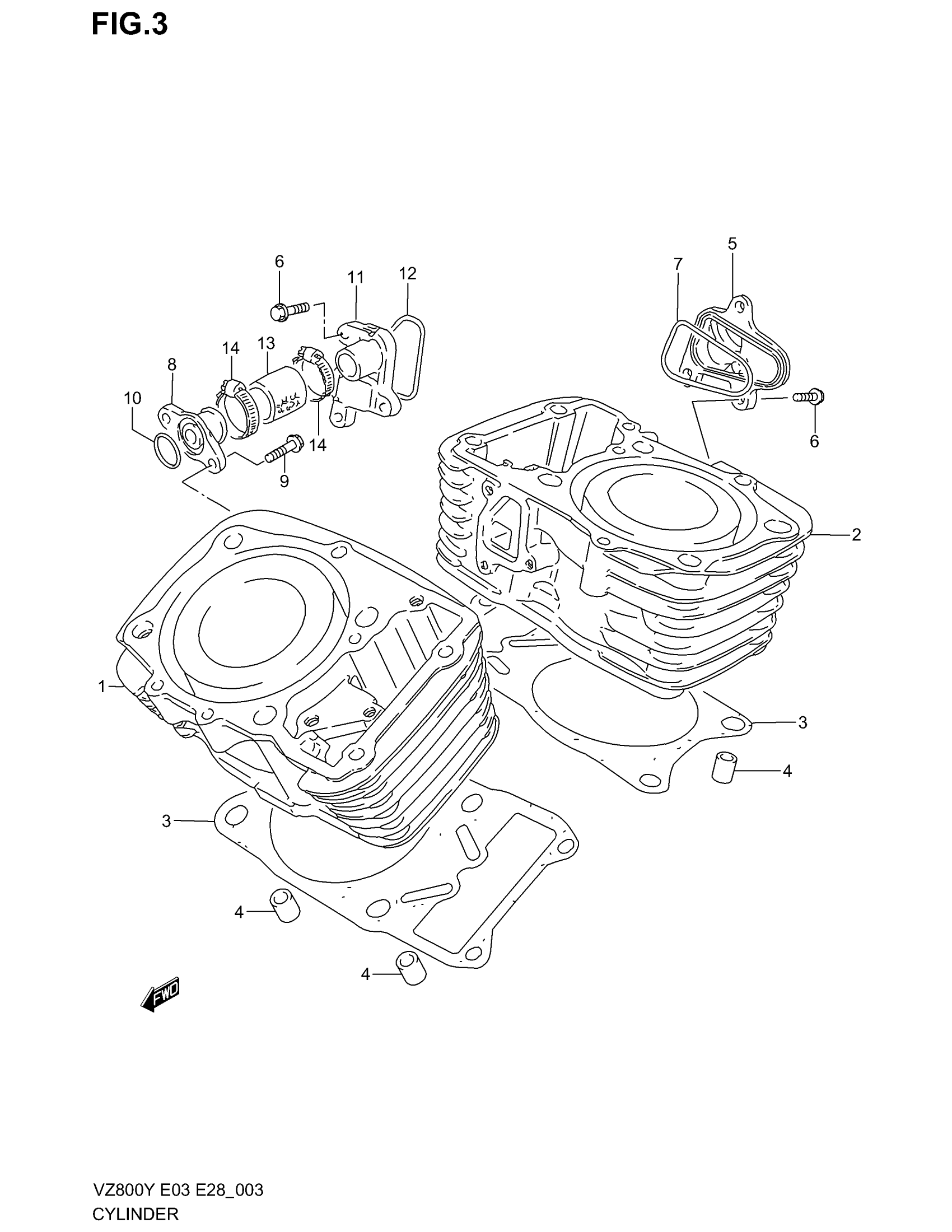

Suzuki VZ800 (2003) CYLINDER Diagram

#

Description
Price

1

CYLINDER, FRONT | MODEL V/W/X This part replaces 11210-48E50.

11210-48E50-0F0

Unavailable

1

CYLINDER, FRONT | MODEL Y/K1/K2/K3

11210-48E50-0F0

Unavailable

2

CYLINDER, REAR | MODEL V/W/X This part replaces 11220-48E50.

11220-48E50-0F0

Unavailable

2

CYLINDER, REAR | MODEL Y/K1/K2/K3

11220-48E50-0F0

Unavailable

3

GASKET

11241-45C20

$17.17

4

PIN

04211-13189

$2.19

5

CHAMBER, WATER INLET

11237-48E00

Unavailable

6

BOLT (CHROME) | MODEL V

01547-06207

$2.01

6

..BOLT | MODEL W/X/Y/K1/K2/K3 This part replaces 01547-06203.

01547-0620B

$2.43

7

O RING

11247-38A00

$3.35

8

UNION, WATER INLET This part replaces 11235-45C10.

11235-41F00

$28.80

9

BOLT (CHROME) | MODEL V

01547-06167

$1.64

9

BOLT | MODEL W/X/Y/K1/K2/K3 This part replaces 01547-06163.

01547-0616B

$2.43

10

O RING (D:2.4,ID:15.8)

09280-16005

$2.24

11

CHAMBER, WATER OUTLET

11236-45C10

Unavailable

12

O RING

11246-38A00

$6.00

13

HOSE, CYLINDER JOINT | MODEL V This part replaces 17853-28C20.

17851-01A00

$24.93

13

HOSE, RADIATOR JOINT NO.1 | MODEL W/X/Y/K1/K2/K3

17851-01A00

$24.93

14

CLAMP

09402-28511

$6.21
