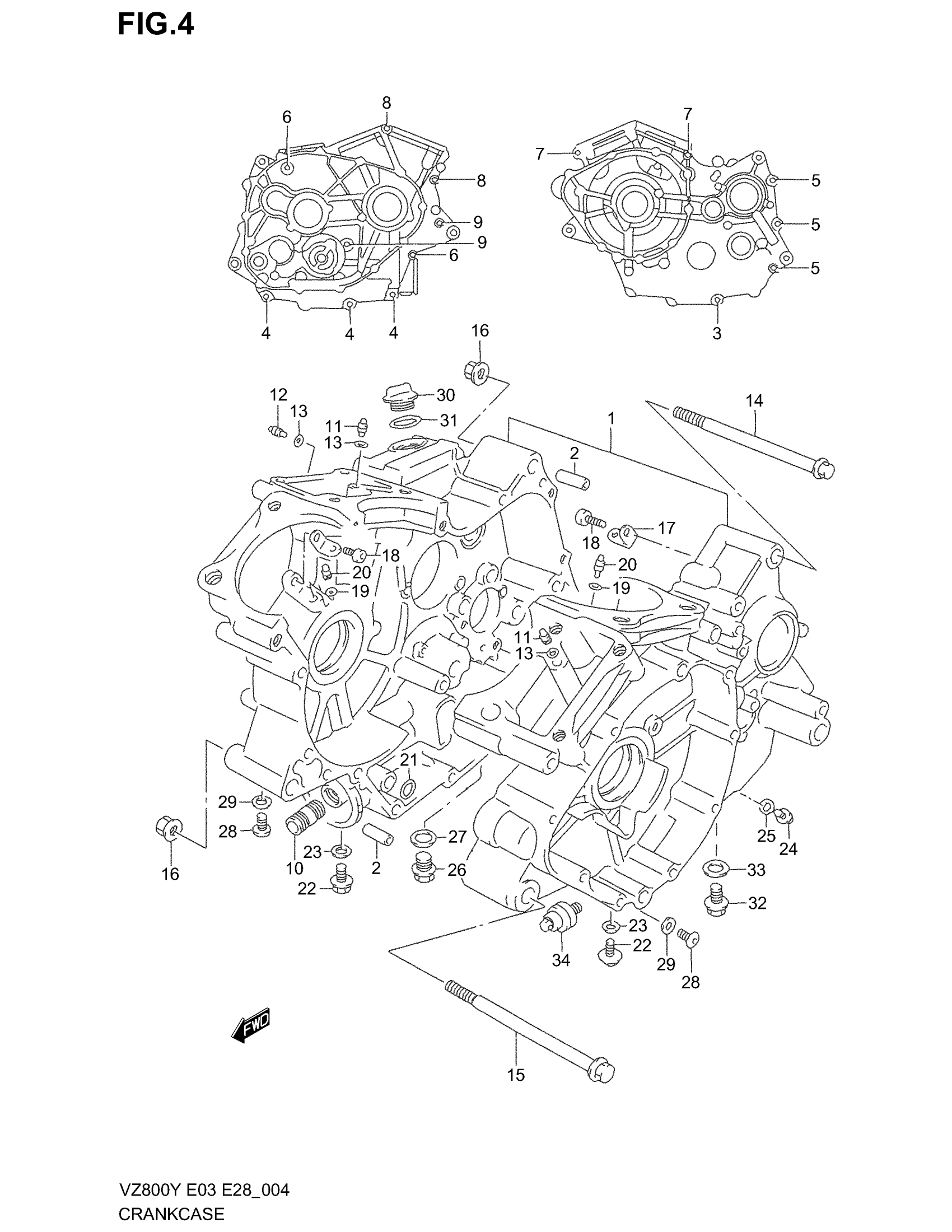

Suzuki VZ800 (2003) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 13

11300-48841

Unavailable

2

PIN

11319-33E00

Unavailable

3

BOLT

01550-08457

$4.35

4

BOLT

01550-08557

$3.37

5

BOLT

01550-08607

$3.54

6

BOLT (8X70) This part replaces 01550-08703.

01550-0870B

Unavailable

7

BOLT (8X105)

09103-08165

Unavailable

8

BOLT (8X160)

09103-08167

Unavailable

9

BOLT (8X80)

09103-08216

Unavailable

10

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.74

11

JET, OIL GALLERY

09493-36004

$18.33

12

JET, OIL GALLERY MISSION

09493-80005

$17.57

13

O RING (D:1.2,ID:4)

09280-04004

$1.76

14

BOLT (10X143)

09103-10241

Unavailable

15

BOLT (10X155)

09103-10146

Unavailable

16

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.31

17

PLATE, PISTON COOLING JET

16438-48E00

Unavailable

18

BOLT (6X12) | %E.NO.119465 This part replaces 09106-06055.

09106-06075

$2.58

18

BOLT (6X12) | E.NO.119466%

09106-06075

$2.58

19

O RING (D:1.2,ID:4)

09280-04004

$1.76

20

JET, PISTON COOLING

09493-80009

$22.52

21

O RING (D:1.9,ID:12.6)

09280-12009

$2.95

22

BOLT | MODEL V/W/X/Y

01550-08127

$2.15

22

BOLT (8X12) | MODEL K1/K2/K3 This part replaces 01550-08123.

01550-0812A

$2.38

23

GASKET

09168-08015

$2.80

24

BOLT | MODEL V

01550-06107

$3.05

24

BOLT | MODEL W/X/Y/K1/K2/K3 This part replaces 01550-06103.

01550-0610A

$2.01

25

GASKET (5.8X11X1.2) | MODEL V/W

09168-06024

$2.19

25

GASKET (5.8X13X1.2) | MODEL X/Y/K1/K2/K3

09168-06023

$2.09

26

PLUG | MODEL V

09248-16008

$6.22

26

PLUG | MODEL W/X/Y/K1/K2/K3

09248-16012

$4.32

27

GASKET

09168-16002

$1.97

28

BOLT | MODEL V/W/X/Y

01550-08127

$2.15

28

BOLT (8X12) | MODEL K1/K2/K3 This part replaces 01550-08123.

01550-0812A

$2.38

29

GASKET

09168-08015

$2.80

30

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$6.97

31

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

32

PLUG, OIL DRAIN

09247-12106

$2.80

33

GASKET

09168-12002

$1.63

34

SWITCH ASSY,OIL PRESSURE | MODEL V/W/X/Y This part replaces 37820-33D00.

37820-33D11

$27.58

34

SWITCH ASSY,OIL PRESSURE | MODEL K1/K2/K3 This part replaces 37820-33D10.

37820-33D11

$27.58
