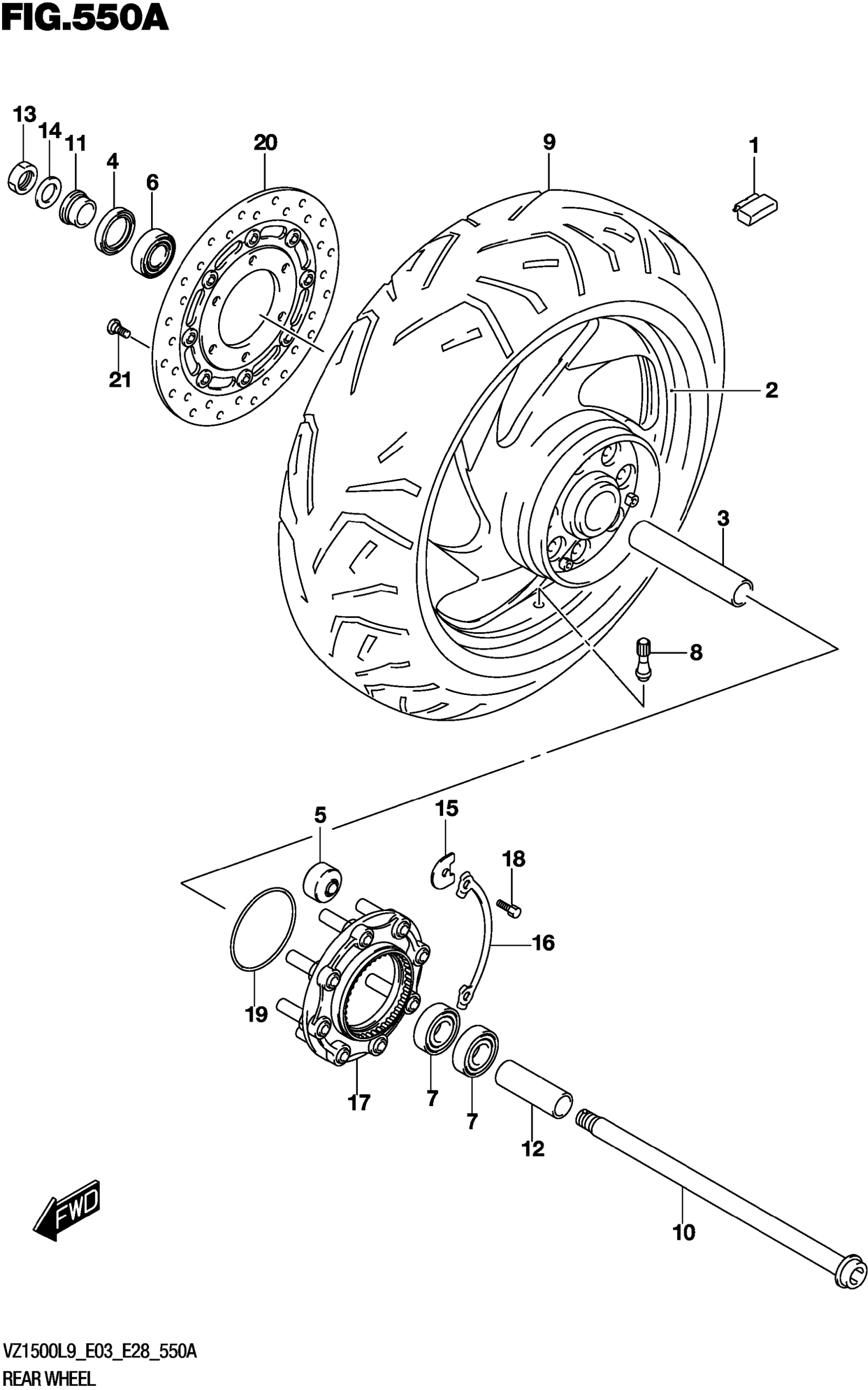

Suzuki VZ1500L9 (2019) REAR WHEEL Diagram

#

Description
Price

1-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

1-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

1-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

2-1

WHEEL

64111-40H00-019

$1,269.72

2-2

WHEEL,REAR (RED)

64111-40H00-QGY

Unavailable

3

SPACER

64731-40H00

$46.98

4

.SEAL,OIL (32X52X7)

09285-32004

$7.42

5

BUSH (12X41X34)

09319-12019

$12.42

6

.BEARING (25X52X15) | RH

09262-25186

$40.52

7

BEARING (25X52X15) | LH

08143-62057

$22.79

8

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.46

9

TIRE

65110-40H00

Unavailable

9

TIRE

65110-40H00

Unavailable

10

AXLE,REAR

64711-48G00

$242.02

11

SPACER,REAR AXLE RH

64741-48G00

$29.88

12

SPACER,REAR AXLE LH

64772-48G00

$45.40

13

NUT

09159-22007

$17.84

14

WASHER (22X35X2)

09160-22081

$2.82

15

WASHER,THRUST

64677-48G10

$8.37

16

WASHER,REAR HUB DRIVEN JOINT

64679-48G00

$7.10

17

JOINT ASSY,REAR HUB DRIVEN

64680-48G00

$425.25

18

BOLT (6X16)

09119-06049

$1.63

19

O-RING (D:2.4,ID:79.8)

09280-80001

$3.64

20

DISC,RR BRAKE

69210-10F60

$322.53

21

BOLT (8X21)

09106-08160

$3.32
