2019 Suzuki VZ1500L9 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2019 Suzuki VZ1500L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

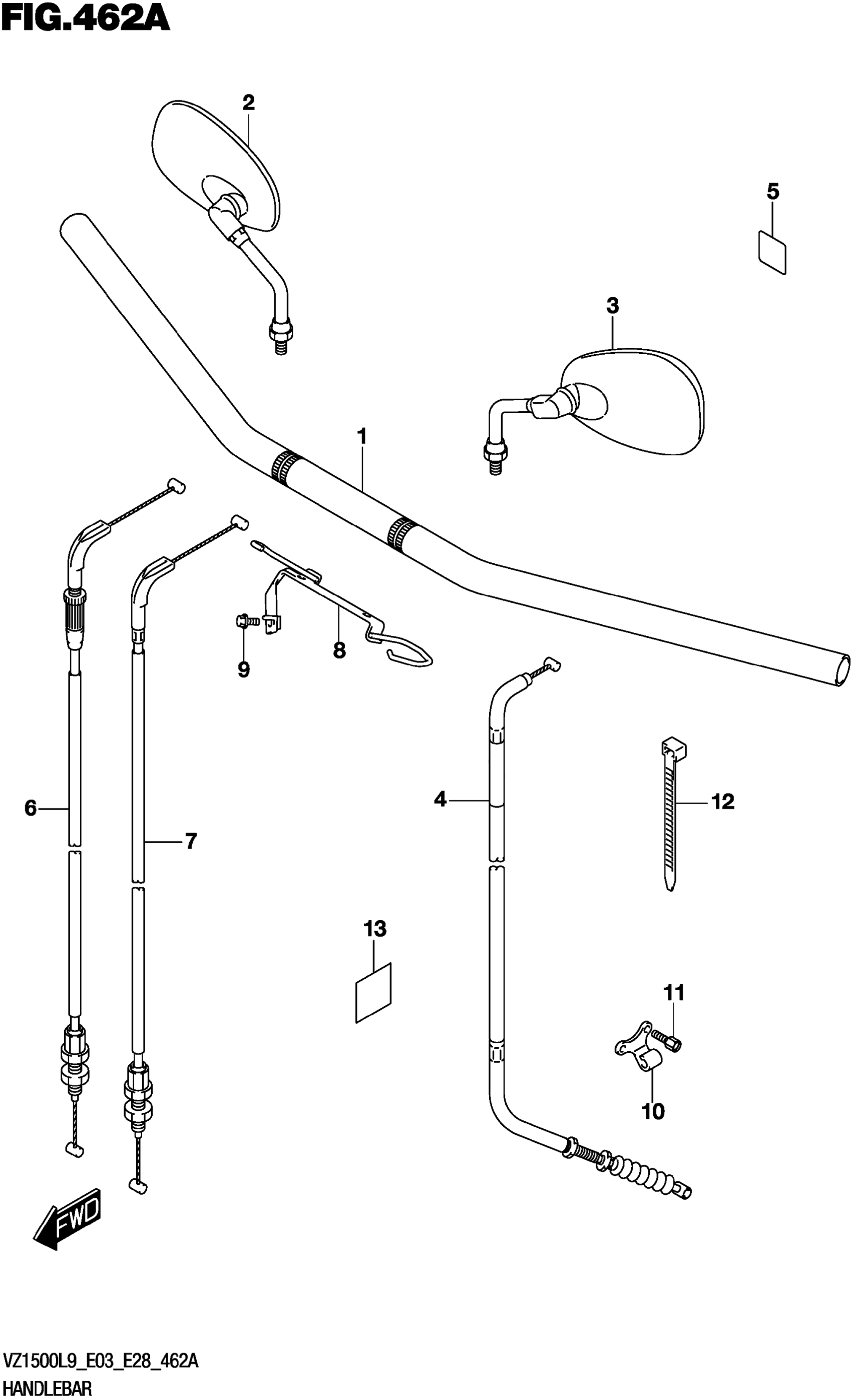

2019 Suzuki VZ1500L9 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-40H10

1
Out of stock

2

1

$171.78

In stock

3

1

$170.95

In stock

4

CABLE ASSY

58200-40H00

1
Out of stock

5

PROTECTOR (25X25X0.2)

87873-56K50

1
Out of stock

6

CABLE ASSY

58300-40H00

1
Out of stock

7

CABLE ASSY

58300-40H10

1
Out of stock

8

GUIDE

58620-40H00

1
Out of stock

9

BOLT

01547-0612B

2
Out of stock

10

STOPPER

58634-40H00

1
Out of stock

11

BOLT

01547-0612A

2
Out of stock

12

CLAMP (L:190)

09407-19401

1
Out of stock

13

PROTECTOR,WIRING HARNESS (30X

36611-41F00

1
Out of stock

13

PROTECTOR,WIRING HARNESS (30X

36611-41F00

1
Out of stock
