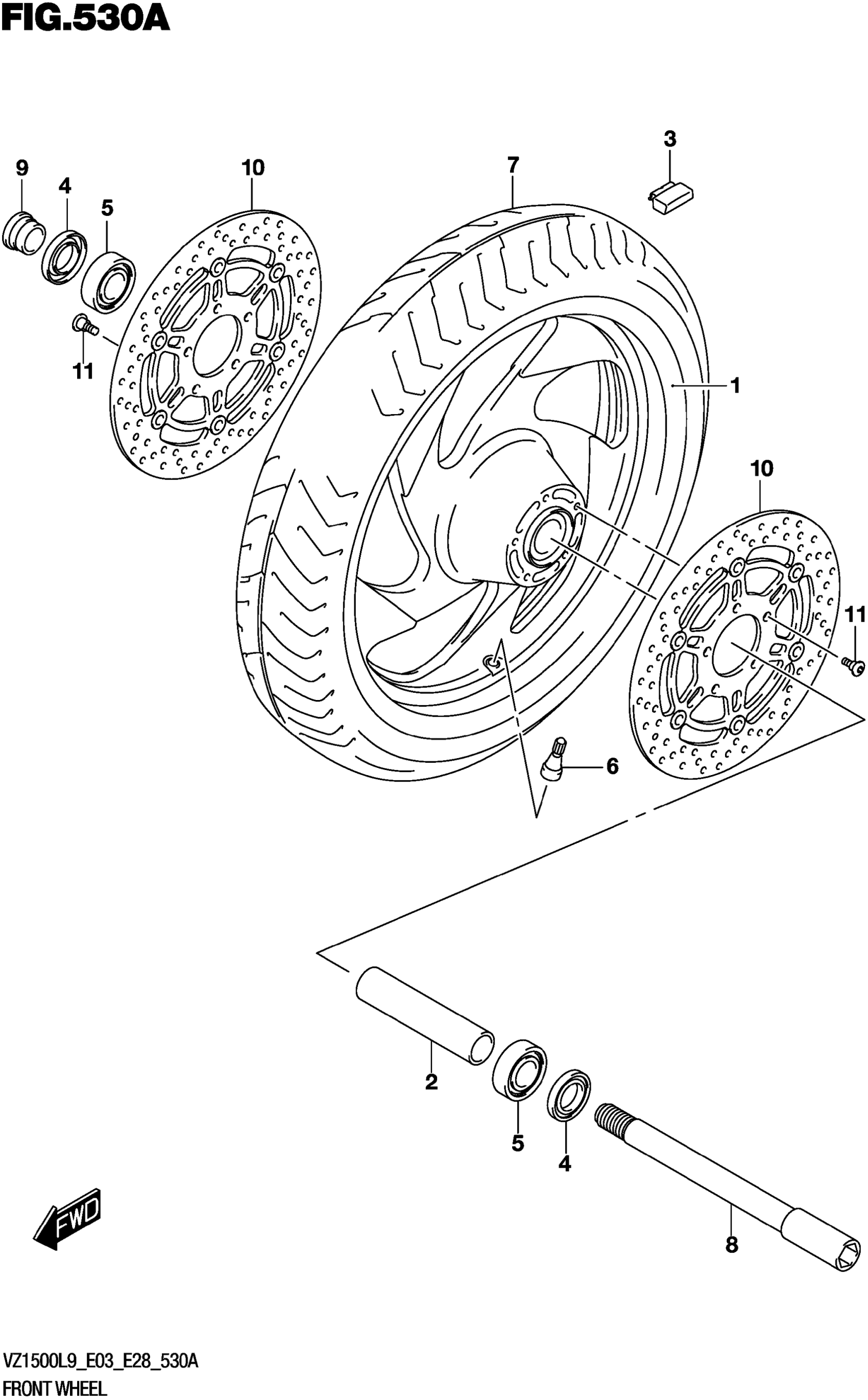

Suzuki VZ1500L9 (2019) FRONT WHEEL Diagram

#

Description
Price

1-1

WHEEL

54111-40H00-019

Unavailable

1-1

WHEEL

54111-40H00-019

Unavailable

1-2

WHEEL,FRONT (RED)

54111-40H00-QGY

$982.03

2

SPACER,FRONT WHEEL BEARING

54731-48G00

$74.07

3-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

3-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

3-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

4

.SEAL,OIL (32X52X7)

09285-32004

$7.42

5

.BEARING (25X52X15)

09262-25186

$40.52

6

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.46

6

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.46

7

TIRE

55110-40H00

Unavailable

7

TIRE

55110-40H00

Unavailable

9

SPACER,FRONT AXLE LH

54741-48G00

$35.63

10

DISC

59210-08F11

$515.82

11

BOLT (8X21)

09106-08160

$3.32
