2009 Suzuki VZ1500 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2009 Suzuki VZ1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

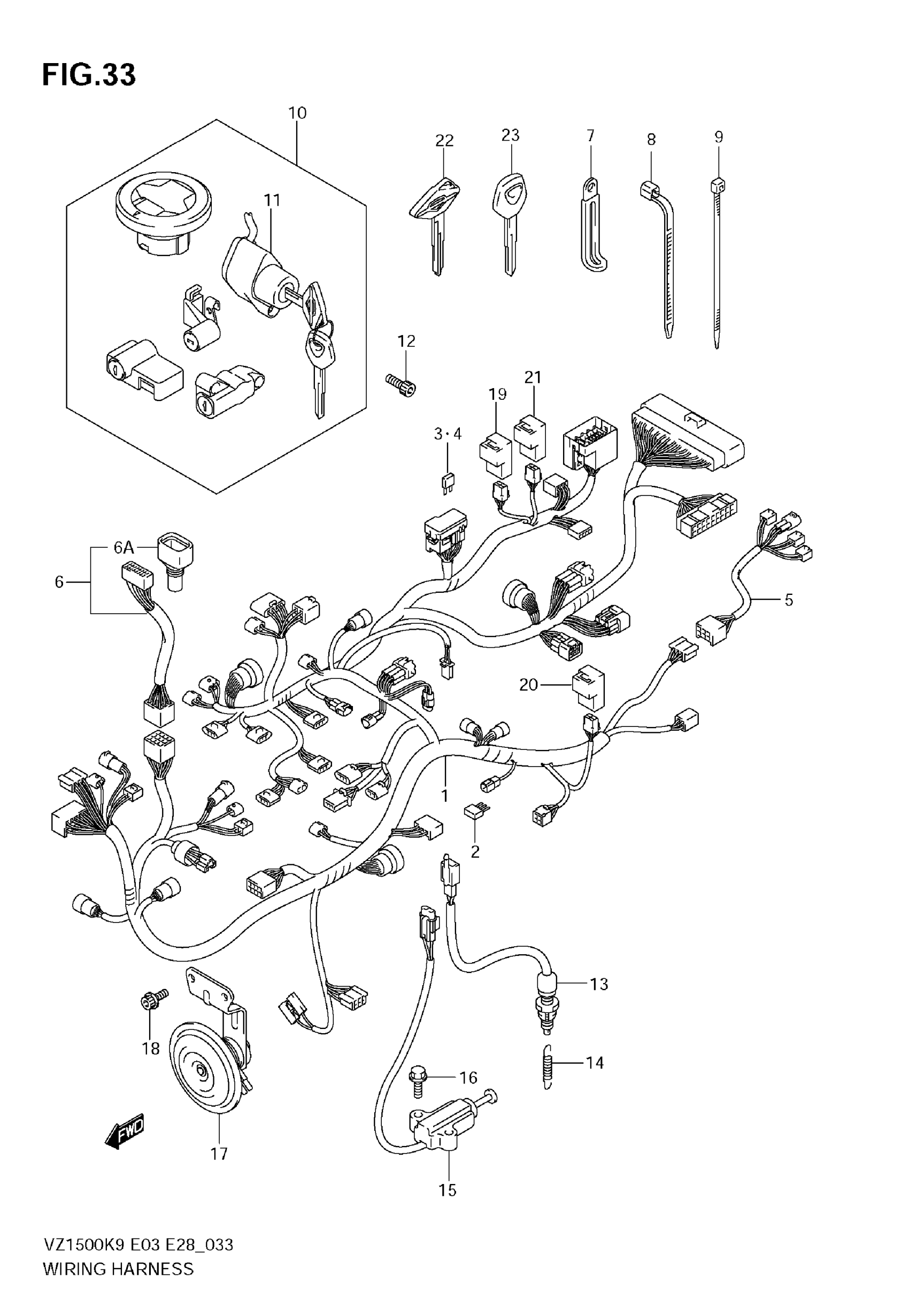

2009 Suzuki VZ1500 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-40H30

1
Out of stock

1

HARNESS,WIRING | E33; Includes Item(s) 2 - 4 This part replaces 36610-40H40.

36610-40H41

1
Out of stock

2

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

3

FUSE (10A)

09481-10501

4
Out of stock

4

FUSE (15A)

09481-15501

2
Out of stock

5

WIRE, REAR CORD

36858-40H00

1
Out of stock

6

WIRE, METER LEAD | Includes Item(s) 6A

36859-40H00

1
Out of stock

6A

BOOT

36618-33E00

1
Out of stock

7

CLAMP (L:45)

09404-06429

3
Out of stock

8

CLAMP (L:125)

09407-14403

3
Out of stock

8

CLAMP (L:190)

09407-19401

4
Out of stock

9

CLAMP (L:145)

09407-14407

2
Out of stock

10

LOCK SET | Includes Item(s) 11

37000-40830

1
Out of stock

11

SWITCH ASSY, IGNITION

37110-40H30

—
Out of stock

12

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock

13

SWITCH ASSY, STOP LAMP

37740-19F00

1
Out of stock

14

SPRING, STOP LAMP

09443-06077

1
Out of stock

15

SWITCH ASSY,SID This part replaces 37840-22H00.

37840-22H01

1
Out of stock

16

SCREW

01547-0625A

2
Out of stock

17

HORN ASSY

38500-40H00

1
Out of stock

18

BOLT, HORN

07120-0612B

2
Out of stock

19

RELAY ASSY, FUEL PUMP

38740-24X50

1
Out of stock

20

RELAY ASSY, FAN MOTOR

38740-24X50

1
Out of stock

21

RELAY ASSY, HEADLAMP

38740-24A00

1
Out of stock

22

KEY, BLANK (BOULEVARD) | OPT

37146-10F00

1
Out of stock

23

KEY, BLANK | OPT

37146-48E10

1
Out of stock
