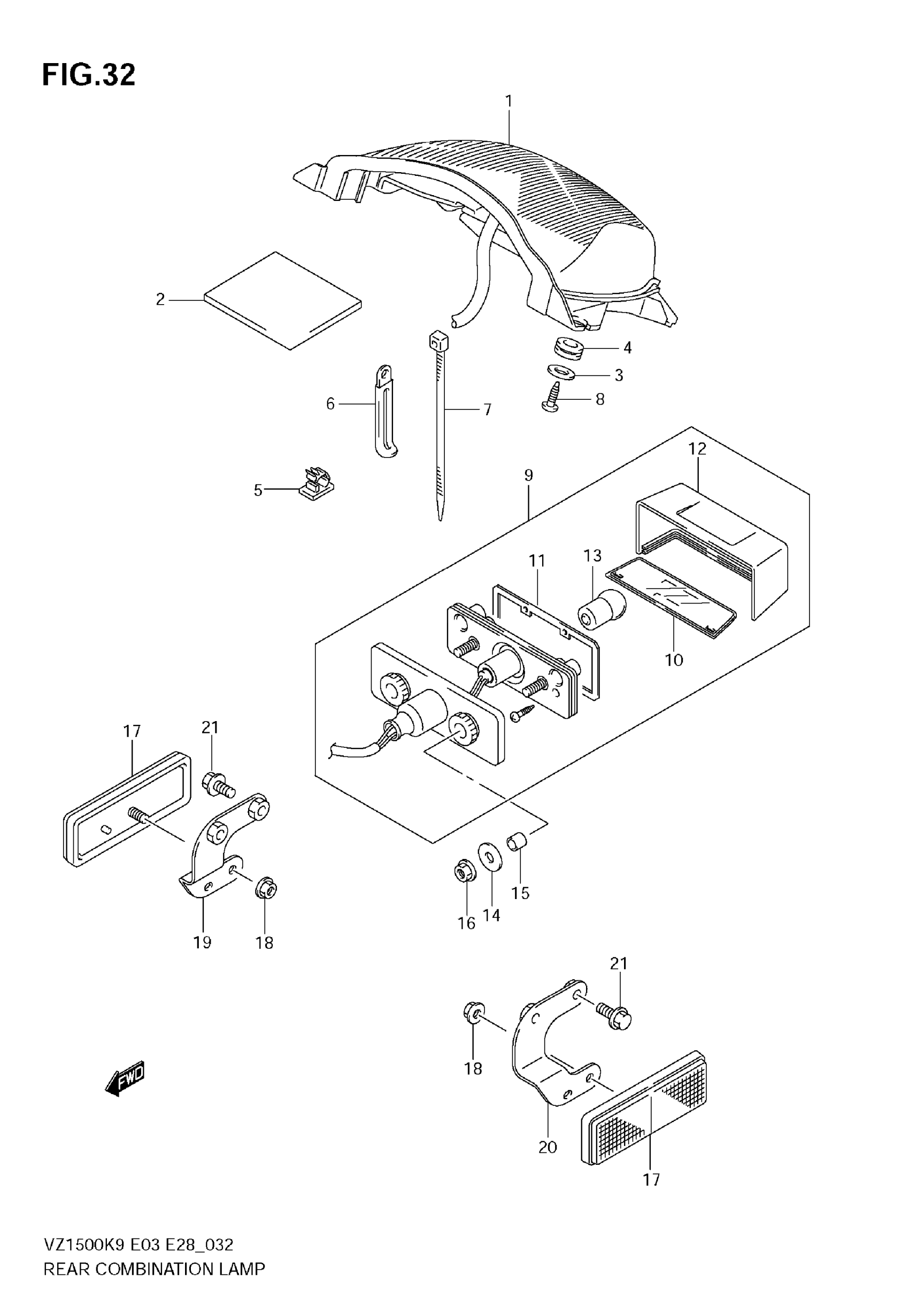

Suzuki VZ1500 (2009) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION This part replaces 35710-40H30.

35710-40H00

$507.95

2

CUSHION,HELMET BOX (60X60X3.0

92213-33G00

$7.95

3

WASHER (5.5X20X1.2)

09160-05501

$1.86

4

CUSHION This part replaces 09320-10054.

09320-10073

$2.12

5

CLAMP This part replaces 09403-07315.

09403-04310

$5.82

6

CLAMP (L:45)

09404-06429

$1.82

6

CLAMP(L:62) This part replaces 09404-10204.

09404-10206

$2.57

7

CLAMP (L:145)

09407-14407

$2.80

8

SCREW, REAR COMB

03541-0512A

$1.37

9

LAMP ASSY, LICENSE | Includes Item(s) 10 - 13 This part replaces 35910-41G00.

35910-41G02

$83.48

10

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

$14.98

11

GASKET

35913-41G00

$16.07

12

COVER, LICENSE LAMP

35917-41G00

$39.85

13

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

14

WASHER, LICENSE LAMP | 6.5X20X1.2

09160-06077

$1.89

15

SPACER, LICENSE LAMP | 6.5X9X8

09180-06261

$1.89

16

NUT, LICENSE LAMP

08316-1006A

$2.19

17

REFLECTOR ASSY, REAR SIDE

35970-07F01

$19.11

18

NUT, REAR SIDE RR

08316-1005A

$2.19

19

BRACKET, RR SIDE RR, R

35975-40H00

Unavailable

20

BRACKET, RR SIDE RR, L

35976-40H00

Unavailable

21

SCREW, RR SIDE RR BRK

02162-0612A

$1.93
