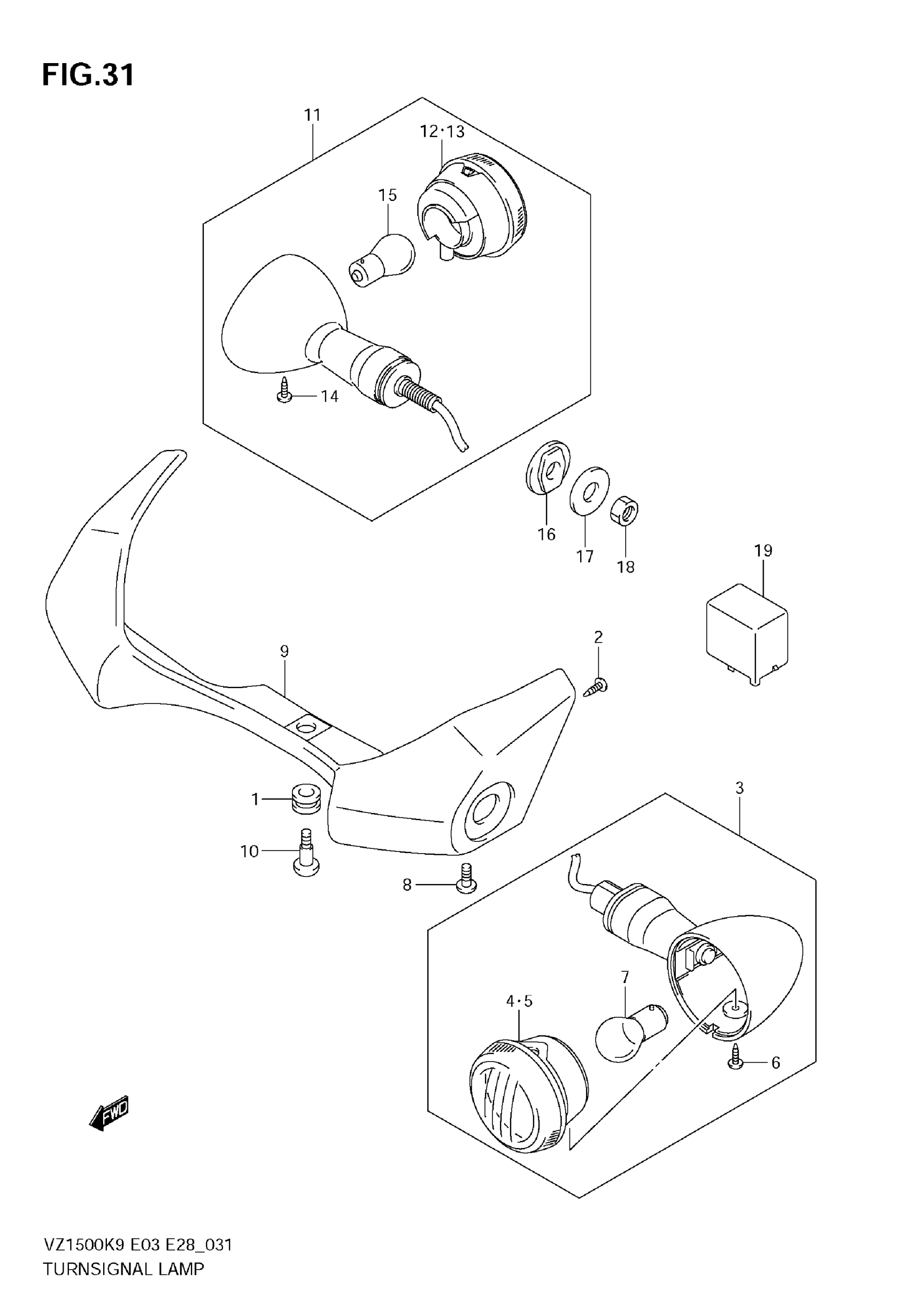

Suzuki VZ1500 (2009) TURN SIGNAL LAMP Diagram

#

Description
Price

1

CUSHION, FR COVER

09320-09016

$2.01

2

SCREW

03541-0510A

$1.48

3

LAMP ASSY, FR TURN, R

35601-38AF0

$151.52

3

LAMP ASSY, FR TURN, L | Includes Item(s) 4 - 7

35602-38AF0

$112.28

4

LENS | FOR RH

35610-38AA0

$30.10

5

LENS | FOR LH

35630-38AA0

$30.53

6

SCREW (4X10)

35623-38AA0

$4.89

7

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.26

8

SCREW, FR TURN

02142-0612A

$1.41

9

STAY, FR TURN

35641-40H00

$120.95

10

SCREW, FR COVER (6X16)

09139-06146

$2.80

11

LAMP ASSY,RR TU This part replaces 35603-38AG0.

35603-38AG1

$126.07

11

LAMP ASSY,RR TU | Includes Item(s) 12 - 15 This part replaces 35604-38AG0.

35604-38AG1

$113.63

12

LENS | FOR RH

35630-38AE1

$30.53

13

LENS | FOR LH

35610-38AE1

$30.10

14

SCREW (4X10)

35623-38AA0

$4.89

15

BULB (12V21W)

09471-12045

$3.06

16

SPACER, RR

35695-17C00

$3.86

17

WASHER (10.5X30X2.3)

09160-10501

$2.40

18

NUT

08310-0010A

$1.94

19

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$85.27
