2009 Suzuki VZ1500 Seat Diagram

← All diagrams

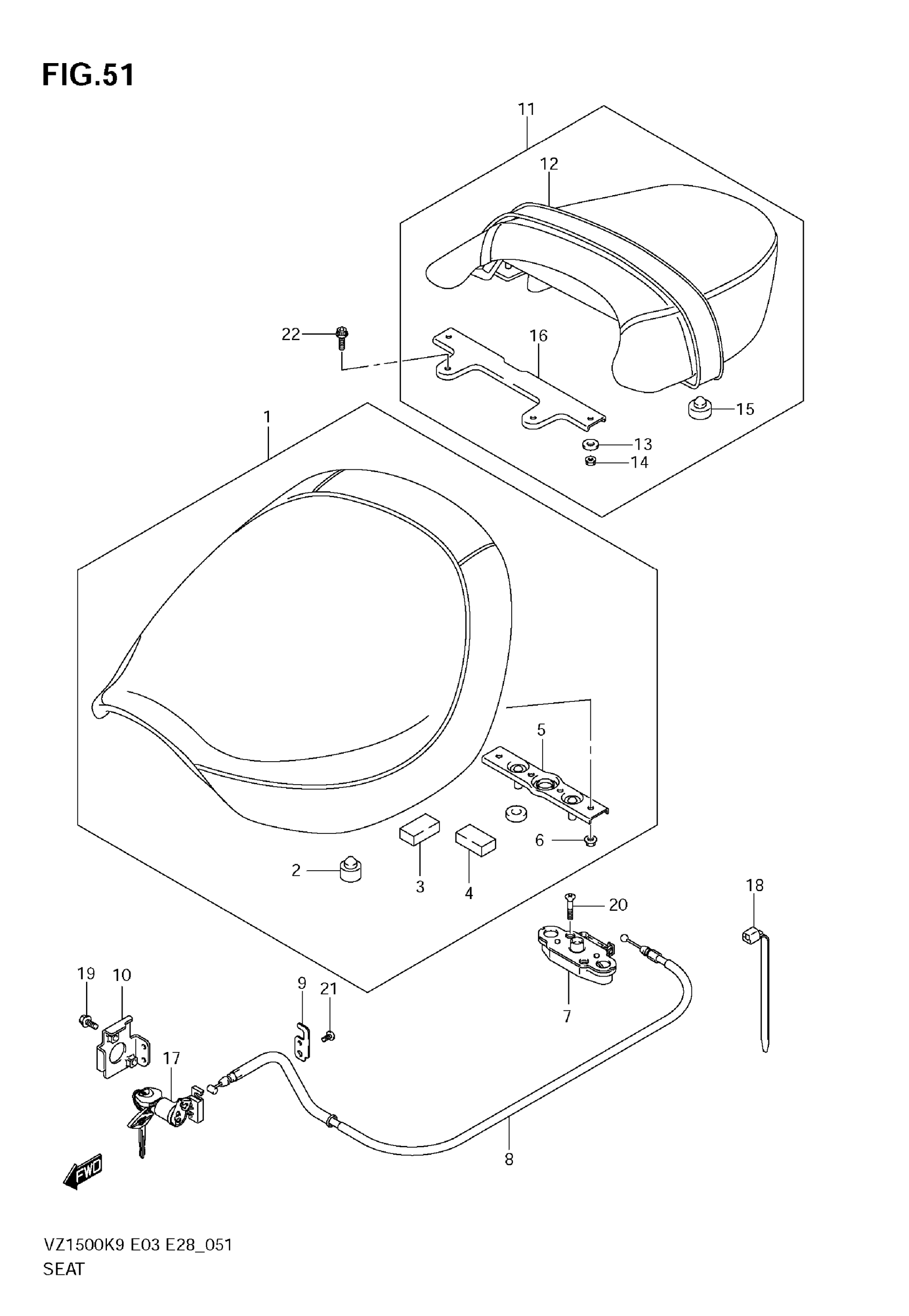

Find the part on the Seat diagram for your 2009 Suzuki VZ1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VZ1500 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | Includes Item(s) 2 - 6 This part replaces 45100-40H00-DCG.

45100-40H11-DCG

1
Out of stock

2

CUSHION

09321-10011

7
Out of stock

3

CUSHION

45148-40H00

1
Out of stock

4

CUSHION

45149-40H00

2
Out of stock

5

STRIKER This part replaces 45290-42F01.

45290-42F02

1
Out of stock

6

NUT

08319-3106A

2
Out of stock

7

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

8

CABLE, SEAT LOCK

45280-40H00

1
Out of stock

9

PLATE, SEAT LOCK

45288-40H00

1
Out of stock

10

BRACKET, SEAT LOCK

45289-40H00

1
Out of stock

11

SEAT ASSY,PILLI | Includes Item(s) 12 - 16 This part replaces 45300-40H00-48H.

45300-40H01-48H

1
Out of stock

12

BAND ASSY (BLACK)

45180-40H00-48H

1
Out of stock

13

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

14

NUT

08319-3106A

2
Out of stock

15

CUSHION

09321-10002

4
Out of stock

16

BRACKET

45315-40H00

1
Out of stock

17

LOCK ASSY, SEAT

95700-31841

1
Out of stock

18

CLAMP, SEAT LOCK CABLE

09407-19401

1
Out of stock

19

BOLT, SEAT LOCK BRKT

01547-0616A

2
Out of stock

20

SCREW, SEAT SUPPORT BRK

02122-0630A

2
Out of stock

21

SCREW, SEAT LOCK PLATE

02142-0512A

2
Out of stock

22

BOLT, PILLION SEAT

07120-0616A

2
Out of stock
