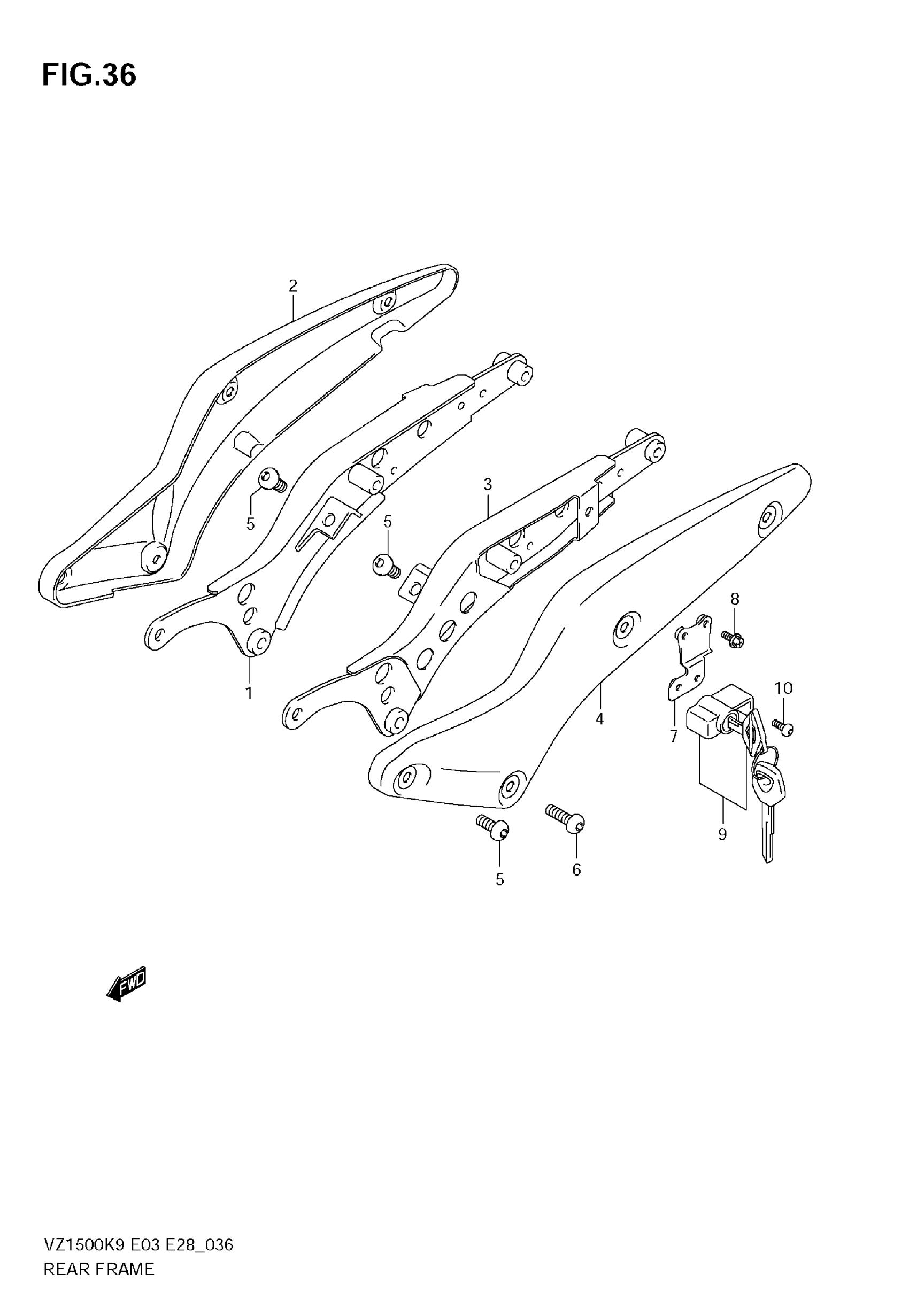

Suzuki VZ1500 (2009) REAR FRAME Diagram

#

Description
Price

1

FRAME, REAR RH

42650-40H00

Unavailable

2

PLATE, REAR FRAME RH

42651-40H00

Unavailable

3

FRAME, REAR LH

42660-40H00

Unavailable

4

PLATE, REAR FRAME LH

42661-40H00

$629.05

5

BOLT

09139-10003

$6.34

6

BOLT, LOWER

09139-10005

$10.33

7

BRACKET, LOCK

95710-40H00

Unavailable

8

BOLT, BRACKET

02162-0612A

$1.93

9

LOCK SET HELMET

95700-41821

$171.60

10

SCREW

09139-06089

$3.30
