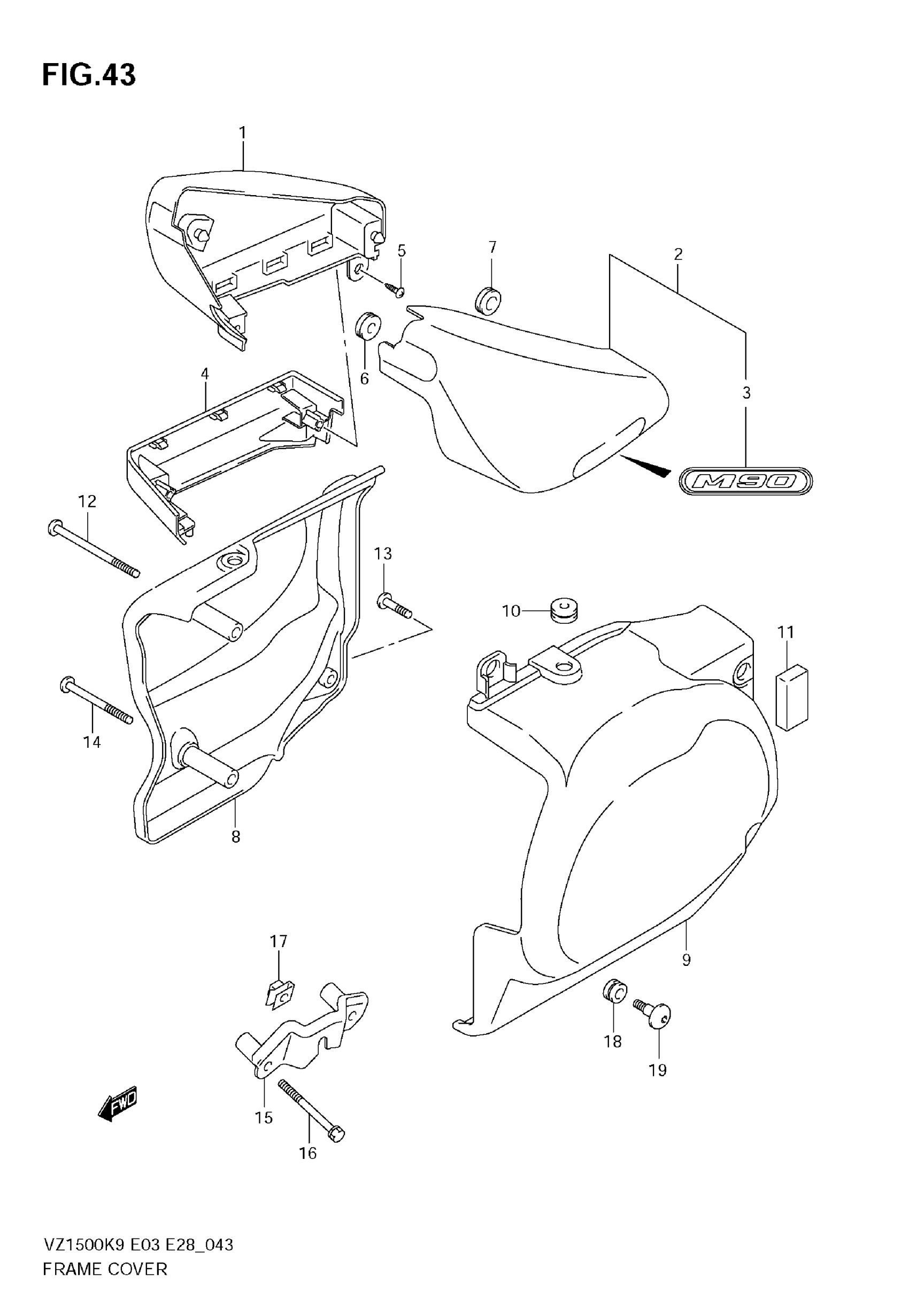

Suzuki VZ1500 (2009) FRAME COVER Diagram

#

Description
Price

1

COVER COMP,SIDE This part replaces 47110-40H00-YAY.

47110-40H01-YAY

$278.25

1

COVER,SIDE,R(RE This part replaces 47110-40H00-YHL.

47110-40H01-YHL

$269.63

1

COVER,SIDE,R(NO This part replaces 47110-40H00-YSF.

47111-40H00

$65.53

2

COVER,SIDE,L(BL This part replaces 47210-40H00-YAY.

47210-40H01-YAY

$228.73

2

COVER COMP,SIDE This part replaces 47210-40H00-YHL.

47210-40H01-YHL

$240.42

2

COVER,SIDE,L(BL | Includes Item(s) 3 This part replaces 47210-40H00-YSF.

47210-40H01-YSF

$264.65

3

EMBLEM This part replaces 68131-40H00.

68131-40H01

$38.45

4

COVER, SIDE LOWER RH

47121-40H00

$70.83

5

SCREW

03541-0516A

$1.37

6

CUSHION, FRONT

09320-08049

$3.07

7

CUSHION, REAR

09320-08018

$2.80

8

COVER, LOWER RH

47130-40H00

Unavailable

9

COVER, LOWER LH

47231-40H00

$360.07

10

CUSHION, LOWER

09320-06504

$4.47

11

CUSHION This part replaces 63411-35B00.

51827-01A00

$6.95

12

SCREW, RH FRONT UPPER

47139-40H00

Unavailable

13

SCREW, RH REAR

09139-06028

$3.33

14

SCREW, RH FRONT LOWER

47138-40H00

Unavailable

15

BRACKET, LOWER LH

47250-40H00

Unavailable

16

BOLT

01547-0650A

$2.51

17

NUT

09148-06018

$2.90

18

CUSHION, LH

09320-09016

$1.97

19

SCREW

09139-06126

$3.65
