2009 Suzuki VZ1500 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2009 Suzuki VZ1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

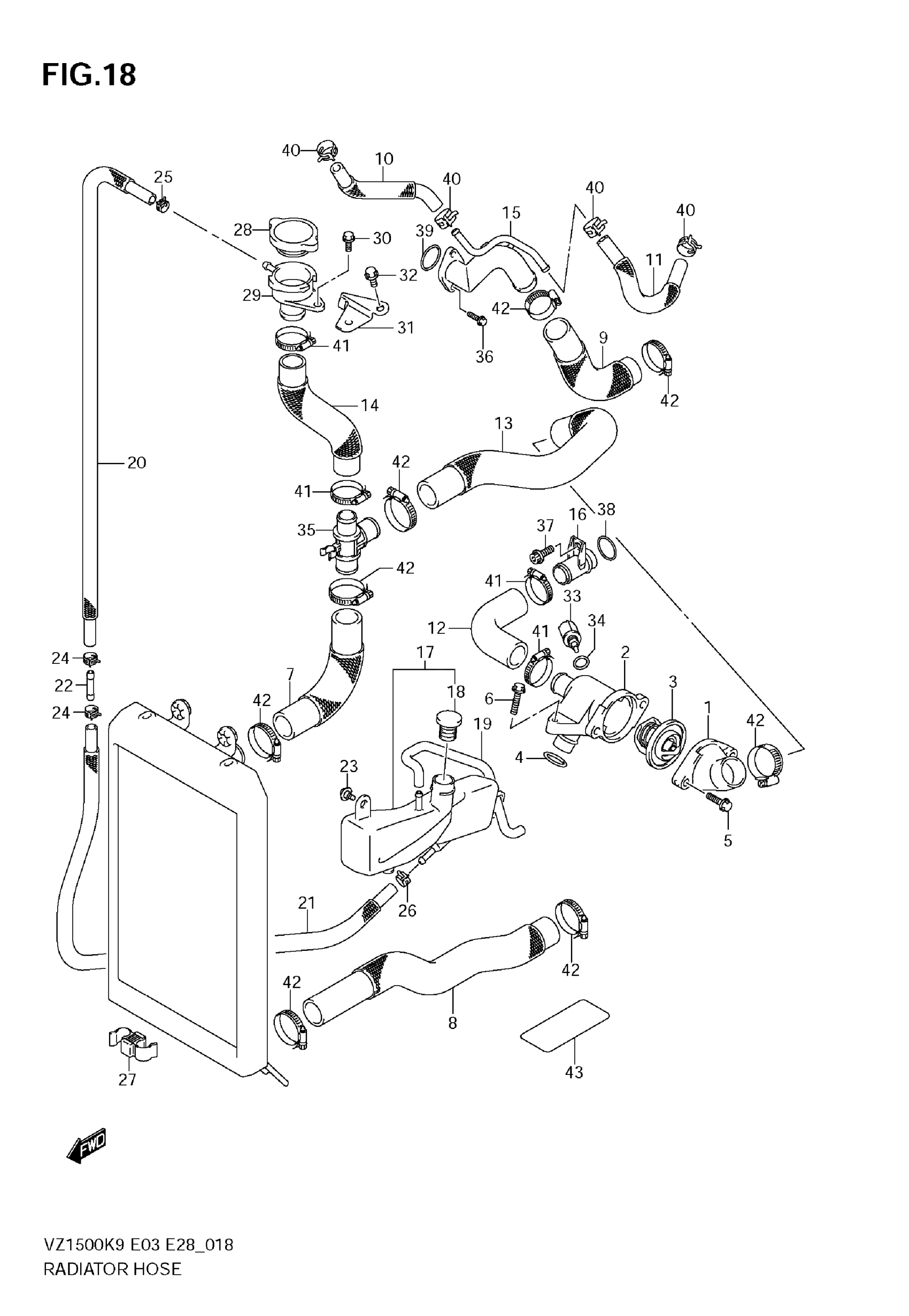

2009 Suzuki VZ1500 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, THERMOSTAT

17661-48G10

1

$33.67

In stock

2

CONNECTOR, THERMOSTAT INLET

17662-40H00

1
Out of stock

3

1

$25.68

In stock

4

O RING

09280-18009

1

$5.64

In stock

5

BOLT

01550-0620A

2
Out of stock

6

BOLT

01547-0625A

1
Out of stock

7

HOSE, RADIATOR INLET

17851-40H00

1
Out of stock

8

HOSE, RADIATOR OUTLET

17852-40H00

1

$56.53

In stock

9

HOSE, CYLINDER INLET

17853-40H00

1
Out of stock

10

HOSE, WATER BYPASS UPPER

17854-40H00

1
Out of stock

11

HOSE, WATER BYPASS LOWER

17855-40H00

1
Out of stock

12

HOSE, REAR CYL HEAD OUTLET

17856-40H00

1
Out of stock

13

HOSE, THERMOSTAT OUTLET

17857-40H00

1
Out of stock

14

HOSE, CONDUCTION

17858-40H00

1

$36.42

In stock

15

PIPE, CYL WATER INLET

17860-40H00

1
Out of stock

16

UNION

17890-06G20

1

$14.80

In stock

17

TANK ASSY, RESERVOIR | Includes Item(s) 18

17910-40H00

1
Out of stock

18

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

19

HOSE, TANK OVERFLOW

17982-40H00

1
Out of stock

20

HOSE, TANK INLET NO.1

17981-40H00

1
Out of stock

21

HOSE, TANK INLET NO.2 | L:600!500

09352-50901-600

1
Out of stock

22

JOINT, HOSE

09364-06005

1

$6.22

In stock

23

BOLT (6X12)

09111-06085

1
Out of stock

24

CLIP

09401-08411

3
Out of stock

25

CLIP

09401-10411

1

$3.05

In stock

26

CLAMP

09407-14403

1
Out of stock

27

CLAMP

09407-19401

1
Out of stock

28

CAP

17730-14G00

1
Out of stock

29

CONDUCTION

17791-14G00

1

$26.50

In stock

30

BOLT

01547-0512A

1

$1.61

In stock

31

BRACKET

17792-40H00

1
Out of stock

32

BOLT

01547-0612A

1
Out of stock

33

SENSOR, WATER TEMP

13650-49X00

1
Out of stock

34

GASKET

09168-12017

1
Out of stock

35

JOINT, 3 WAY

17891-48G00

1

$12.83

In stock

36

BOLT

09103-06274

2
Out of stock

37

BOLT

07130-0612A

1
Out of stock

38

O RING

09280-18009

1

$5.64

In stock

39

O RING

09280-26005

1

$2.43

In stock

40

CLIP This part replaces 09401-12409.

09401-12414

4
Out of stock

41

CLAMP

09402-32512

4
Out of stock

42

CLAMP

09402-38512

8

$11.57

In stock

43

TAPE

63131-10F00

1

$15.83

In stock
