2009 Suzuki VZ1500 Frame Head Cover Diagram

← All diagrams

Find the part on the Frame Head Cover diagram for your 2009 Suzuki VZ1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

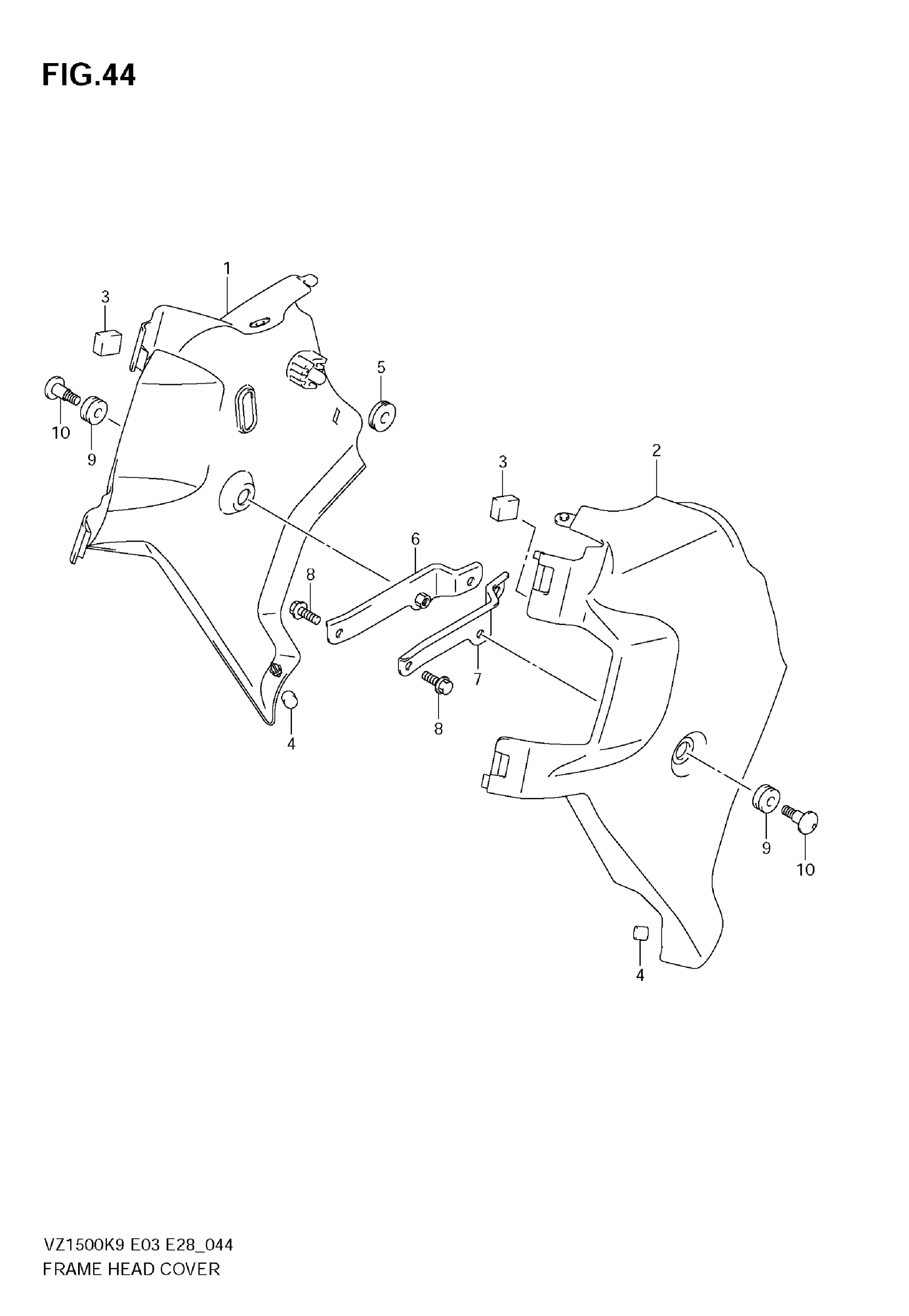

2009 Suzuki VZ1500 Frame Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME HEAD RH (BLACK) This part replaces 47351-40H00.

47351-40H00-019

1
Out of stock

2

COVER, FRAME HEAD LH (BLACK) This part replaces 47361-40H00.

47361-40H00-019

1
Out of stock

3

CUSHION

17798-39G00

5
Out of stock

4

CAP(OD:12.3) This part replaces 09250-12013.

09250-12015

2
Out of stock

5

CUSHION, UPPER

09320-08018

2
Out of stock

6

PLATE, HEAD COVER RH

47370-40H00

1
Out of stock

7

PLATE, HEAD COVER LH

47380-40H00

1
Out of stock

8

BOLT

01547-0616A

4
Out of stock

9

CUSHION

09320-09016

2
Out of stock

10

SCREW

09139-06179

2
Out of stock
