1996 Yamaha Vmax-4 800 (VX800W) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 1996 Yamaha Vmax-4 800 (VX800W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

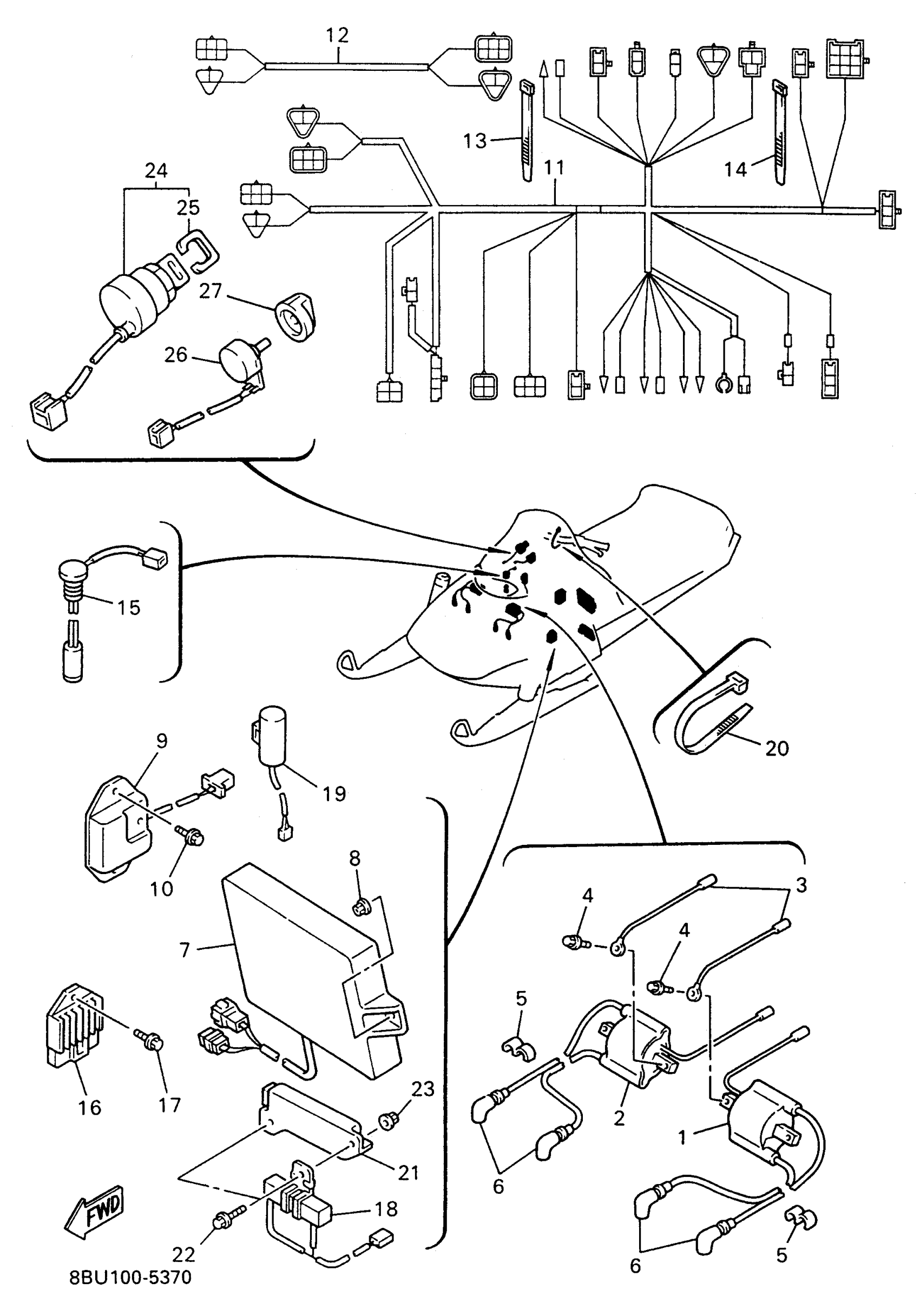

1996 Yamaha Vmax-4 800 (VX800W) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

85T-82310-06-00

1
Out of stock

2

IGNITION COIL ASSY

89A-82320-09-00

1
Out of stock

3

WIRE, SUB-LEAD

87D-82318-00-00

1
Out of stock

4

BOLT, FLANGE DEEP RECESS

95D95-06020-00

1
Out of stock

5

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

6

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

7

C. D. I. UNIT ASSEMBLY

8BU-85540-00-00

1
Out of stock

8

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

9

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

—
Out of stock

10

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

11

WIRE HARNESS ASSEMBLY

8BU-82590-00-00

1
Out of stock

12

WIRE HARNESS ASSEMBLY 2

8BU-82580-00-00

1
Out of stock

13

BAND

341-26397-01-00

1
Out of stock

14

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

15

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

—

$60.48

In stock

16

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

1
Out of stock

17

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

18

RESISTOR ASY

89M-85370-00-00

1
Out of stock

19

CONDENSER, SMOOTHING

1NL-81965-01-00

—
Out of stock

20

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

21

RECTIFIER & REGULAT0R ASSY

1JK-81960-A1-00

—
Out of stock

22

BOLT, WASHER BASED(JA9)

90105-06696-00

—

$6.29

In stock

23

NUT,SELF-LOCKING

95607-06200-00

—

$10.25

In stock

24

MAIN SWITCH ASSY

8AB-82510-01-00

—
Out of stock

25

CAP, KEY

526-82579-00-00

—

$6.72

In stock

26

RESISTOR, VARIABLE

8CR-87283-00-00

1
Out of stock

27

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

1
Out of stock
