1996 Yamaha Vmax-4 800 (VX800W) Steering Gate Diagram

← All diagrams

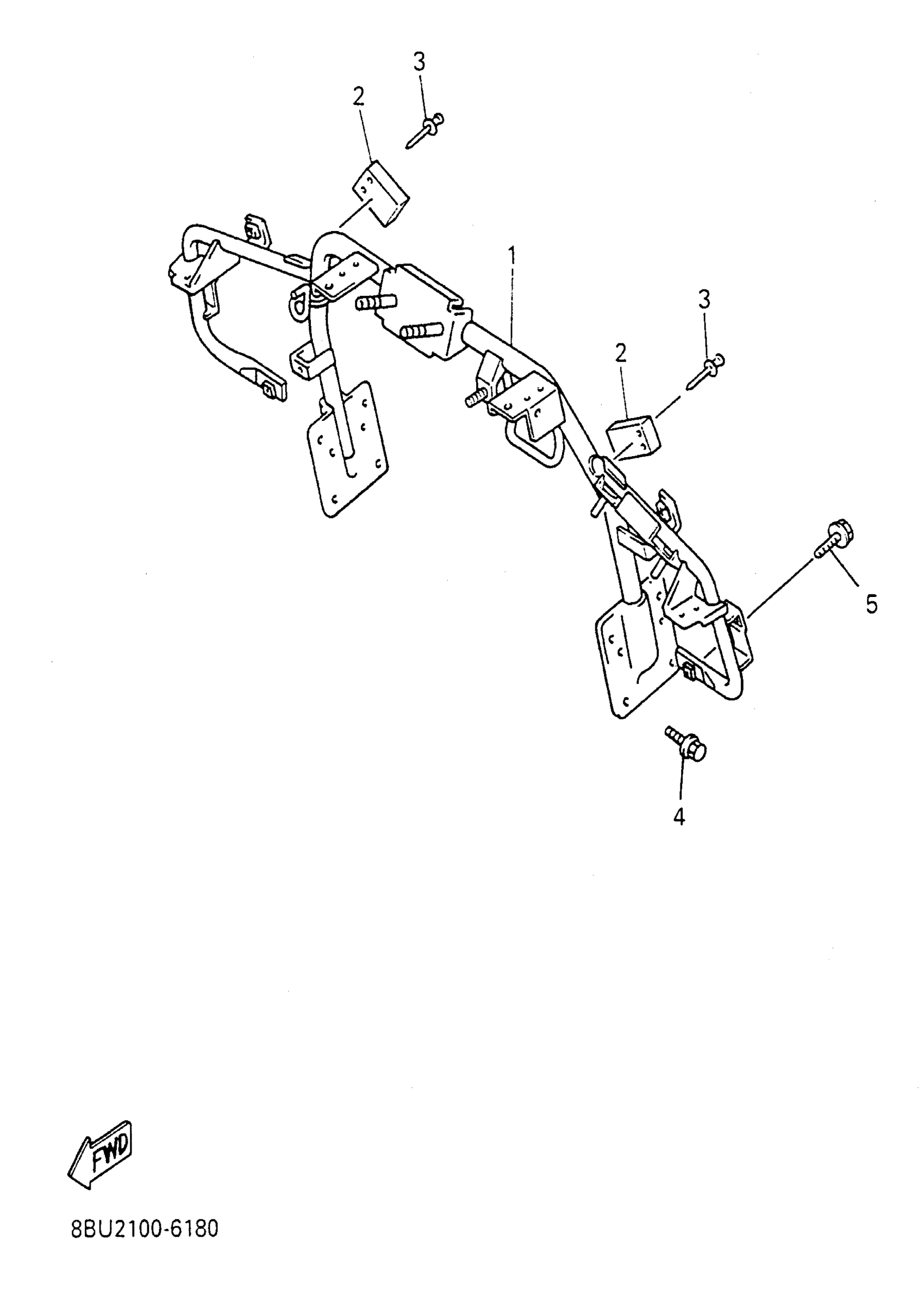

Find the part on the Steering Gate diagram for your 1996 Yamaha Vmax-4 800 (VX800W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Vmax-4 800 (VX800W) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

89A-23870-02-00

1
Out of stock

2

PAD 1

8AB-77151-00-00

1
Out of stock

3

RIVET(8AB)

90269-05073-00

1

$1.58

In stock

4

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

5

BOLT, FLANGE(6TA)

95817-08030-00

1

$6.17

In stock
