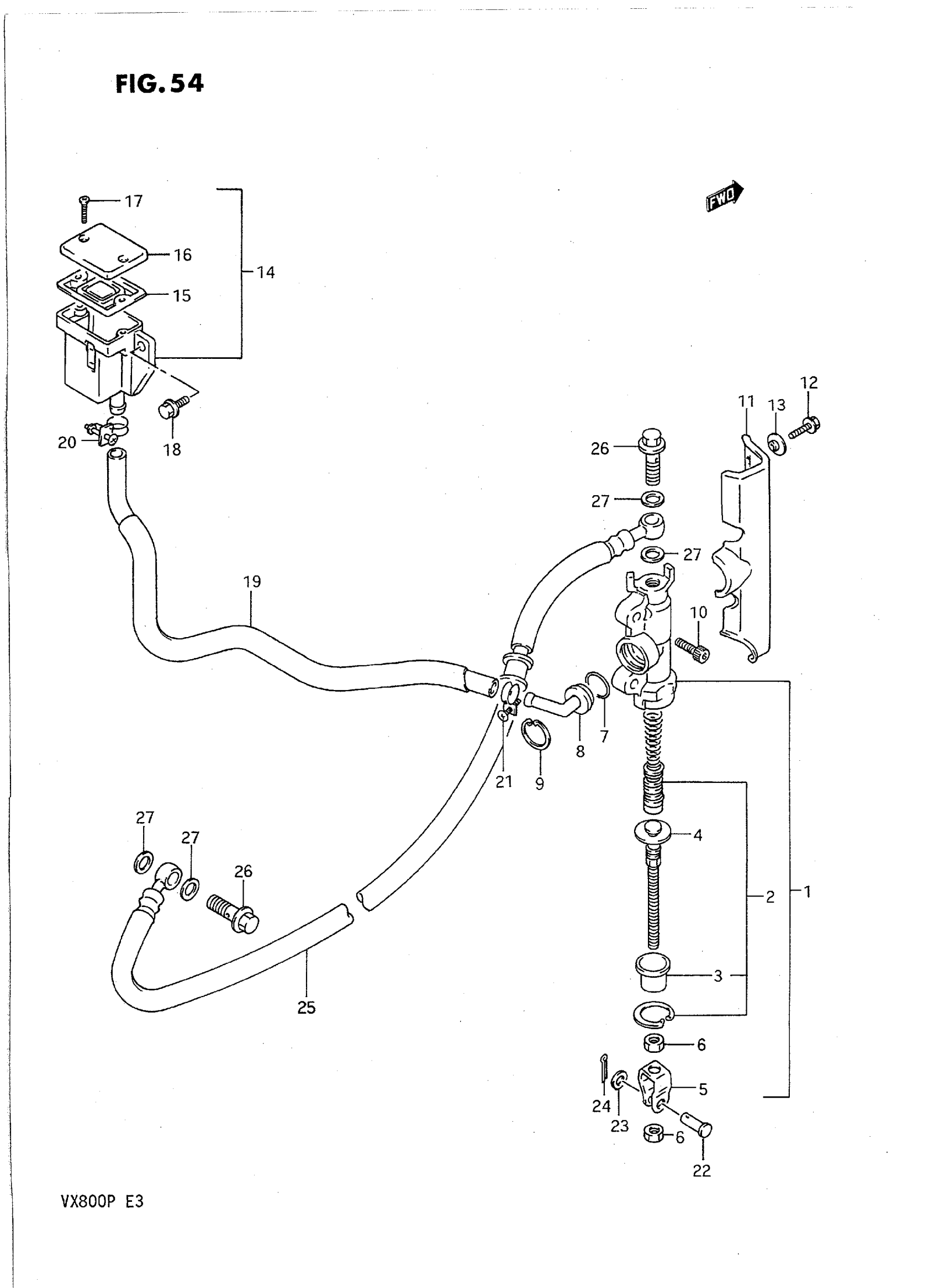

Suzuki VX800P (1993) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | MODEL L/M/N This part replaces 69600-45C00.

69600-45C01

Unavailable

1

CYLINDER ASSY, REAR MASTER | MODEL P; Includes Item(s) 2 - 9

69600-45C01

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$30.88

3

.BOOT

69691-00A00

$5.22

4

ROD, PUSH

69670-45C00

Unavailable

5

YOKE

69692-22A00

Unavailable

6

NUT This part replaces 69693-22A00.

69693-05A00

$1.86

7

O RING

69686-34200

$2.80

8

CONNECTOR

69672-00B20

$6.72

9

CIRCLIP

69674-00B20

$3.90

10

BOLT, FRONT BRG HOUSING This part replaces 07110-06205.

07130-0620B

$2.88

11

COVER, CYLINDER

69641-45C00

Unavailable

12

SCREW This part replaces 02142-06125.

02142-0612A

$1.41

13

WASHER

09169-06060

$2.00

14

TANK ASSY, REAR RESERVOIR | MODEL L/M/N This part replaces 69740-24A00.

69740-24A01

Unavailable

14

TANK ASSY, REAR RESERVOIR | MODEL P; Includes Item(s) 15 - 17

69740-24A01

Unavailable

15

DIAPHRAGM

59667-04700

$9.36

16

CAP | MODEL L/M/N

69669-24A01

$14.87

16

CAP | MODEL P

59669-05D00

$16.49

17

SCREW

69689-04A00

$2.15

18

BOLT This part replaces 01517-06128.

01550-06127

$2.38

19

HOSE, TANK

69731-45C00

Unavailable

20

CLAMP This part replaces 09400-16302.

09400-16304

$2.94

21

CLAMP, LOWER

09400-15302

Unavailable

22

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.82

23

WASHER This part replaces 08322-21067.

08322-01067

$1.93

24

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.25

25

HOSE, REAR BRAKE | MODEL L/M/N This part replaces 69480-45C00.

69480-45C10

Unavailable

25

HOSE, REAR BRAKE | MODEL P

69480-45C10

Unavailable

26

UNION This part replaces 09360-10019.

09360-10061

$6.07

27

WASHER (10X15X1.5)

09161-10009

$1.89
