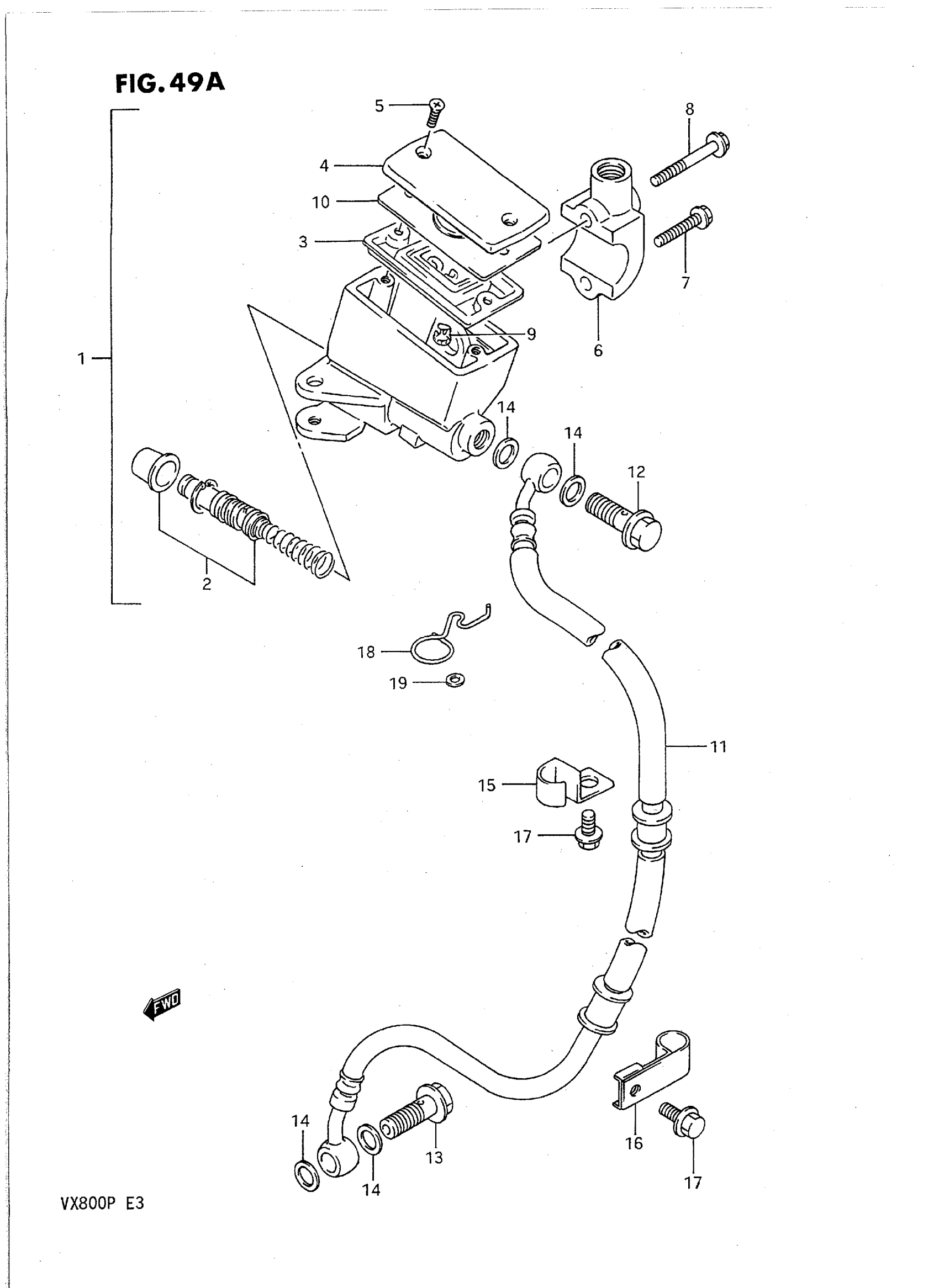

Suzuki VX800P (1993) FRONT MASTER CYLINDER (MODEL P) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-45C20

Unavailable

2

PISTON/CUP SET

59600-04810

$41.38

3

DIAPHRAGM

59667-49460

$8.95

4

CAP

59669-45C20

Unavailable

5

SCREW

69689-49300

$1.81

6

HOLDER

59671-45C10

Unavailable

7

BOLT HOLDER SET

59675-19C00

$4.53

8

BOLT, UPPER

59675-19C10

$5.28

9

PROTECTOR

59664-48B00

$12.43

10

PLATE

59668-41C00

$8.54

11

HOSE, FRONT BRAKE

59480-45C00

Unavailable

12

BOLT

09360-10017

$3.08

13

UNION This part replaces 09360-10033.

09360-10062

$5.81

14

WASHER (10X15X1.5)

09161-10009

$1.83

15

CLAMP, HOSE

59268-45C00

Unavailable

16

CLAMP, HOSE

59268-01D10

Unavailable

17

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

18

GUIDE, HOSE

59268-45C10

Unavailable

19

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24
