1993 Suzuki VX800 Rear Combination Lamp Diagram

← All diagrams

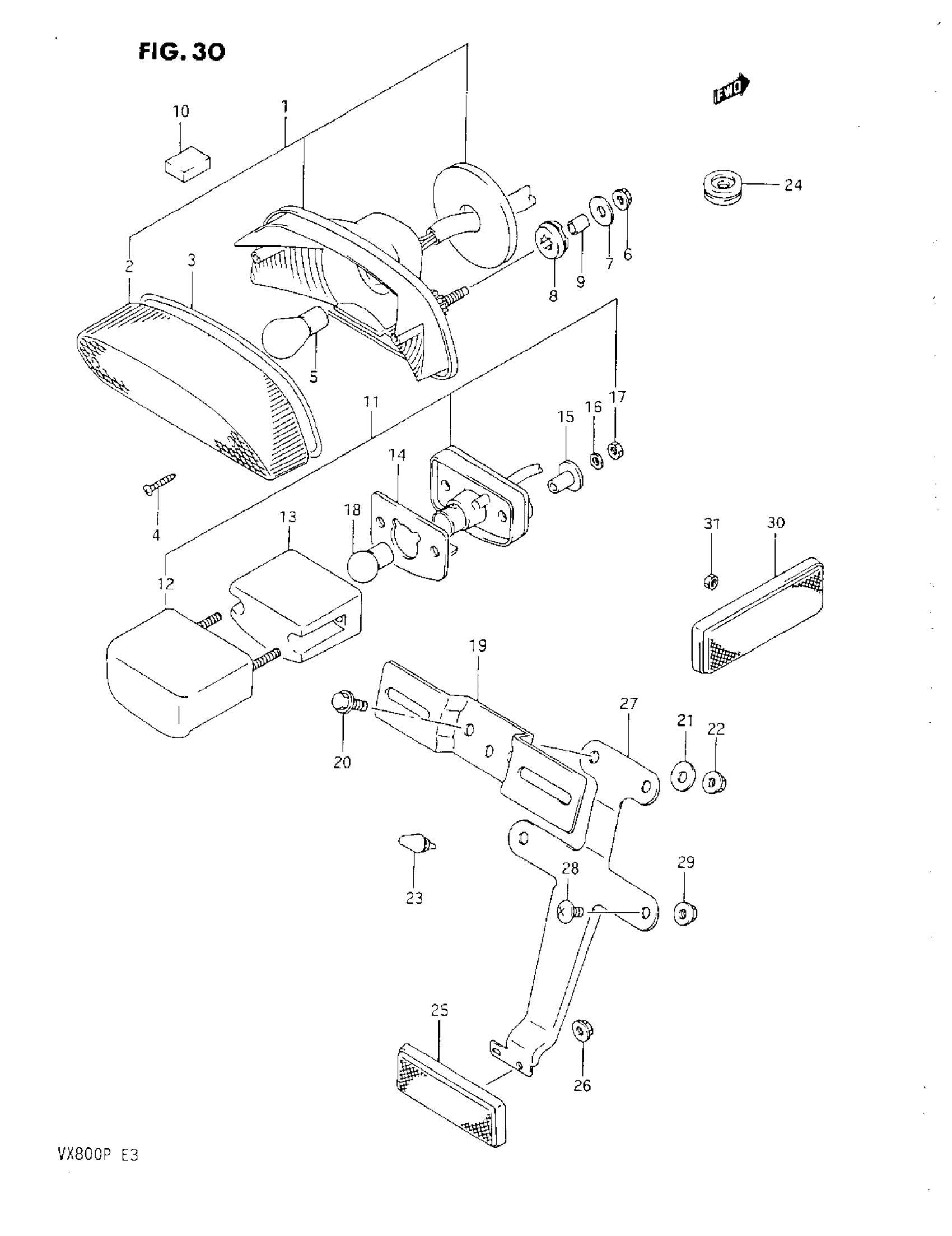

Find the part on the Rear Combination Lamp diagram for your 1993 Suzuki VX800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki VX800 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION

35710-45C10

1
Out of stock

2

LENS

35712-38B30

1
Out of stock

3

GASKET

35713-38B30

1
Out of stock

4

SCREW This part replaces 35723-38B30.

03511-0416A

2
Out of stock

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

6

NUT This part replaces 08316-26066.

08316-1006B

2
Out of stock

7

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

2
Out of stock

8

CUSHION

09320-09018

2
Out of stock

9

SPACER (6.5X9X10) This part replaces 09180-06114.

09180-06307

2
Out of stock

10

CUSHION, UPPER

35733-45C00

1
Out of stock

11

LAMP ASSY, LICENSE | MODEL L/M This part replaces 35910-45C10.

35910-24B30-999

1
Out of stock

11

LAMP ASSY, LICENSE | MODEL N/P This part replaces 35910-24B00-999.

35910-24B30-999

1
Out of stock

12

COVER, LICENSE LAMP | MODEL L/M This part replaces 35917-38A30.

35917-38A20

1
Out of stock

12

COVER, LAMP | MODEL N/P

35917-38A20

1
Out of stock

13

LENS

35912-38A30

1
Out of stock

14

GASKET

35913-38A30

1
Out of stock

15

SPACER

35766-24B30

2
Out of stock

16

LOCK WASHER This part replaces 08321-21047.

08321-0104A

2
Out of stock

17

NUT This part replaces 08310-11047.

08310-00047

2
Out of stock

18

1

$2.55

In stock

18

1

$2.55

In stock

19

BRACKET, LICENSE PLATE

35927-00A10

1
Out of stock

20

BOLT This part replaces 01517-06164.

01550-0616A

2
Out of stock

22

NUT This part replaces 08316-26066.

08316-1006B

2
Out of stock

23

CUSHION

09321-05005

1
Out of stock

24

GROMMET

09308-07013

2
Out of stock

25

REFLECTOR, REAR This part replaces 35970-00A21.

35970-00A10

1
Out of stock

26

NUT This part replaces 08316-26058.

08316-2005A

1
Out of stock

27

BRACKET, REAR

35974-45C00

1
Out of stock

28

SCREW This part replaces 02142-06125.

02142-0612A

2
Out of stock

29

NUT This part replaces 08316-26065.

08316-2006A

2
Out of stock

30

REFLECTOR, REAR SIDE | MODEL L

35950-43431

2
Out of stock

30

REFLECTOR, REAR | MODEL M/N/P This part replaces 35970-00A21.

35970-00A10

2
Out of stock

31

.NUT This part replaces 08310-22055.

09140-05006

2
Out of stock
