Description

Price

1

GRIP, THROTTLE

57110-49501

$32.02

2

SWITCH ASSY, HANDLE RH | MODEL L/M/N This part replaces 37200-45C10.

37200-45C12

Unavailable

2

SWITCH ASSY, RH | MODEL P This part replaces 37200-45C20.

37200-45C22

Unavailable

3

.SCREW This part replaces 02112-05455.

02112-0545B

$2.24

4

LEVER, ADJUST

57420-32C00

$26.47

5

KNOCKER This part replaces 57430-40C00.

57430-40C10

$66.87

6

SPRING

57438-32C00

$6.40

7

BOLT, LEVER This part replaces 57437-32C00.

57437-32C01

$9.70

8

NUT This part replaces 08319-31065.

08319-3106A

$2.01

9

BOLT, LEVER

57431-17C00

$6.51

10

NUT This part replaces 08316-16064.

08316-1006B

$2.50

11

SWITCH ASSY,FR BRAKE This part replaces 57460-17C00.

57460-14J02

$35.21

12

SCREW

57465-17C00

$2.37

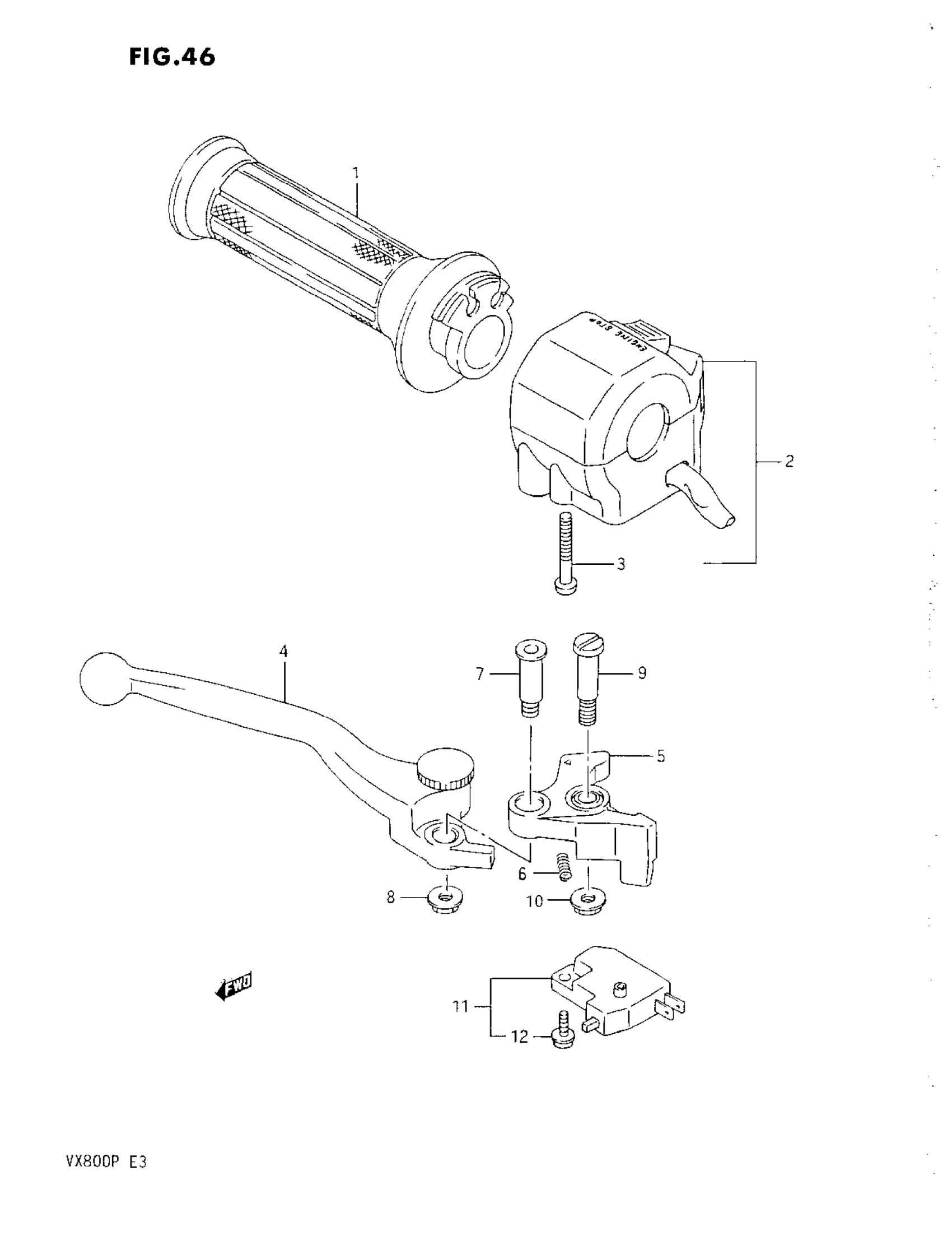

Suzuki VX800 (1993) RIGHT HANDLE SWITCH Diagram
