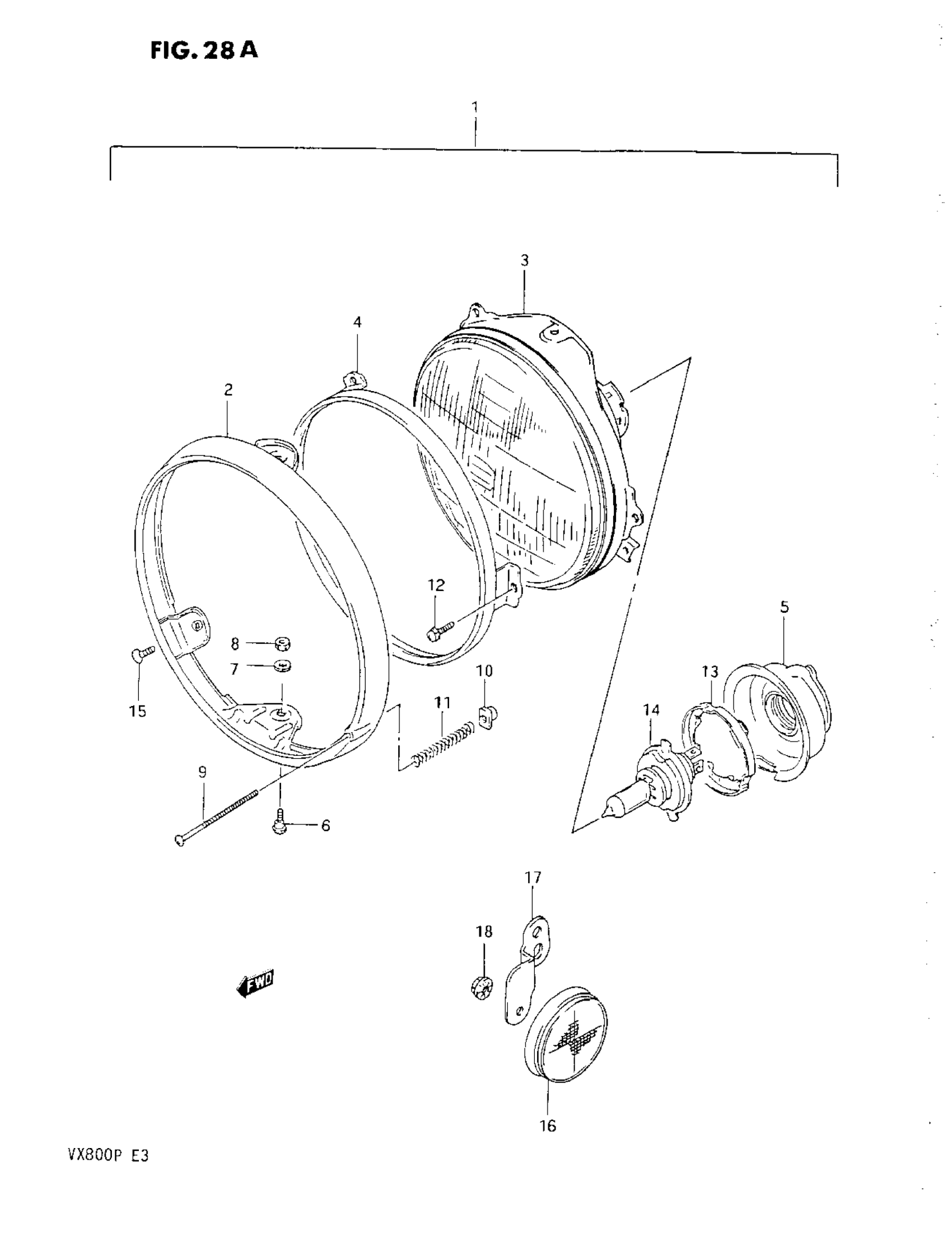

Suzuki VX800 (1993) HEADLAMP (P) Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-10D30-999.

35100-10D70-999

Unavailable

2

RIM

35111-01D20

$81.93

3

LAMP UNIT

35121-10D30

Unavailable

4

RING

35127-45030

Unavailable

5

COVER, SOCKET This part replaces 35118-01D20.

35173-20A01

$20.33

6

SCREW

35181-15611

$3.80

7

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.83

8

NUT This part replaces 08310-11056.

08310-0005A

$1.83

9

SCREW This part replaces 35151-45030.

35151-45900

$3.44

10

NUT

35152-15611

$3.67

11

SPRING

35154-31900

$6.00

12

SCREW This part replaces 02112-04106.

02112-0410A

$1.30

13

SETTER, BULB

35136-34400

Unavailable

14

BULB (12V, 60/55W, H4)

09471-12060

$22.69

15

SCREW This part replaces 02132-05127.

02122-05127

$1.68

16

REFLECTOR, FRONT SIDE

35950-14A00

$15.95

17

BRACKET, RH

35956-45C01

Unavailable

17

BRACKET, LH

35957-45C01

Unavailable

18

NUT This part replaces 08316-26055.

08316-2005A

$2.21
