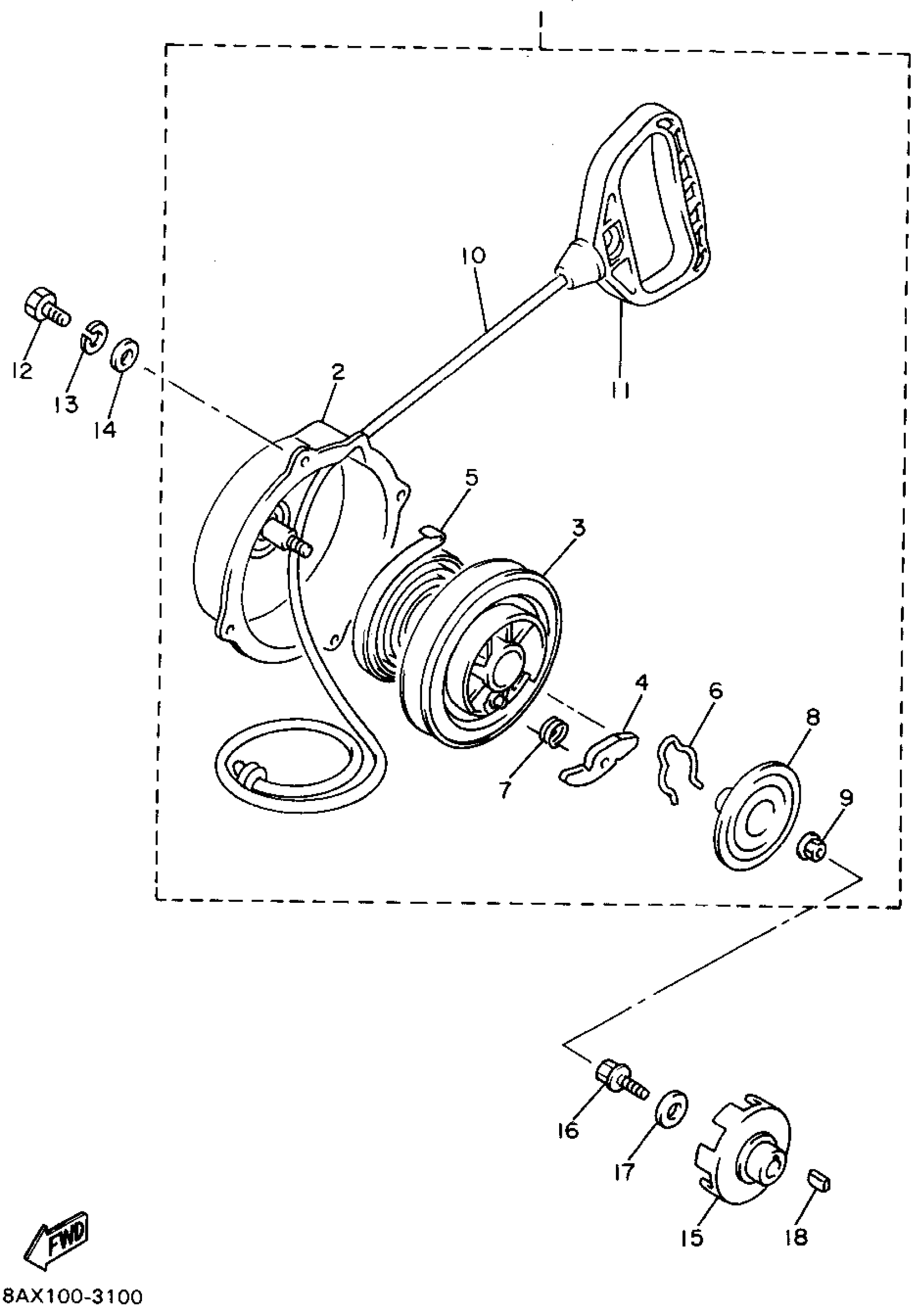

Yamaha VX750U (VMAX-4) 1994 STARTER Diagram

#

Description
Price

1

STARTER ASY

89A-15710-02-00

Unavailable

2

CASE, STARTER

89A-15711-02-00

Unavailable

3

DRUM, SHEAVE

24W-15714-00-00

$47.87

4

PAWL, DRIVE

21V-15741-00-00

$17.98

5

SPRING, STARTER

21V-15713-00-00

$18.80

6

SPRING, DRIVE PLATE

21V-15715-00-00

$24.01

7

SPRING

21V-15767-00-00

$5.90

8

PLATE, DRIVE

21V-15716-00-00

$22.79

9

NUT, FLANGE(7NB)

95780-06500-00

$1.85

10

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

11

HANDLE, STARTER

8F3-15755-00-00

$21.46

12

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.60

13

WASHER, SPRING

92995-06100-00

$3.04

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

PULLEY, STARTER

89A-15723-01-00

Unavailable

16

BOLT, FLANGE

95817-10020-00

Unavailable

17

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

18

KEY, WOOD RUFF (324)

90280-05014-00

Unavailable
