1994 Yamaha Vmax-4 (VX750U) Electrical 1 Diagram

← All diagrams

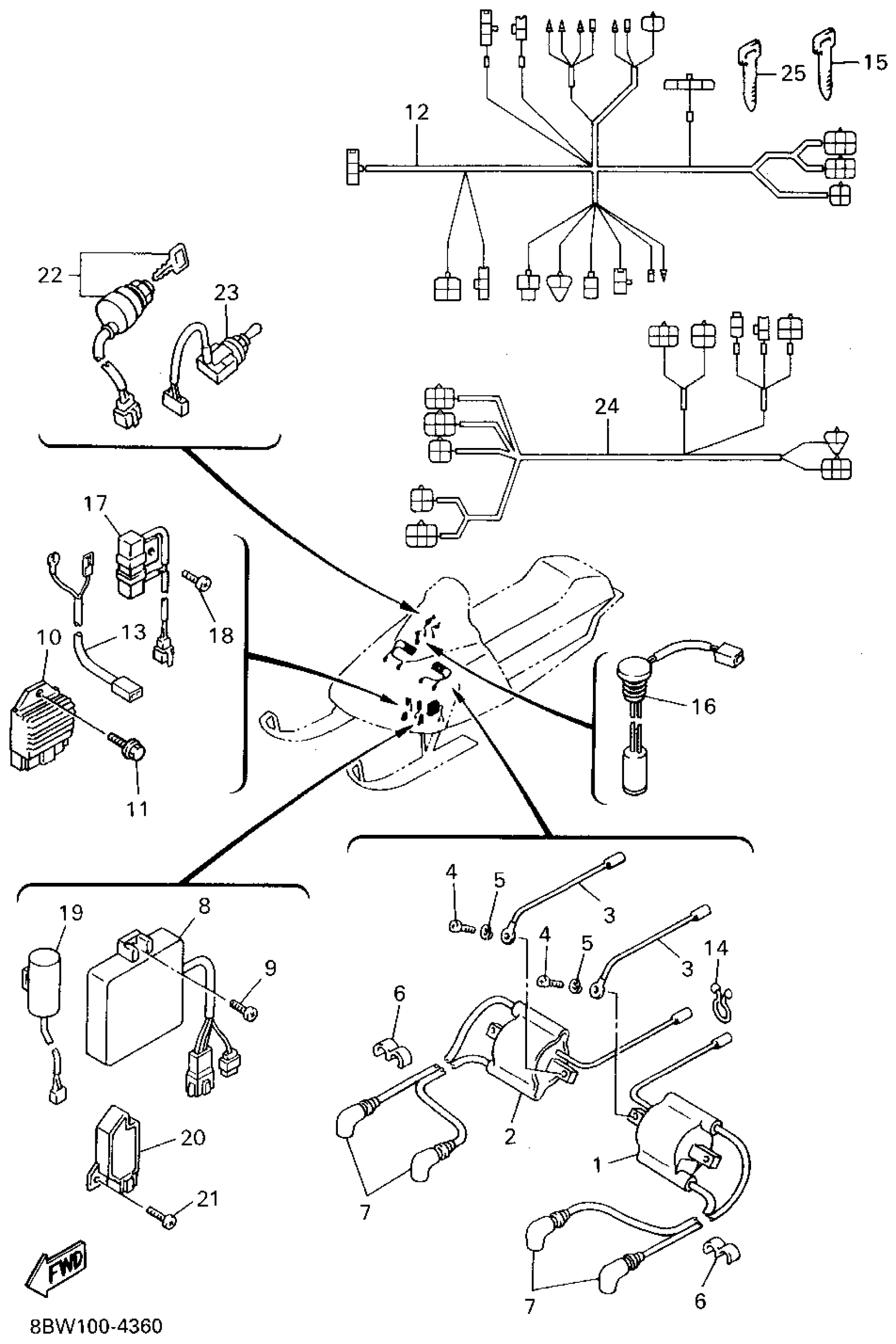

Find the part on the Electrical 1 diagram for your 1994 Yamaha Vmax-4 (VX750U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Vmax-4 (VX750U) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

85T-82310-06-00

1
Out of stock

2

IGNITION COIL ASSY

89A-82320-09-00

1
Out of stock

3

WIRE, SUB-LEAD

87D-82318-00-00

1
Out of stock

4

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

7

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

8

C.D.I. UNIT ASSEMBLY

8BW-85540-00-00

1
Out of stock

9

SCREW, BIND (705)

98980-06016-00

1
Out of stock

10

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

1

$91.88

In stock

11

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

12

WIRE HARNESS ASSEMBLY

8BW-82590-00-00

1
Out of stock

13

WIRE, SUB LEAD

8BW-82509-00-00

1
Out of stock

14

CLAMP (3Y2)

90464-16039-00

1
Out of stock

15

BAND

341-26397-01-00

1
Out of stock

16

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

—

$60.48

In stock

17

RESISTOR ASSEMBLY

88T-85370-00-00

1
Out of stock

18

SCREW, BIND (705)

98980-06016-00

1
Out of stock

19

CONDENSER, SMOOTHING

1NL-81965-01-00

—
Out of stock

20

RECTIFIER & REGULAT0R ASSY

1JK-81960-A1-00

—
Out of stock

21

SCREW, BIND (705)

98980-06016-00

1
Out of stock

22

MAIN SWITCH ASSEMBLY

89A-82510-00-00

1
Out of stock

23

SWITCH

88H-82917-00-00

1
Out of stock

24

WIRE HARNESS ASSEMBLY 2

8BW-82580-00-00

1
Out of stock

25

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock
