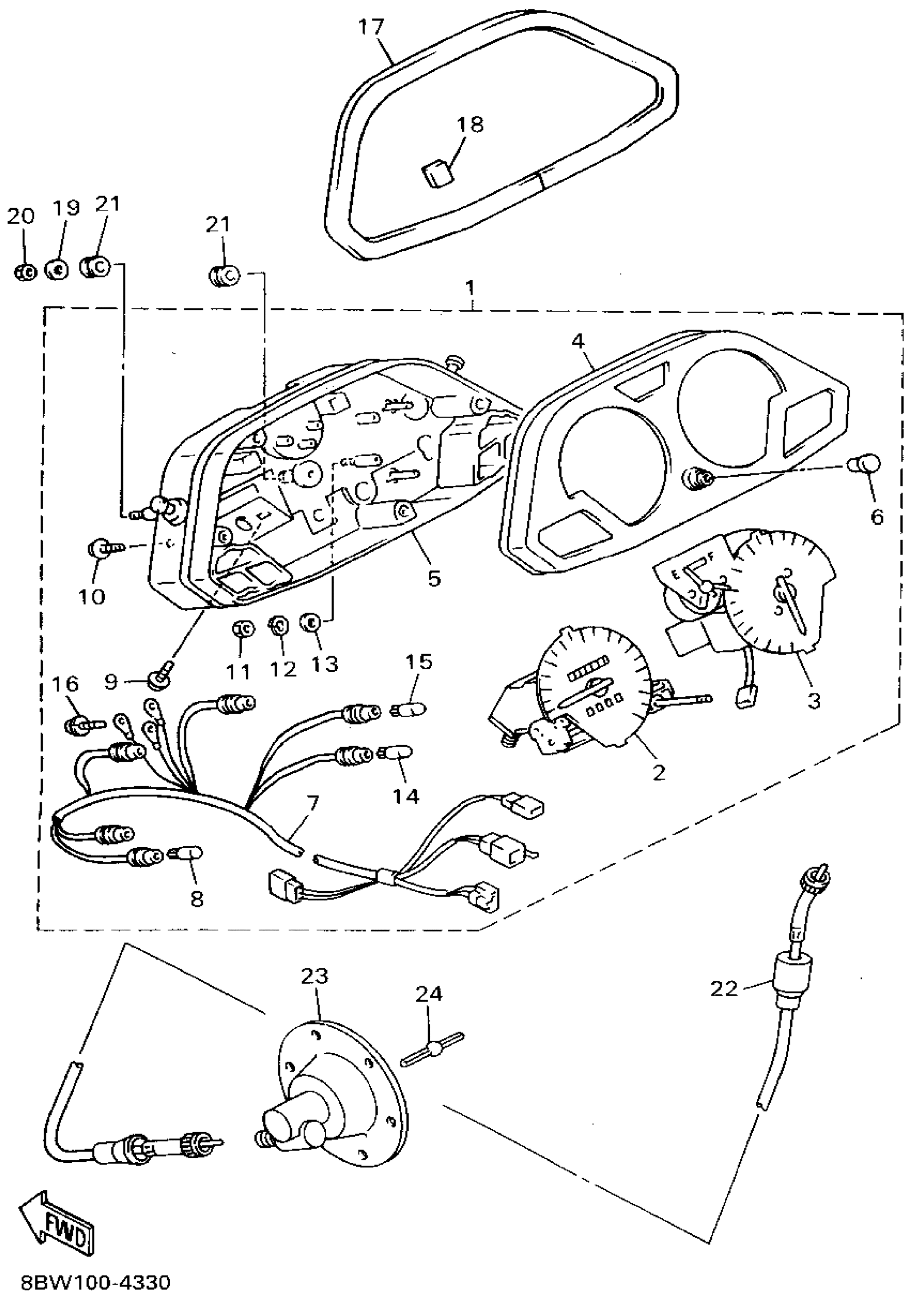

Find the part on the Meter diagram for your 1994 Yamaha Vmax-4 (VX750U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Vmax-4 (VX750U) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASY

89A-83500-42-00

1
Out of stock

2

SPEEDOMETER ASSY

8CR-83580-40-00

1
Out of stock

3

TACHOMETER ASSY

89A-83540-42-00

1
Out of stock

4

COVER,METER

88R-83559-20-00

1
Out of stock

5

. CASE, UNDER (8AS-8353H-20-00)

89A-8353H-40-00

1
Out of stock

6

KNOB, TRIP METER

29L-83578-00-00

—

$24.29

In stock

7

. SOCKET CORD ASSEMBLY

89A-83509-40-00

1
Out of stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

SCREW, PAN HEAD

98517-04012-00

1

$3.28

In stock

10

SCREW, TAPPING (10M)

90164-04009-00

1
Out of stock

11

NUT(6TA)

95307-04600-00

1

$6.69

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

14

BULB (6V 3W)

4N0-83516-00-00

1
Out of stock

15

BULB (12V-1.7W)

3GM-83517-00-00

1
Out of stock

16

SCREW, WITH WASHER(36Y)

90159-03102-00

—
Out of stock

17

TRIM 5

89A-77225-00-00

1
Out of stock

18

DAMPER 1

89A-77198-00-00

1
Out of stock

19

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

20

NUT, U FLANGE

95604-06200-00

—

$2.35

In stock

21

DAMPER

5J0-83513-00-00

—
Out of stock

22

SPEEDOMETER CABLE ASSY

89A-83550-00-00

1
Out of stock

23

METER GEAR HOUSING COMP

83R-47700-00-00

—

$147.58

In stock

24

JOINT

8K4-47715-00-00

—

$4.60

In stock
