1993 Yamaha Vmax-4 (VX750T) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1993 Yamaha Vmax-4 (VX750T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

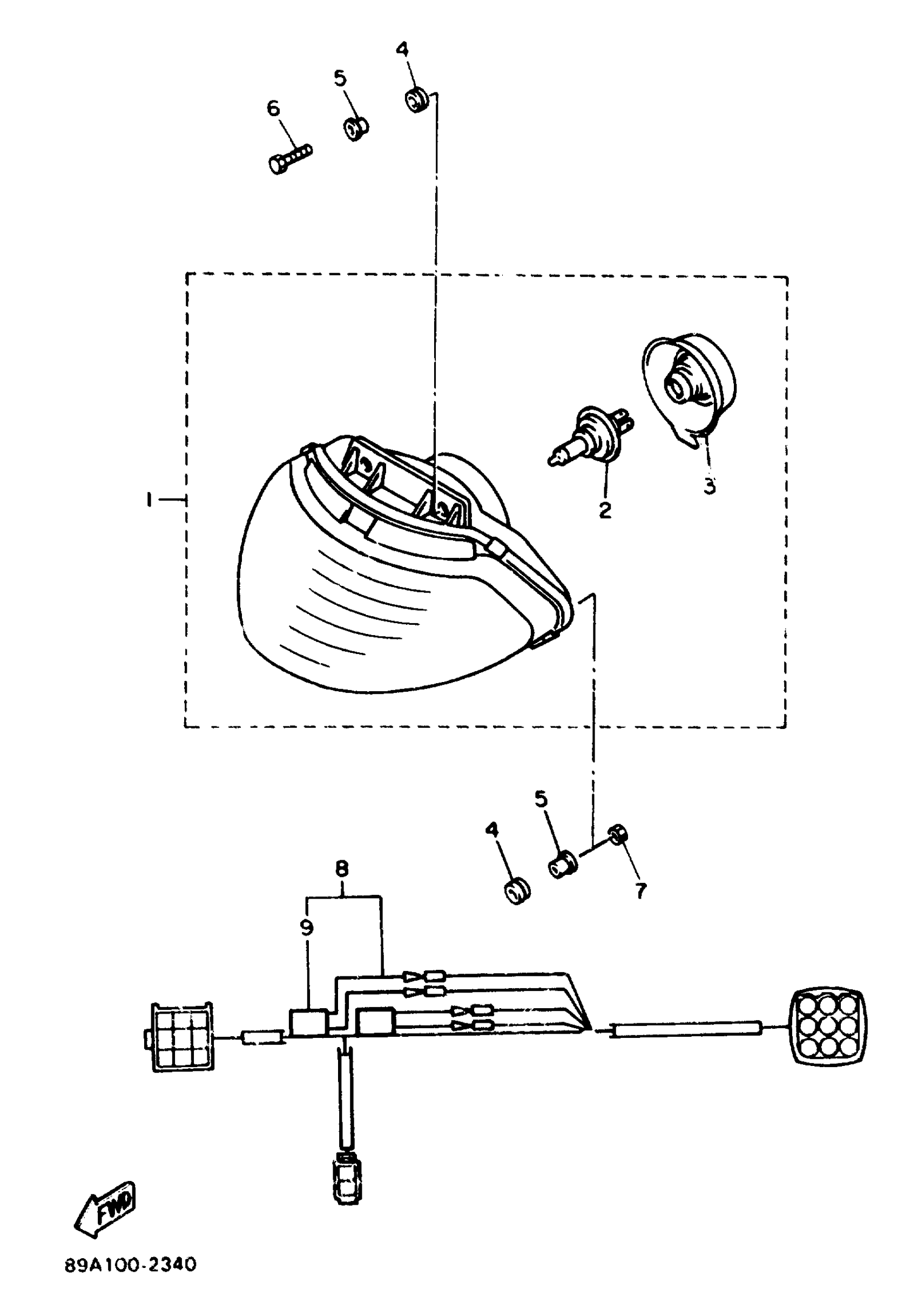

1993 Yamaha Vmax-4 (VX750T) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

89A-84310-00-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

89A-84397-00-00

—

$11.09

In stock

4

GROMMET (1E5)

90480-13163-00

1

$6.33

In stock

5

COLLAR(42G)

90387-062L2-00

1
Out of stock

6

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

CORD, HEADLIGHT

89A-84359-00-00

1
Out of stock

9

CHECKER, PILOT LAMP

38W-85774-00-00

1
Out of stock
