1993 Yamaha Vmax-4 (VX750T) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1993 Yamaha Vmax-4 (VX750T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

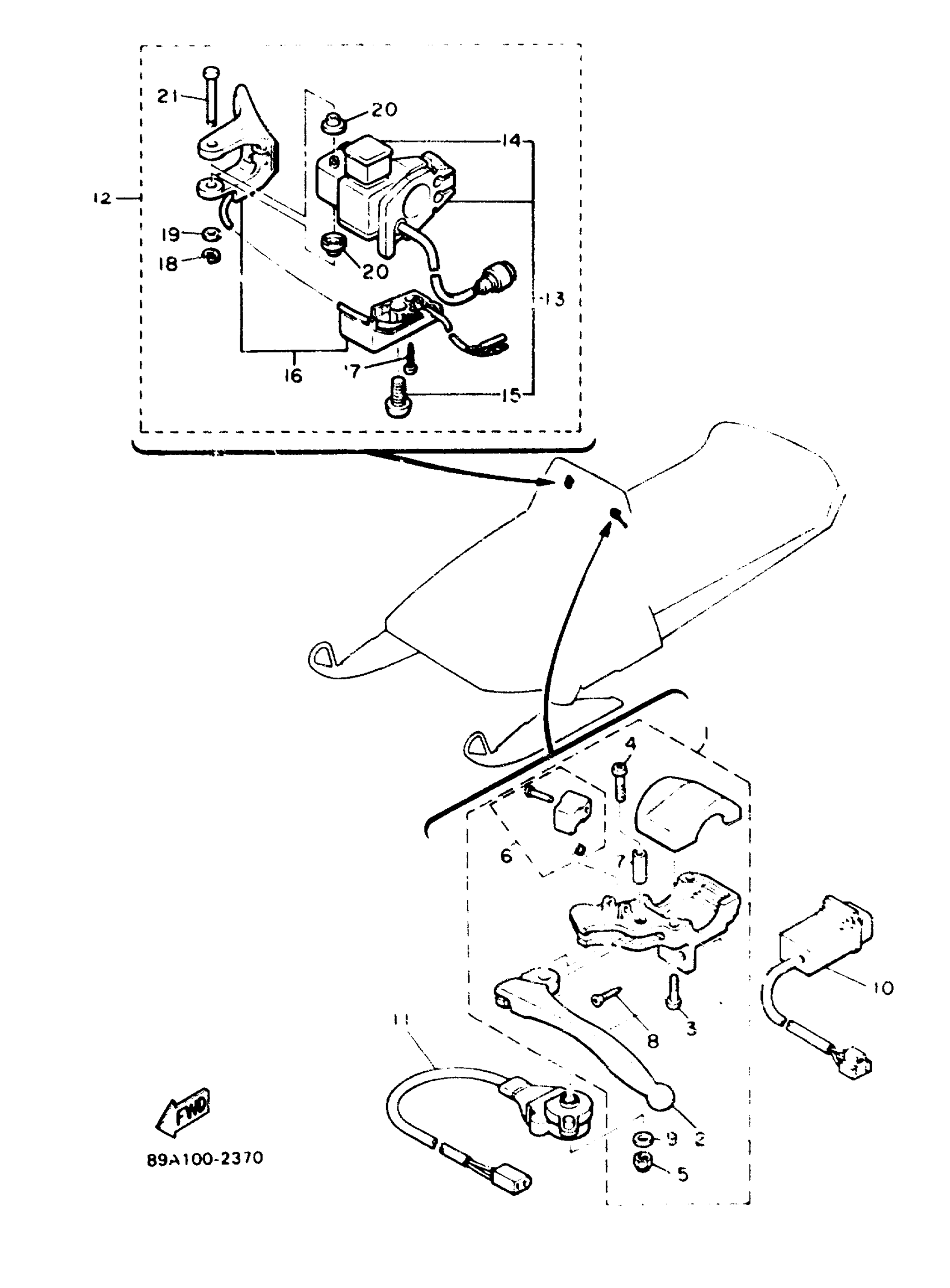

1993 Yamaha Vmax-4 (VX750T) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

1

$110.75

In stock

2

LEVER 1

8H8-83912-00-00

1

$18.40

In stock

3

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

4

SCREW

8R4-82113-00-00

—

$0.95

In stock

5

NUT, NYLON

95707-05300-00

1

$2.74

In stock

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

1
Out of stock

7

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

8

. SCREW, TAPPING

97780-30312-00

1
Out of stock

9

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

10

BEAM SWITCH ASSY

8H8-83950-01-00

1

$68.89

In stock

11

STOP SWITCH ASSY

88R-82530-00-00

1

$25.06

In stock

12

LEVER HOLDER ASSY, 2

89A-82720-03-00

1
Out of stock

13

. SWITCH, HANDLE 3 (RIGHT)

84M-83963-00-00

1
Out of stock

14

. ENGINE STOP SWITCH ASSEMBLY

84R-82575-09-00

1
Out of stock

15

SCREW, ADJUSTING

84M-83928-00-00

1
Out of stock

16

THUMB WARMER ASSY

89A-82970-03-00

1
Out of stock

17

SCREW, TAPPING(3NX)

97707-30514-00

—
Out of stock

18

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

19

WASHER, SPECIAL

85G-83663-00-00

—

$7.22

In stock

20

CAP 1

85G-83956-00-00

—

$6.66

In stock

21

SHAFT

8R6-8399F-00-00

—

$10.85

In stock
