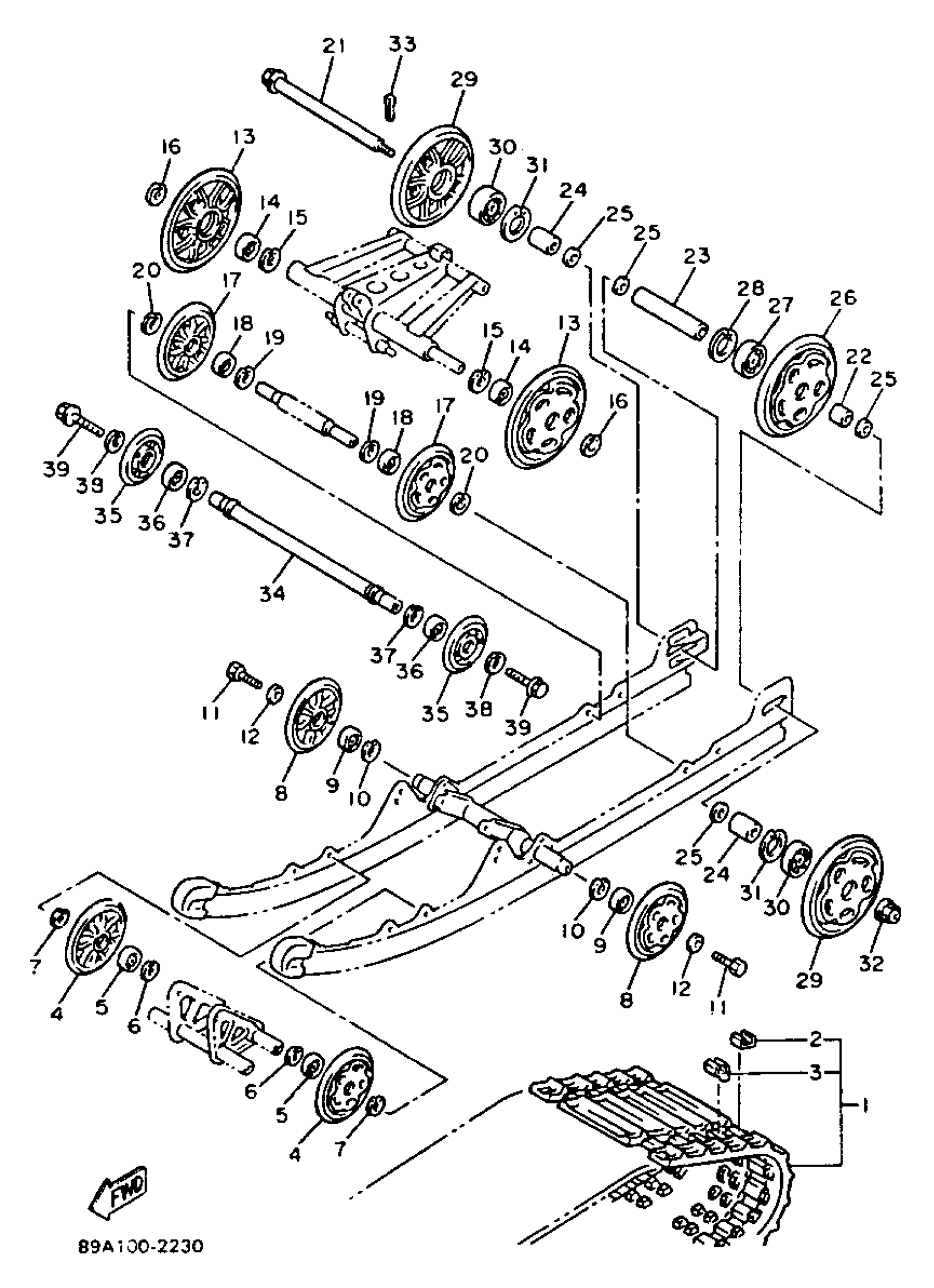

Yamaha VX750S (VMAX-4) 1992 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8EA-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

3

METAL, SLIDE

89A-47115-01-00

Unavailable

4

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

5

BEARING(8AB)

93306-00444-00

$34.98

6

CIRCLIP(5U8)

99009-42500-00

$6.45

7

CIRCLIP(1AR)

99009-20400-00

$5.87

8

SUSPENSION WHEEL COMP.

87U-47320-00-00

Unavailable

9

BEARING(8AB)

93306-00444-00

$34.98

10

CIRCLIP(5U8)

99009-42500-00

$6.45

11

BOLT (8K2)

90109-08559-00

$6.82

12

WASHER (8G1)

90201-08681-00

$6.12

13

SUSPENSION WHEEL COMP.

88R-47320-00-00

Unavailable

14

BEARING(8AB)

93306-00444-00

$34.98

15

CIRCLIP(5U8)

99009-42500-00

$6.45

16

CIRCLIP(1AR)

99009-20400-00

$5.87

17

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.20

18

BEARING(8AB)

93306-00444-00

$34.98

19

CIRCLIP(5U8)

99009-42500-00

$6.45

20

CIRCLIP(1AR)

99009-20400-00

$5.87

21

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

22

COLLAR

90387-204R3-00

Unavailable

23

COLLAR

90387-20023-00

Unavailable

24

COLLAR

90387-20022-00

Unavailable

25

WASHER, PLATE (888)

90201-20279-00

Unavailable

26

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

27

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

28

CIRCLIP(48Y)

99009-47500-00

Unavailable

29

GUIDE WHEEL COMP.

8M6-47530-00-00

Unavailable

30

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

31

CIRCLIP(48Y)

99009-47500-00

Unavailable

32

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

33

PIN, COTTER

91490-30030-00

Unavailable

34

IDLER

89A-47461-01-00

Unavailable

35

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

36

BEARING(8AB)

93306-00444-00

$34.98

37

CIRCLIP(5U8)

99009-42500-00

$6.45

38

CIRCLIP(1AR)

99009-20400-00

$5.87

39

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
