1992 Yamaha Vmax-4 (VX750S) Track Drive 2 Diagram

← All diagrams

Find the part on the Track Drive 2 diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

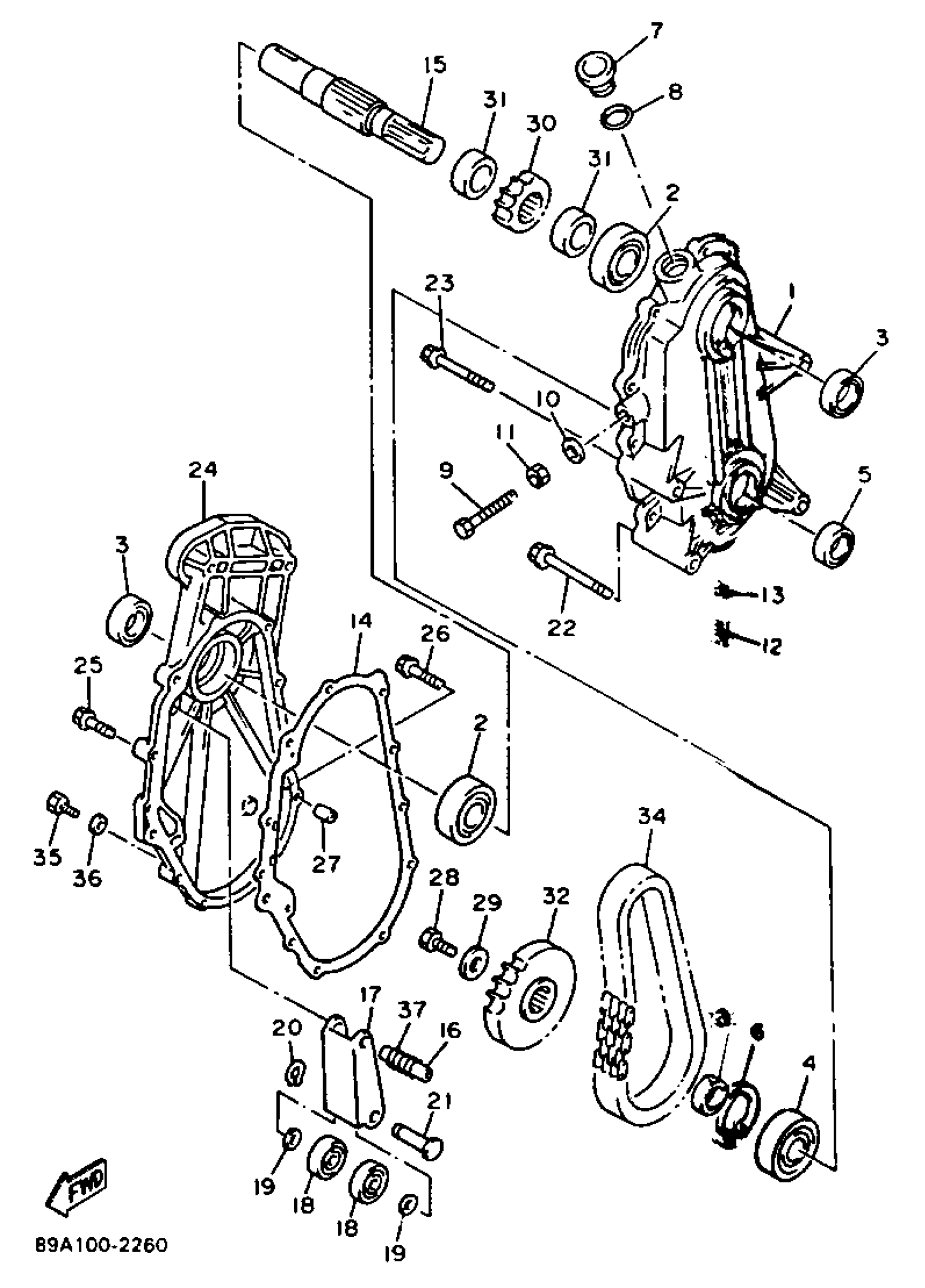

1992 Yamaha Vmax-4 (VX750S) Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

99999-02702-00

1
Out of stock

2

BEARING

93306-27801-00

1
Out of stock

3

OIL SEAL (28X47X7-102)

93102-28022-00

1
Out of stock

4

BEARING(3RR)

93306-30560-00

—
Out of stock

5

OIL SEAL (25X44X6-810)

93102-25081-00

1
Out of stock

6

CIRCLIP(MF1)

99009-62500-00

1
Out of stock

7

PLUG, OIL

3FV-15363-00-00

1
Out of stock

8

O-RING(1KT)

93210-27778-00

1
Out of stock

9

BOLT, HEXAGON (8F3)

90101-10357-00

—
Out of stock

10

WASHER SEAL 256111730200

90210-10004-00

1
Out of stock

11

NUT (682)

95380-10700-00

1
Out of stock

12

SCREW, BIND(2TV)

98980-06008-00

1
Out of stock

13

GASKET 838153840000

90430-06016-00

1
Out of stock

14

GASKET

89A-47592-00-00

1
Out of stock

15

AXLE, DRIVE

89A-17421-00-00

1
Out of stock

16

COLLAR

90387-061Y2-00

1
Out of stock

17

HOLDER

89A-47613-00-00

1
Out of stock

18

BRG.

93306-30101-00

—
Out of stock

19

WASHER, PLATE(663)

92990-12600-00

—
Out of stock

20

CIRCLIP(10Y)

99009-12400-00

—
Out of stock

21

PIN

90249-12218-00

1
Out of stock

22

BOLT, FLANGE(JF2)

95817-08080-00

—
Out of stock

23

BOLT, FLANGE(8BT)

95817-08095-00

—
Out of stock

24

CAP, HOUSING

89A-47543-00-00

1
Out of stock

25

BOLT, FLANGE

95817-06030-00

—
Out of stock

26

BOLT, FLANGE

95817-06040-00

—
Out of stock

27

PIN, DOWEL(3VD)

99530-10114-00

—
Out of stock

28

BOLT(6TD)

97017-10025-00

—
Out of stock

29

WASHER PLATE (3L6)

90201-10742-00

—
Out of stock

30

SPRKT, CHAIN DR

89A-17682-00-00

1
Out of stock

30

SPRKT, CHAIN DR

89A-17682-10-00

1
Out of stock

30

SPRKT, CHAIN DR

89A-17682-20-00

1
Out of stock

30

SPRKT, CHAIN DR

89A-17682-30-00

1
Out of stock

30

SPRKT, CHAIN DR

89A-17682-40-00

1
Out of stock

31

COLLAR

90387-341Y3-00

1
Out of stock

32

SPROCKET, CHAIN DRIVEN (33T)

89A-47587-30-00

1
Out of stock

32

SPROCKET, CHAIN DRIVEN (35T)

89A-47587-50-00

1
Out of stock

32

SPROCKET, CHAIN DRIVEN (37T)

89A-47587-70-00

1
Out of stock

32

SPROCKET, CHAIN DRIVEN (39T)

89A-47587-90-00

1
Out of stock

33

COLLAR (2K7)

90387-25663-00

—
Out of stock

34

CHAIN (89A)

94880-03066-00

1
Out of stock

34

CHAIN (68L)

94880-03068-00

1
Out of stock

34

CHAIN (70L)

94880-03070-00

1
Out of stock

35

BOLT(3JP)

97017-06010-00

—
Out of stock

36

WASHER, SEAL (7G5)

90210-06006-00

—
Out of stock

37

SPRING, TORSION

90508-343A2-00

1
Out of stock
