1992 Yamaha Vmax-4 (VX750S) Taillight Diagram

← All diagrams

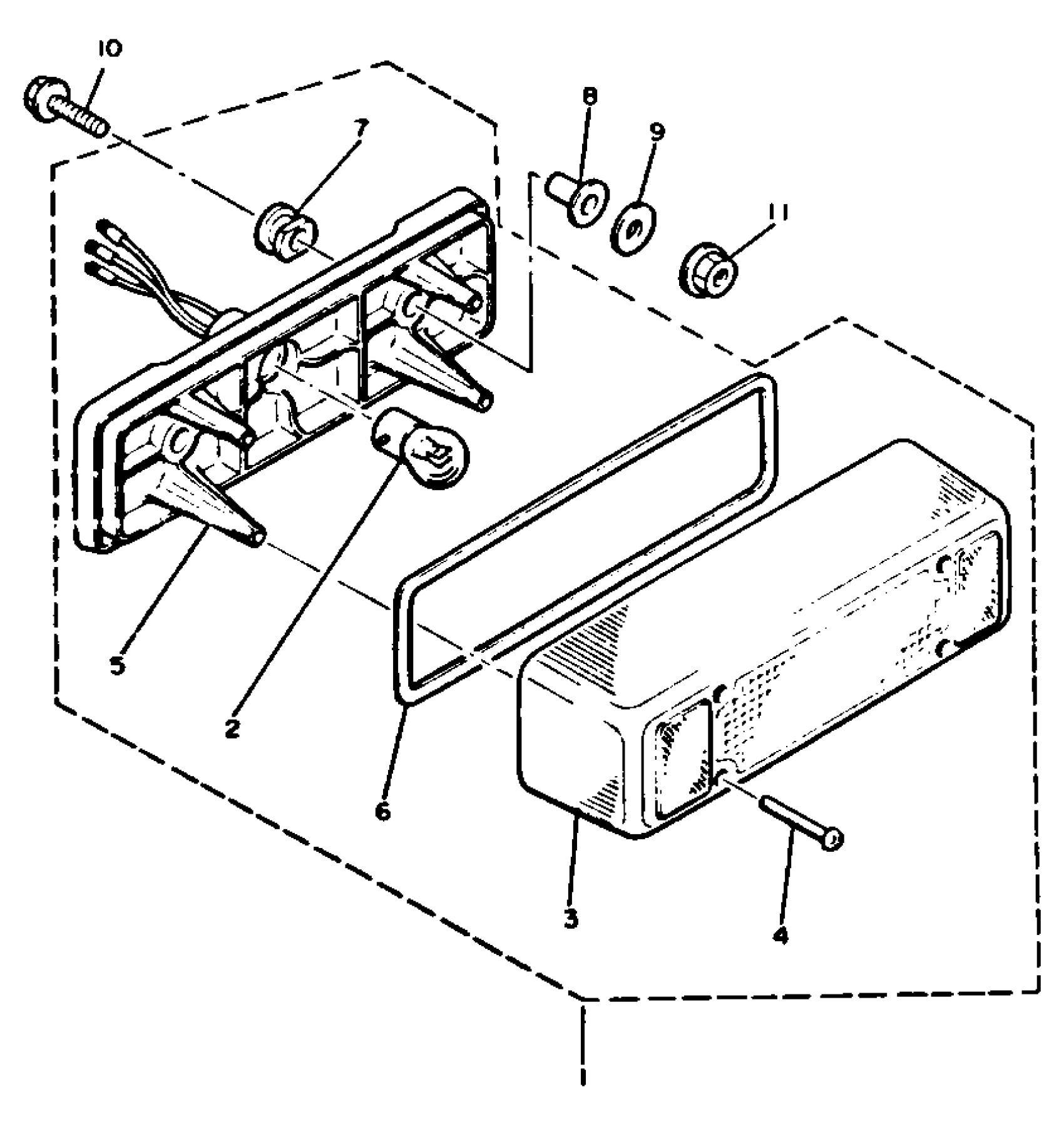

Find the part on the Taillight diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Vmax-4 (VX750S) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

82M-84710-01-00

1
Out of stock

2

BULB(12V32/3CP)1157

137-84714-61-XX

1
Out of stock

3

LENS, TAILLIGHT

8K4-84721-01-00

1

$37.66

In stock

4

1

$5.51

In stock

5

BASE, TAILLIGHT

82M-84711-01-00

—
Out of stock

6

SEAL

3TJ-14457-00-00

—
Out of stock

7

GROMMET

8K4-84718-00-00

1
Out of stock

8

COLLAR

90387-06166-00

1
Out of stock

9

WASHER, PLATE

90201-06747-00

1

$6.17

In stock

10

BOLT, WITH WASHER

90119-06208-00

1
Out of stock

11

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock
