1992 Yamaha Vmax-4 (VX750S) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

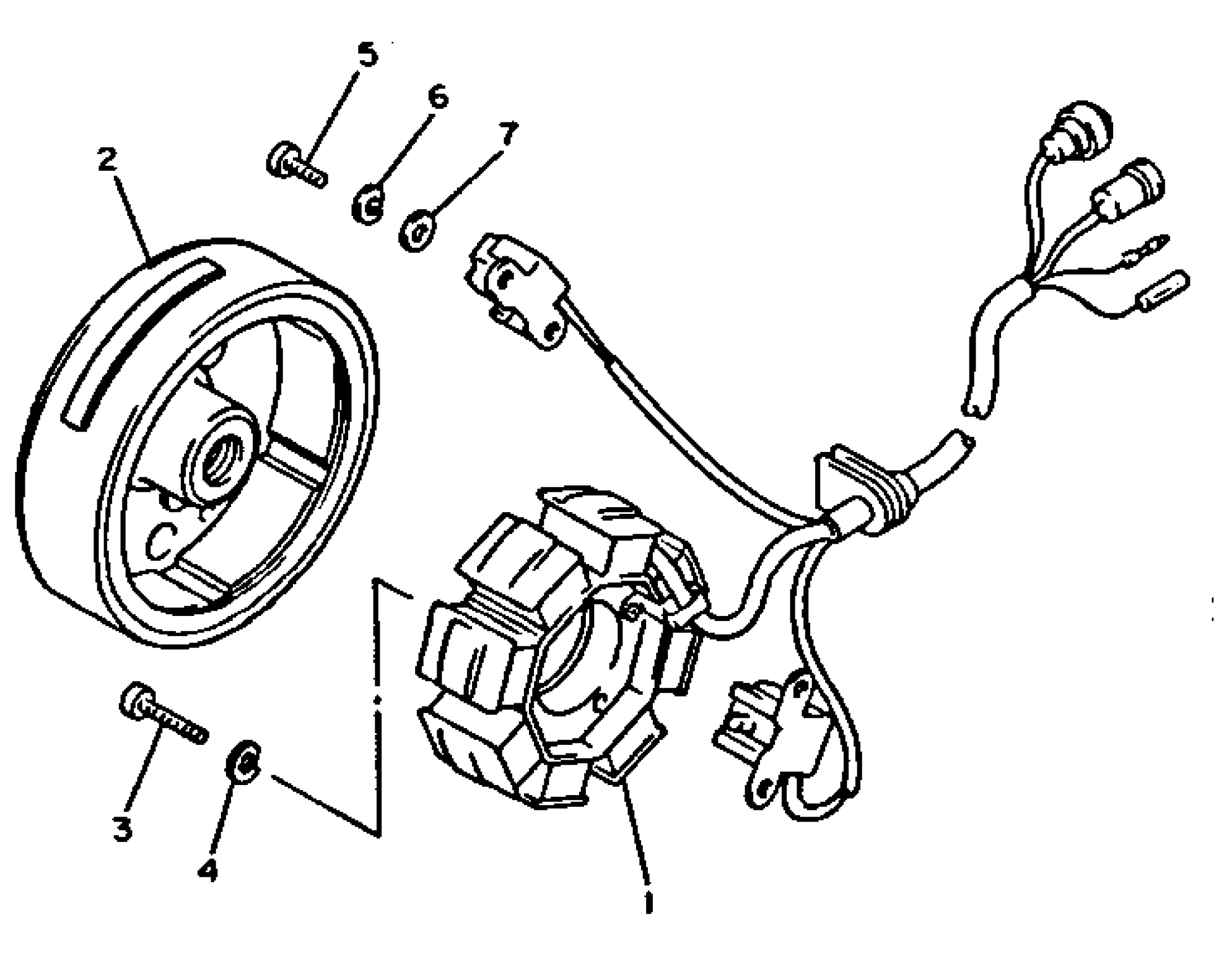

1992 Yamaha Vmax-4 (VX750S) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSY

89A-85510-01-00

1
Out of stock

2

ROTOR ASSEMBLY

89A-85550-00-00

1
Out of stock

3

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock
