1992 Yamaha Vmax-4 (VX750S) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

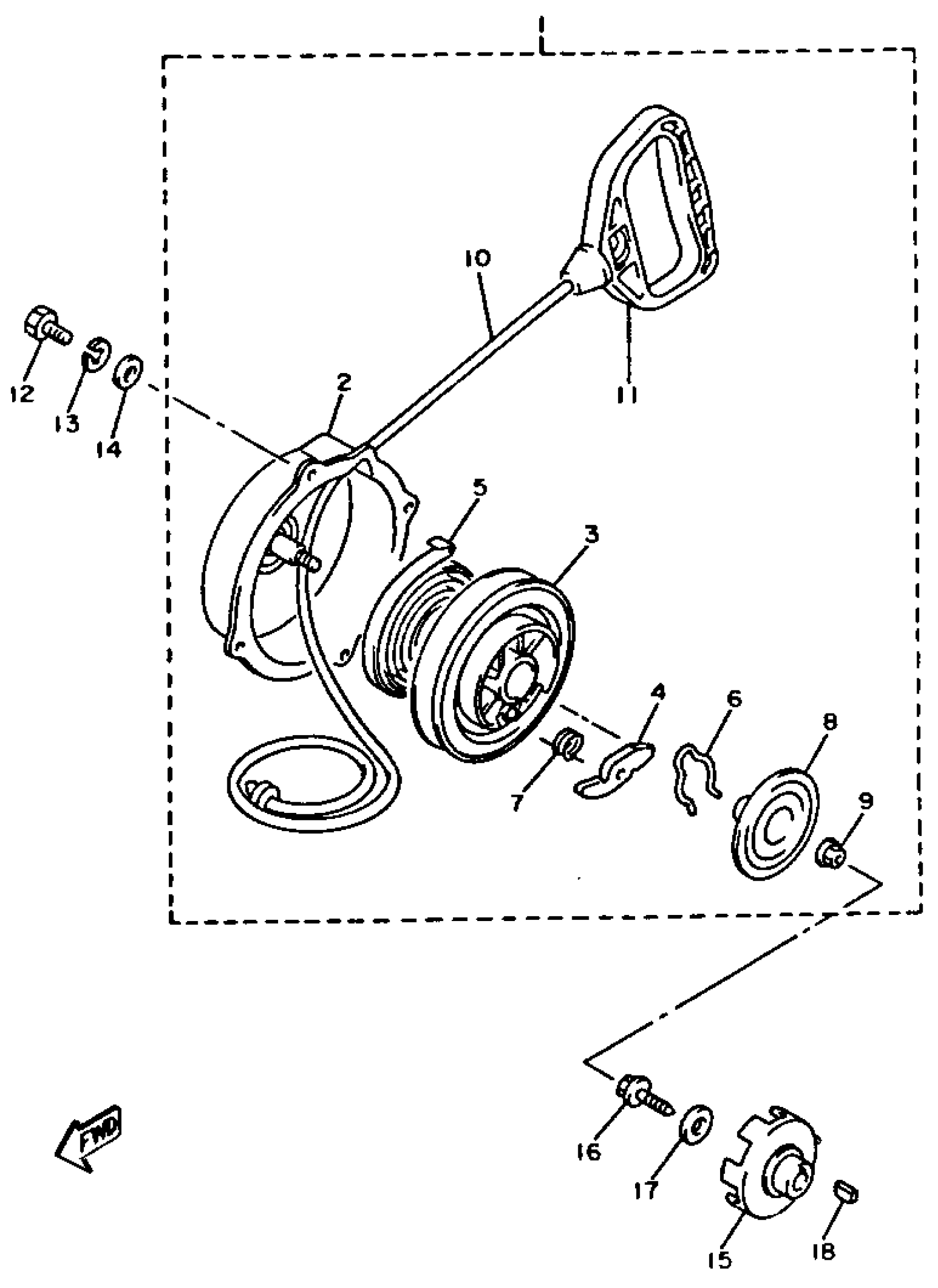

1992 Yamaha Vmax-4 (VX750S) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASY

89A-15710-02-00

1
Out of stock

2

CASE, STARTER

89A-15711-02-00

1
Out of stock

3

DRUM, SHEAVE

24W-15714-00-00

1

$49.89

In stock

4

PAWL, DRIVE

21V-15741-00-00

1

$19.28

In stock

5

SPRING, STARTER

21V-15713-00-00

1
Out of stock

6

SPRING, DRIVE PLATE

21V-15715-00-00

1

$25.72

In stock

7

SPRING

21V-15767-00-00

1

$6.32

In stock

8

PLATE, DRIVE

21V-15716-00-00

1

$23.49

In stock

9

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

10

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1

$27.50

In stock

11

HANDLE, STARTER

8F3-15755-00-00

1

$23.00

In stock

12

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1

$1.35

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

15

PULLEY, STARTER

89A-15723-00-00

1
Out of stock

16

BOLT, WASHER BASED

90105-08677-00

1
Out of stock

17

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

18

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock
