1992 Yamaha Vmax-4 (VX750S) Oil Pump Diagram

← All diagrams

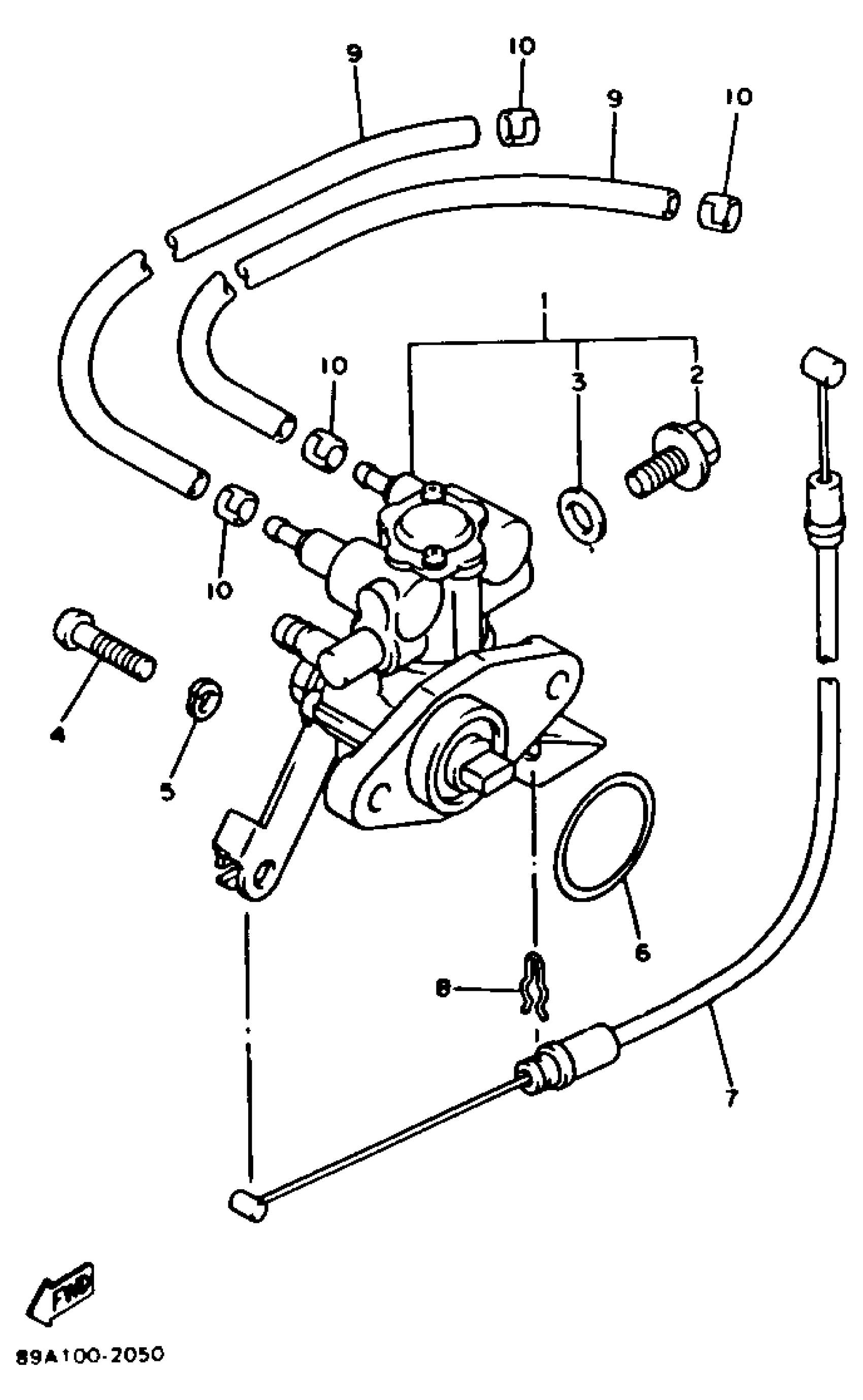

Find the part on the Oil Pump diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Vmax-4 (VX750S) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

89A-13100-03-00

1
Out of stock

2

BOLT, BREATHER

89A-13185-00-00

—

$3.20

In stock

3

. GASKET, BREATHER BOLT

89A-13187-00-00

1
Out of stock

4

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

O-RING(3SB)

93210-20712-00

1

$3.91

In stock

7

PUMP CABLE ASSEMBLY

89A-26320-01-00

1
Out of stock

8

CIRCLIP (2A6)

90468-08086-00

1

$5.62

In stock

9

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

1

$9.15

In stock

10

CLIP (2A6)

90468-02025-00

1

$7.02

In stock
