1992 Yamaha Vmax-4 (VX750S) Exhaust Diagram

← All diagrams

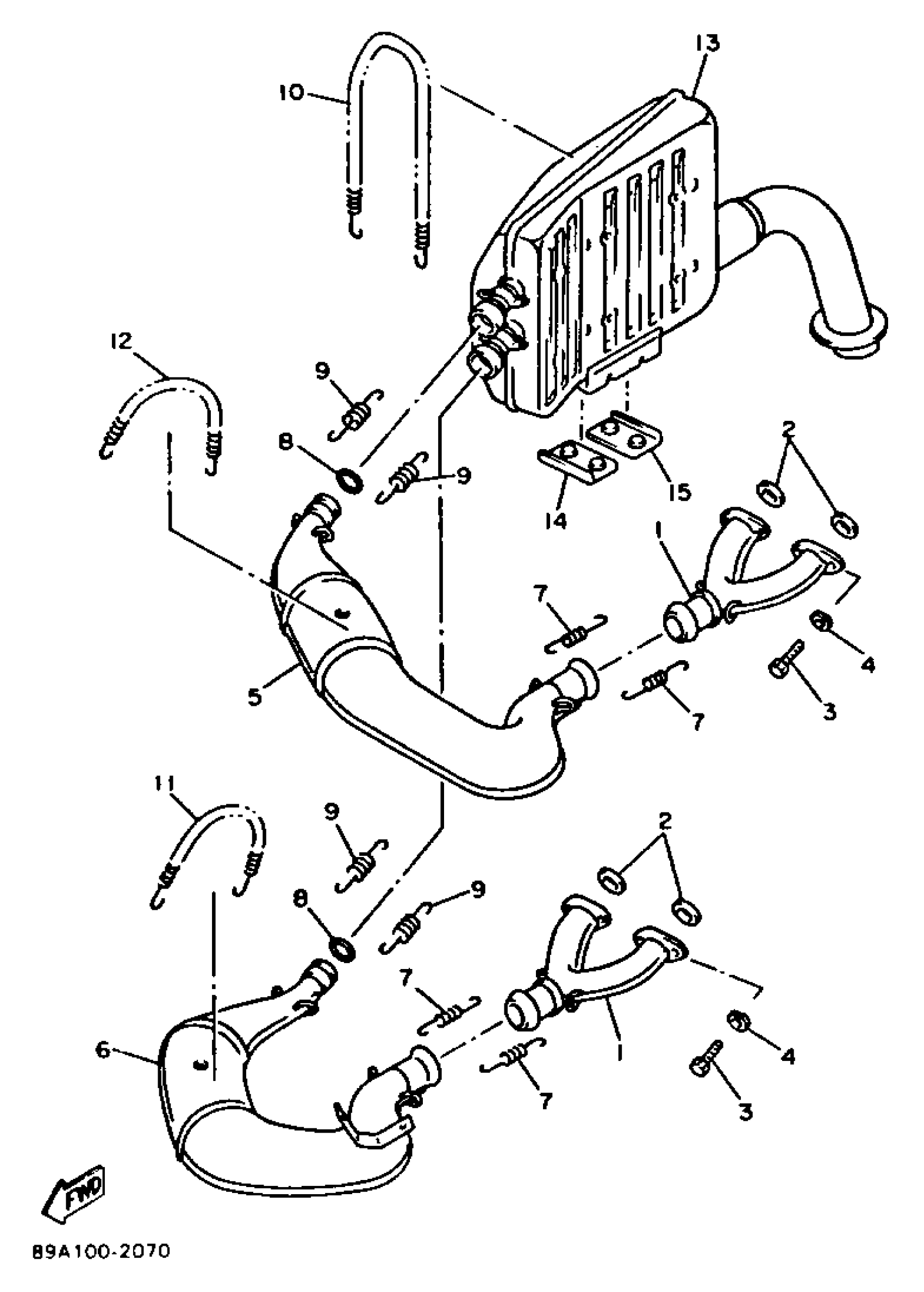

Find the part on the Exhaust diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Vmax-4 (VX750S) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY 1

89A-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

89A-14613-00-00

1
Out of stock

3

BOLT, HEXAGON

97013-08020-00

1
Out of stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

5

EXHAUST PIPE ASY R

8BU-14620-00-00

1
Out of stock

6

EXHAUST PIPE ASY

8BU-14630-00-00

1
Out of stock

7

SPRING, TENSION (8R7)

90506-20272-00

1
Out of stock

8

RING

8F2-14633-00-00

1
Out of stock

9

SPRING, TENSION (8M6)

90506-20093-00

1
Out of stock

10

SPRING, TENSION(83R)

90507-16046-00

—
Out of stock

11

SPRING, TENSION (8BU1)

90506-16494-00

1
Out of stock

12

SPRING, TENSION

90506-16210-00

1
Out of stock

13

SECOND SILENCER, MUFFLER

89A-14640-00-00

1
Out of stock

14

PROTECTOR, MUFFLER 2

89A-14728-00-00

1
Out of stock

15

PROTECTOR, MUFFLER 2

8A5-14728-02-00

1
Out of stock
