1992 Yamaha Vmax-4 (VX750S) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

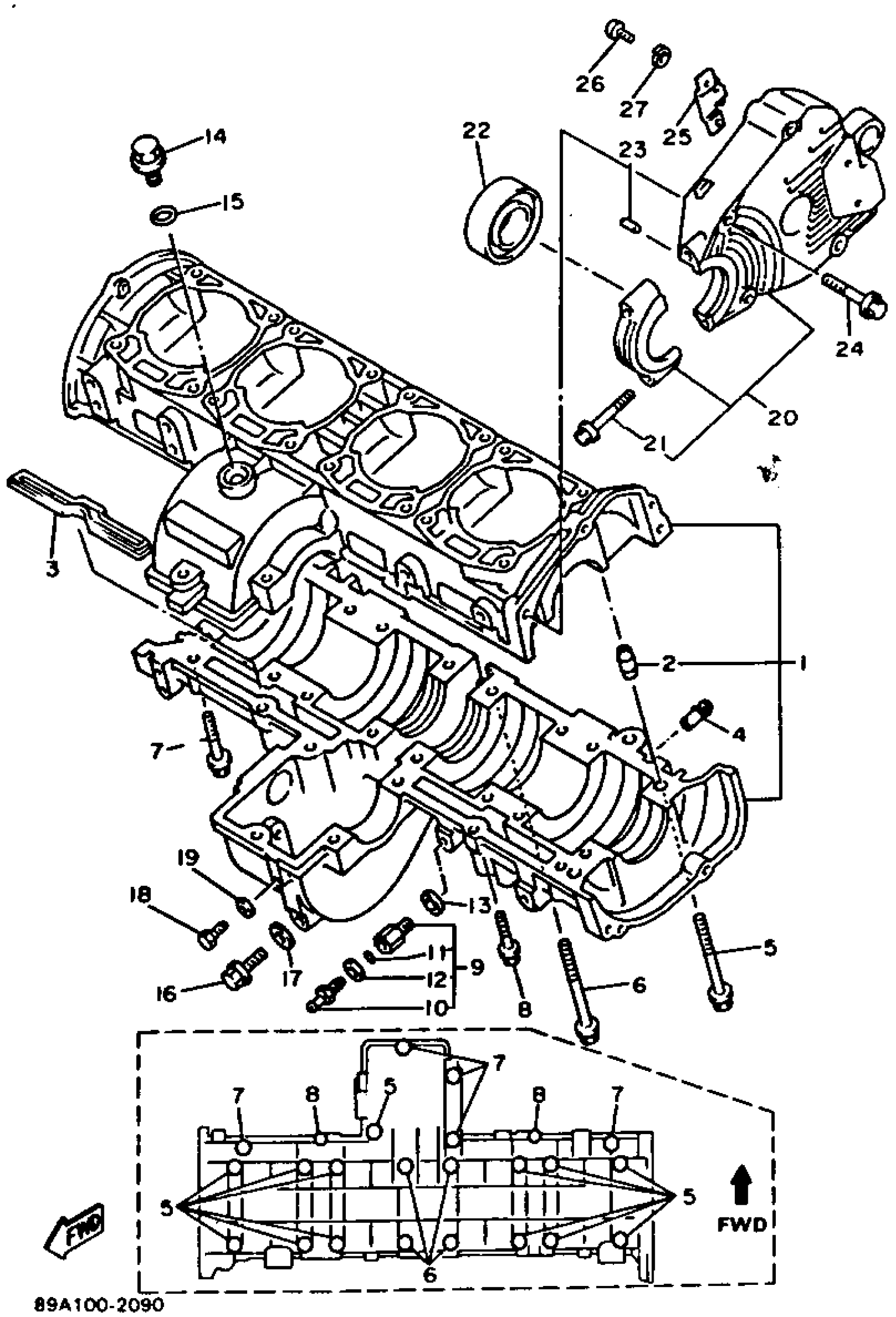

1992 Yamaha Vmax-4 (VX750S) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRRCS,ASY

99999-02595-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

PLATE

89A-15113-00-00

1
Out of stock

4

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

5

BOLT, FLANGE(8BN)

95817-08085-00

1
Out of stock

6

BOLT, FLANGE(8BT)

95817-08095-00

1
Out of stock

7

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

8

BOLT, FLANGE

95817-06035-00

1

$5.37

In stock

9

DRAIN COCK ASSEMBLY.

89A-12560-00-00

1
Out of stock

10

. COCK, DRAIN

89A-12478-00-00

1
Out of stock

11

. O-RING

93210-041A6-00

1
Out of stock

12

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

13

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

14

PLUG, STRAIGHT SCREW

90340-14119-00

1
Out of stock

15

O-RING (26H)

93210-14579-00

1

$5.69

In stock

16

BOLT, FLANGE

95026-10016-00

1
Out of stock

17

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

18

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

19

WASHER, SEAL (7G5)

90210-06006-00

—

$5.72

In stock

20

CRANKCASE COVER ASSEMBLY 1

89A-15410-02-00

1
Out of stock

21

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

22

BEARING(89A)

93306-20640-00

—
Out of stock

23

PIN STRAIGHT 257185520000

90250-06013-00

—
Out of stock

24

BOLT, FLANGE

95817-08055-00

—

$2.82

In stock

25

CLAMP 2

89A-15484-00-00

1
Out of stock

26

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

27

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
