1992 Yamaha Vmax-4 (VX750S) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

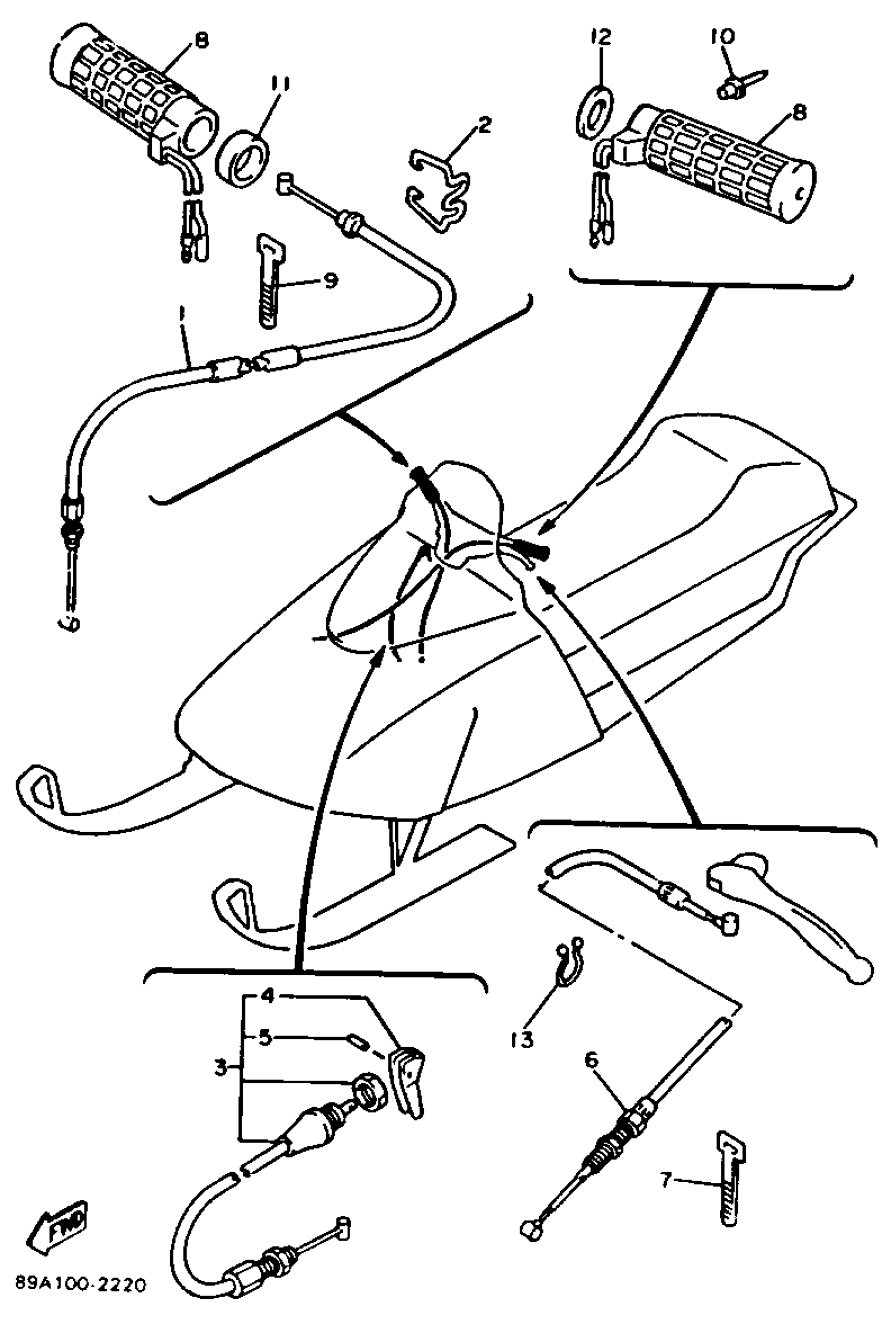

1992 Yamaha Vmax-4 (VX750S) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

89A-26311-00-00

1
Out of stock

2

CLIP, CABLE

8M6-26391-01-00

1
Out of stock

3

STARTER CABLE ASSEMBLY

89A-26330-00-00

1
Out of stock

4

KNOB, STARTER

8U9-26325-00-00

1

$10.03

In stock

5

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

6

CABLE, BRAKE

89A-26340-00-00

1
Out of stock

7

BAND, SWITCH CORD

25G-83936-01-00

1

$4.12

In stock

8

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

9

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

10

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

11

COLLAR

90387-224F9-00

1
Out of stock

12

WASHER, PLAIN

80Y-23843-00-00

1
Out of stock

13

CLAMP

90464-25267-00

1

$5.62

In stock
← Brake SKI →
