1992 Yamaha Vmax-4 (VX750S) SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

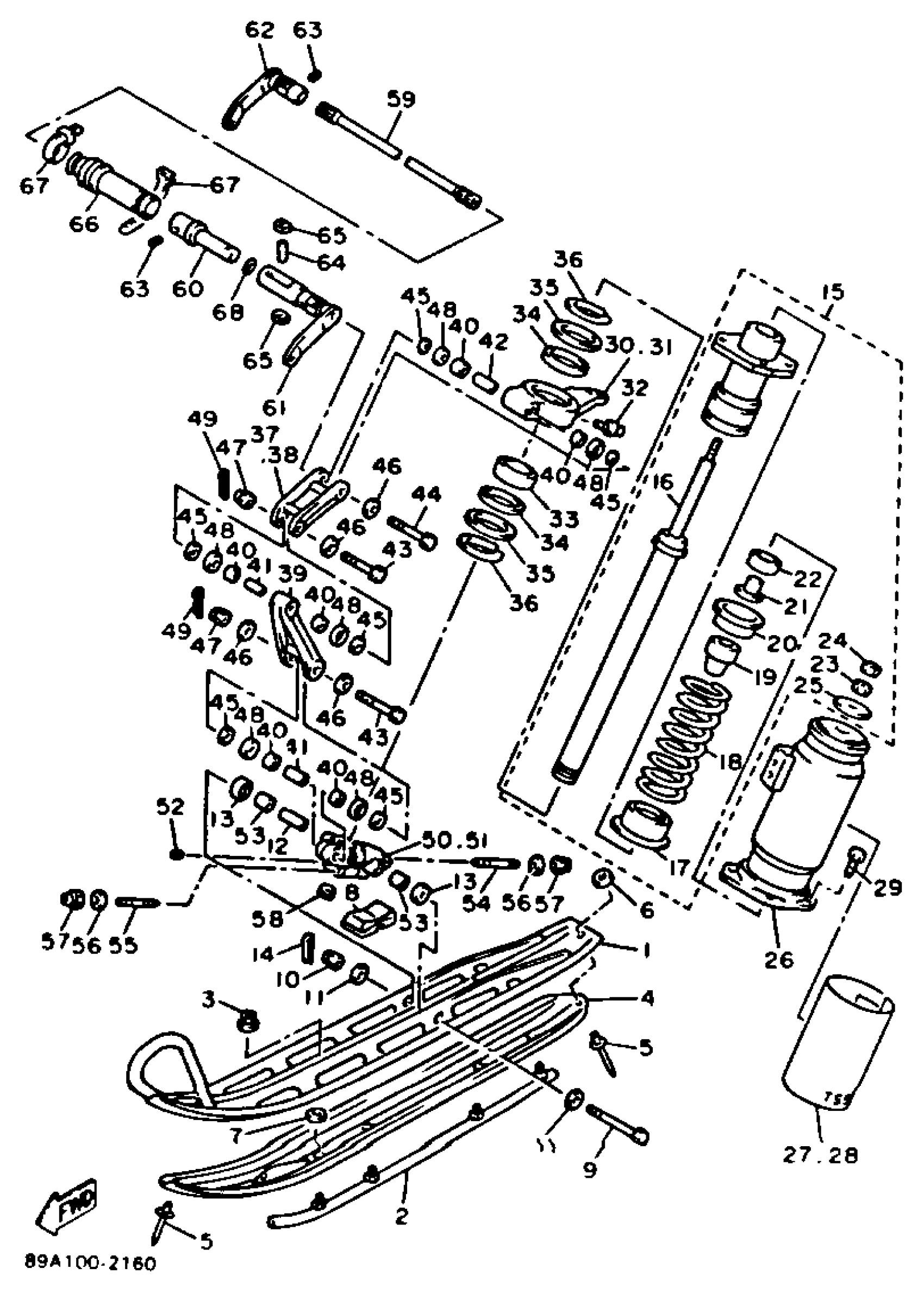

1992 Yamaha Vmax-4 (VX750S) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8AX-23710-00-00

1
Out of stock

2

RUNNER 1 (89A-23731-11-00)

89A-23731-10-XX

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

SKISKINS RED VMAX4

89A-23732-01-XX

1
Out of stock

5

RIVET, BLIND(89A)

90267-48160-00

1

$5.77

In stock

6

WASHER, PLATE

90201-04027-00

1
Out of stock

7

WASHER (853)

90201-08326-00

1

$6.17

In stock

8

STOPPER 1

89A-23743-00-00

1
Out of stock

9

BOLT, WITH HOLE

90102-10076-00

1
Out of stock

10

NUT, NYLON

95707-10300-00

1

$6.68

In stock

11

WASHER(6TA)

92907-10600-00

1
Out of stock

12

COLLAR

90387-102Y0-00

1
Out of stock

13

SPACER

89A-23787-00-00

1
Out of stock

14

PIN, COTTER

91490-20025-00

1

$1.31

In stock

15

ABSORBER ASSEMBLY 1

89A-2376A-00-00

1
Out of stock

16

. DAMPER SUB-ASSEMBLY

89A-22401-00-00

1
Out of stock

17

. SEAT, SPRING 2

89A-23777-00-00

1
Out of stock

18

. SPRING, COMPRESSION

90501-827H6-00

1
Out of stock

19

. BUMP, STOP

89A-22493-00-00

1
Out of stock

20

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

21

COLLAR(82M)

90387-084R1-00

—

$12.29

In stock

22

WASHER

82M-23779-00-00

—

$12.78

In stock

23

. NUT

90170-08220-00

1
Out of stock

24

NUT(6L2)

95333-08600-00

—

$3.20

In stock

25

WASHER, PLATE(82M)

90201-080L1-00

—

$2.67

In stock

26

HOLDER, ABSORBER L

89A-2376J-01-00

1
Out of stock

26

HOLDER, ABSORBER R

89A-2377J-01-00

1
Out of stock

27

EMBLEM 15

89A-77371-00-00

1
Out of stock

28

EMBLEM 16

89A-77372-00-00

1
Out of stock

29

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

30

ARM, OUTSIDE 1

89A-23851-00-00

1
Out of stock

31

ARM, OUTSIDE 2

89A-23852-00-00

1
Out of stock

32

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

33

BUSH, BIMETAL FORMED

90384-55227-00

1
Out of stock

34

OIL SEAL

93109-55063-00

1
Out of stock

35

WASHER, PLATE

90201-555P8-00

1
Out of stock

35

WASHER, PLATE

90201-555P9-00

1
Out of stock

36

CIRCLIP(4BB)

99009-55400-00

—

$4.29

In stock

37

ARM, FRONT 1

89A-2382E-00-00

1
Out of stock

38

ARM, FRONT 4

89A-2383F-00-00

1
Out of stock

39

ARM, FRONT 2

89A-2382F-00-00

1
Out of stock

40

BEARING, STEERING UPPER

89A-23873-00-00

—
Out of stock

41

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

42

COLLAR

90387-101Y8-00

1
Out of stock

43

BOLT, WITH HOLE

90102-10077-00

1
Out of stock

44

BOLT

90101-10743-00

1
Out of stock

45

WASHER, PLATE (8M6)

90201-105A8-00

—
Out of stock

46

WASHER, PLATE (8M6)

90201-115A7-00

—

$2.49

In stock

47

NUT, SELF LOCKING (3G1)

90185-10091-00

—

$6.62

In stock

48

WASHER(82M)

90209-14296-00

—

$9.10

In stock

49

PIN, COTTER

91490-20025-00

1

$1.31

In stock

50

BRACKET 1

89A-2376E-00-00

1
Out of stock

51

BRACKET 2

89A-2377E-00-00

1
Out of stock

52

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

53

—

$9.15

In stock

54

BOLT, STUD 3

95617-08655-00

—

$4.34

In stock

55

BOLT, STUD 3

95617-08640-00

—

$3.98

In stock

56

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

57

NUT, NYLON

95717-08300-00

1

$2.57

In stock

58

CAP 1

89A-23741-00-00

1
Out of stock

59

BAR, STABILIZER FRONT

89A-2386E-00-00

1
Out of stock

60

LINK, STABILIZER FRONT

89A-2386F-00-00

1
Out of stock

61

JOINT, STABILIZER 1

89A-2385L-00-00

1
Out of stock

62

JOINT, STABILIZER2

8BU-2385M-00-00

1
Out of stock

63

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

64

PIN, DOWEL

93605-25223-00

1
Out of stock

65

SLIDER

82M-2386R-00-00

1
Out of stock

66

COVER, STABILIZER FRONT

89A-2386H-00-00

1
Out of stock

67

BAND

1UA-82591-00-00

—
Out of stock

68

O-RING

93210-15751-00

1
Out of stock
