1992 Yamaha Vmax-4 (VX750S) Brake Diagram

← All diagrams

Find the part on the Brake diagram for your 1992 Yamaha Vmax-4 (VX750S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

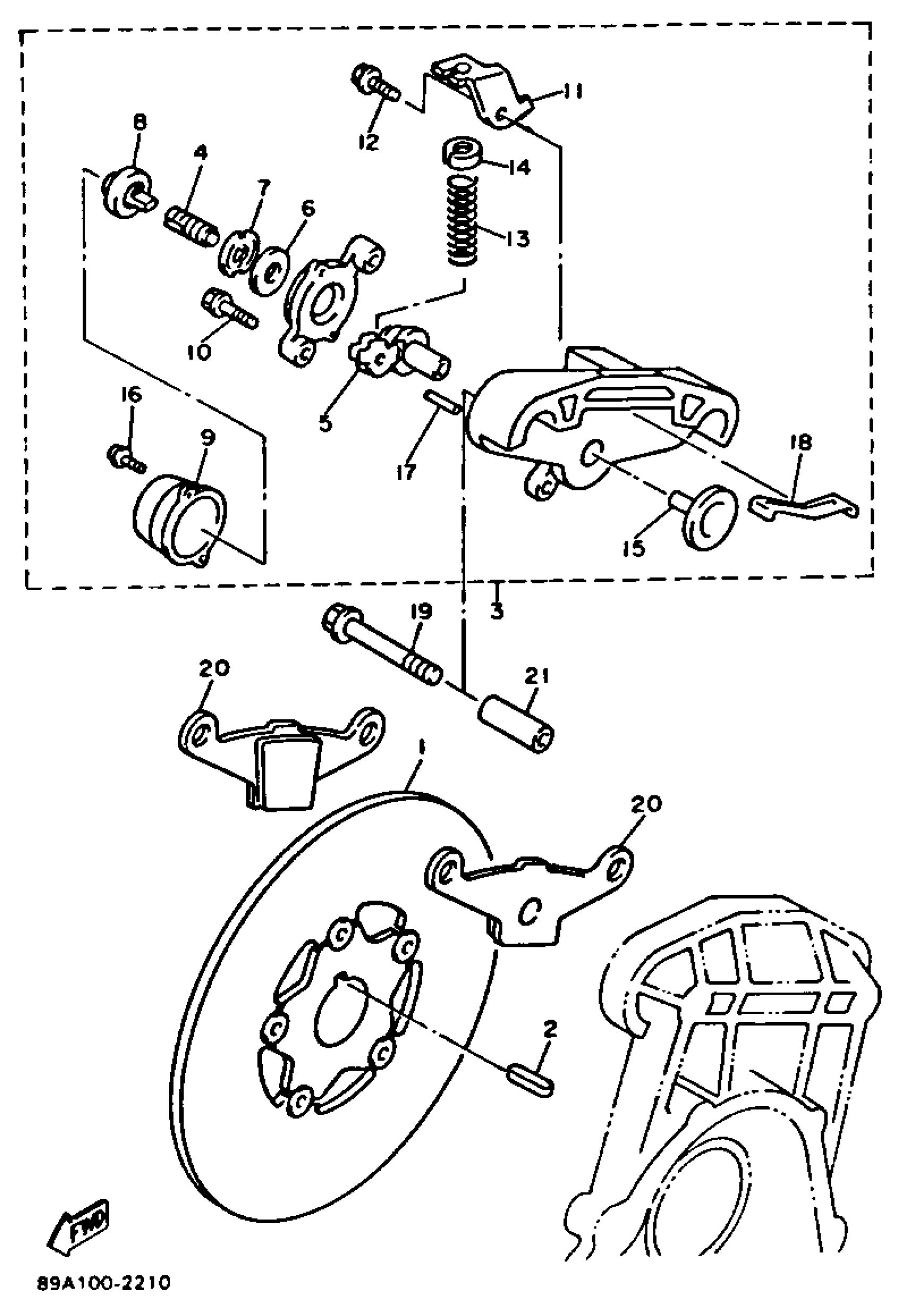

1992 Yamaha Vmax-4 (VX750S) Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISK BRAKE ASSY

8AX-25830-01-00

1
Out of stock

2

KEY, SLIDING(88K)

90281-07004-00

1

$11.12

In stock

3

CALIPER BODY COMP.1

89A-25730-00-00

1
Out of stock

4

SCREW, ADJUSTING 1

86M-25738-00-00

1

$8.91

In stock

5

. LEVER, BRAKE

86M-25726-01-00

1
Out of stock

6

SHIM, CALIPER

86M-25827-00-00

—

$2.37

In stock

7

LOCK, ONE WAY 2

86M-25773-00-00

—

$8.91

In stock

8

. RATCHET, ADJUSTING

89A-25771-00-00

1
Out of stock

9

COVER

86M-25772-00-00

—

$35.52

In stock

10

BOLT, CALIPER

86M-25818-00-00

—

$4.29

In stock

11

. BRACKET, CALIPER

86M-25721-00-00

1
Out of stock

12

BOLT 3

86M-25826-00-00

1

$1.95

In stock

13

. SPRING, COMPRESSION

86M-25743-00-00

1
Out of stock

14

. SPRING, STOPPER

86M-25714-00-00

1
Out of stock

15

. PLATE, BACK UP

89A-25733-00-00

1
Out of stock

16

BOLT, FITTING

86M-25833-00-00

—

$0.28

In stock

17

PIN 2

86M-25744-00-00

—

$1.27

In stock

18

. HOOK, SPRING

89A-25736-00-00

1
Out of stock

19

BOLT, WASHER BASED(4HM)

90105-10737-00

—

$9.82

In stock

20

PAD, LINING COMP.

89A-25811-01-00

—

$35.19

In stock

21

COLLAR

90387-105Y1-00

1
Out of stock
← Track Suspension 2 Control Cable →
