2002 Yamaha Vmax 700ER (VX700ERG) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 2002 Yamaha Vmax 700ER (VX700ERG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

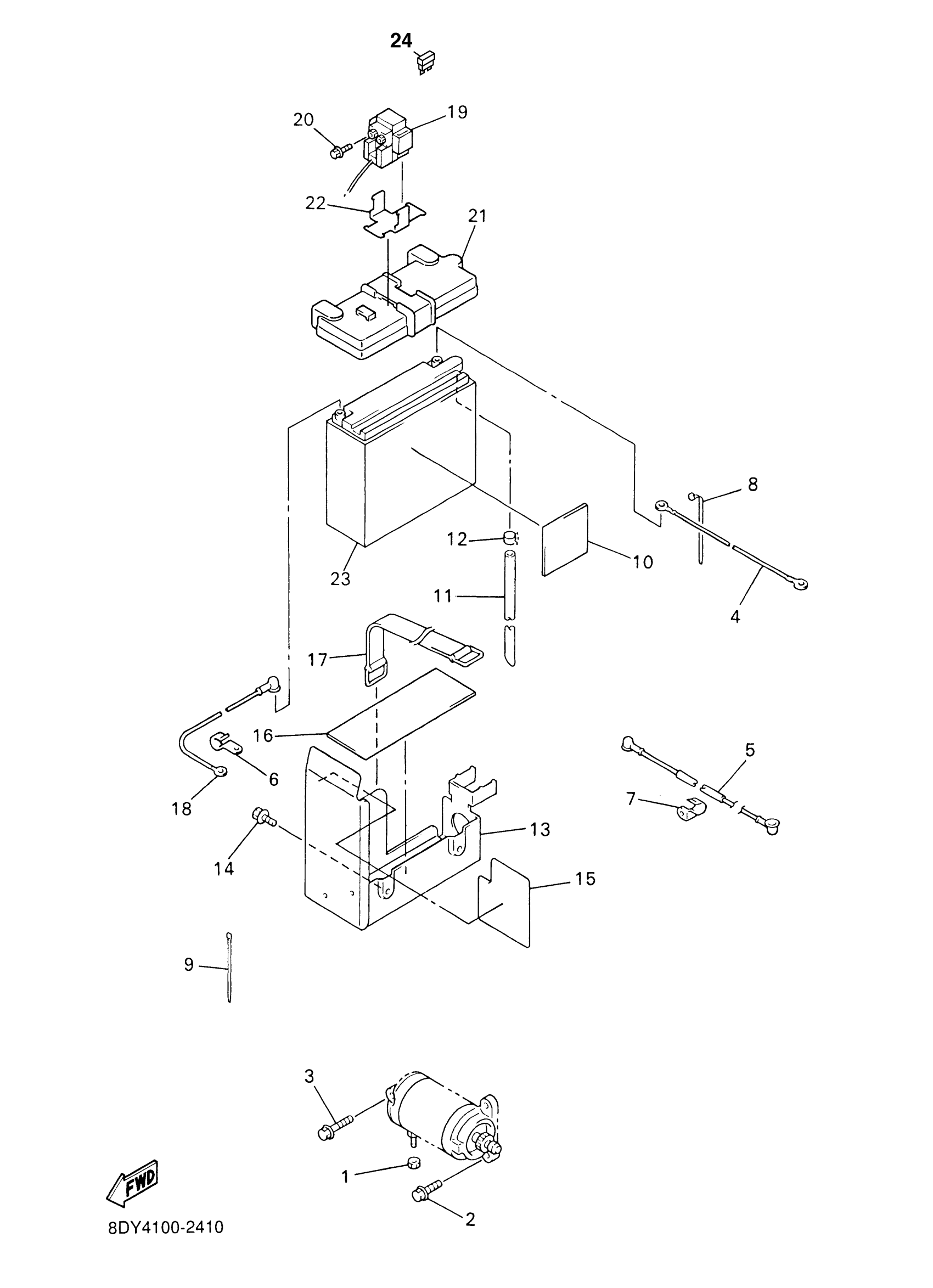

2002 Yamaha Vmax 700ER (VX700ERG) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NUT(6TA)

95317-06600-00

1

$2.69

In stock

2

BOLT, SMALL FLANGE

95027-08030-00

1
Out of stock

3

BOLT, FLANGE(4ES)

95027-08080-00

—
Out of stock

4

. WIRE, MINUS LEAD

8DY-82116-00-00

1
Out of stock

5

. WIRE, LEAD

8DY-82117-00-00

1
Out of stock

6

CLAMP

90462-08016-00

1
Out of stock

7

. CLAMP

90465-10381-00

1
Out of stock

8

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

9

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

10

DAMPER

8CW-82176-00-00

—

$6.14

In stock

11

PIPE (L320)

8CW-8235W-01-00

1
Out of stock

12

CLIP(41W)

90467-08092-00

1

$6.86

In stock

13

. BRACKET, BATTERY

8DM-2199G-00-00

1
Out of stock

14

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

15

. SHIELD, HEAT

8CW-2199H-00-00

1
Out of stock

16

. SEAT, BATTERY

8DM-82122-00-00

1
Out of stock

17

BAND, BATTERY

8DM-82131-10-00

—

$12.75

In stock

18

WIRE, PLUS LEAD

8DY-82115-00-00

—

$21.60

In stock

19

—

$99.43

In stock

20

BOLT, SMALL FLANGE

95027-06008-00

—

$5.60

In stock

21

COVER, BATTERY

8DM-82129-01-00

—

$51.09

In stock

22

. HOLDER, RELAY

8CY-81952-00-00

1
Out of stock

23

Y50N18LA YUASA BATTERY

Y50-N18LA-00-00

1
Out of stock

24

FUSE (12V 30A)

1AE-82151-00-00

—
Out of stock
