2002 Yamaha Vmax 700ER (VX700ERG) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2002 Yamaha Vmax 700ER (VX700ERG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

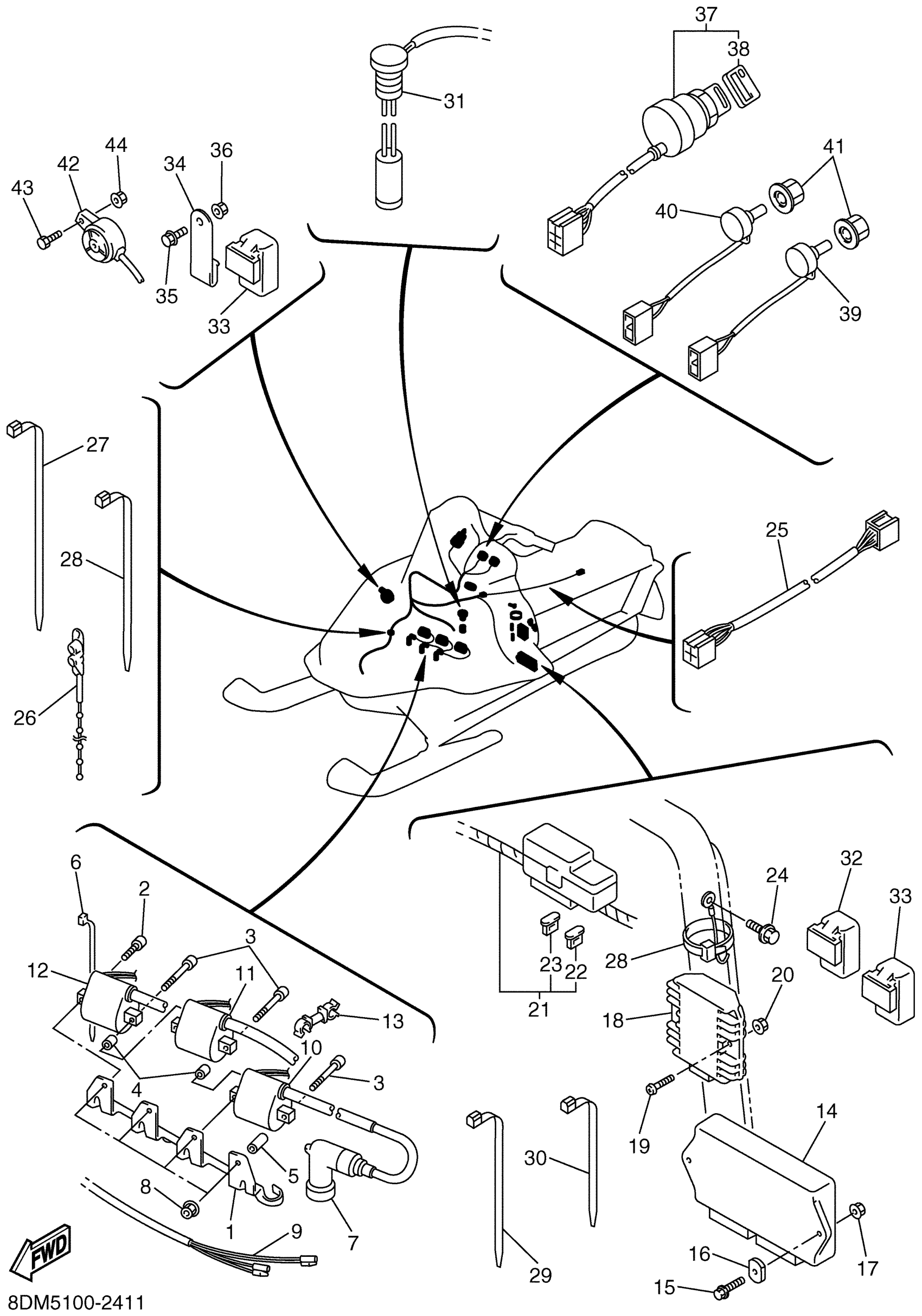

2002 Yamaha Vmax 700ER (VX700ERG) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, IGNITION COIL

8DM-82316-00-00

—

$26.98

In stock

2

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

3

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

4

COLLAR

90387-07020-00

1

$6.17

In stock

5

COLLAR, LEVER 1

36Y-83913-01-00

1

$8.94

In stock

6

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

7

PLUG CAP ASSY

8DF-82370-00-00

1

$35.28

In stock

8

NUT,SELF-LOCKING

95607-06200-00

1

$10.25

In stock

9

WIRE, SUB LEAD

8DM-82509-00-00

1
Out of stock

10

IGNITION COIL ASSY

8DF-82310-10-00

1
Out of stock

11

IGNITION COIL ASSY

8DF-82310-10-00

1
Out of stock

12

IGNITION COIL ASSY

8DM-82310-30-00

1

$122.75

In stock

13

CLAMP

90464-10002-00

1
Out of stock

14

C.D.I. UNIT ASSY

8DM-85540-10-00

—

$650.99

In stock

14

C.D.I. UNIT ASSY

8EA-85540-00-00

1
Out of stock

15

BOLT, FLANGE

95817-06020-00

—

$2.69

In stock

16

NUT,SPEC'L SHAPE

90179-06W01-00

1
Out of stock

17

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

18

RECTIFIER & REGULATOR ASSY

4JH-81960-01-00

—
Out of stock

19

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

20

NUT, FLANGE(4MV)

95707-06500-00

—

$0.78

In stock

21

WIRE HARNESS ASSY

8DM-82590-10-00

1
Out of stock

22

FUSE (10A)

42X-82151-00-00

—

$2.16

In stock

23

FUSE (20A)

2GV-82151-00-00

—
Out of stock

24

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

25

WIRE, LEAD

8DM-8471G-00-00

1
Out of stock

26

CLAMP

90464-20031-00

1

$2.62

In stock

27

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

28

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

29

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock

30

CLAMP

90464-13077-00

—

$6.68

In stock

31

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

1

$44.61

In stock

32

RELAY ASSY

5DM-81950-01-00

—

$24.72

In stock

33

RELAY ASSY (8DM-00)

8DM-81950-00-00

—

$36.72

In stock

34

. BRACKET 3

8DM-85152-00-00

1
Out of stock

35

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

36

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock

37

MAIN SWITCH ASSY

8DM-82510-00-00

1
Out of stock

38

CAP, KEY

526-82579-00-00

—

$6.72

In stock

39

RESISTOR, VARIABLE

8DM-87283-00-00

1
Out of stock

40

RESISTOR, VARIABLE

8DM-87283-10-00

1
Out of stock

41

KNOB, VARIABLE RESISTOR

8DM-87284-00-00

—

$23.82

In stock

42

BUZZER

8CW-83383-00-00

—

$141.28

In stock

43

BOLT(3JK)

97027-05020-00

—

$2.48

In stock

44

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
