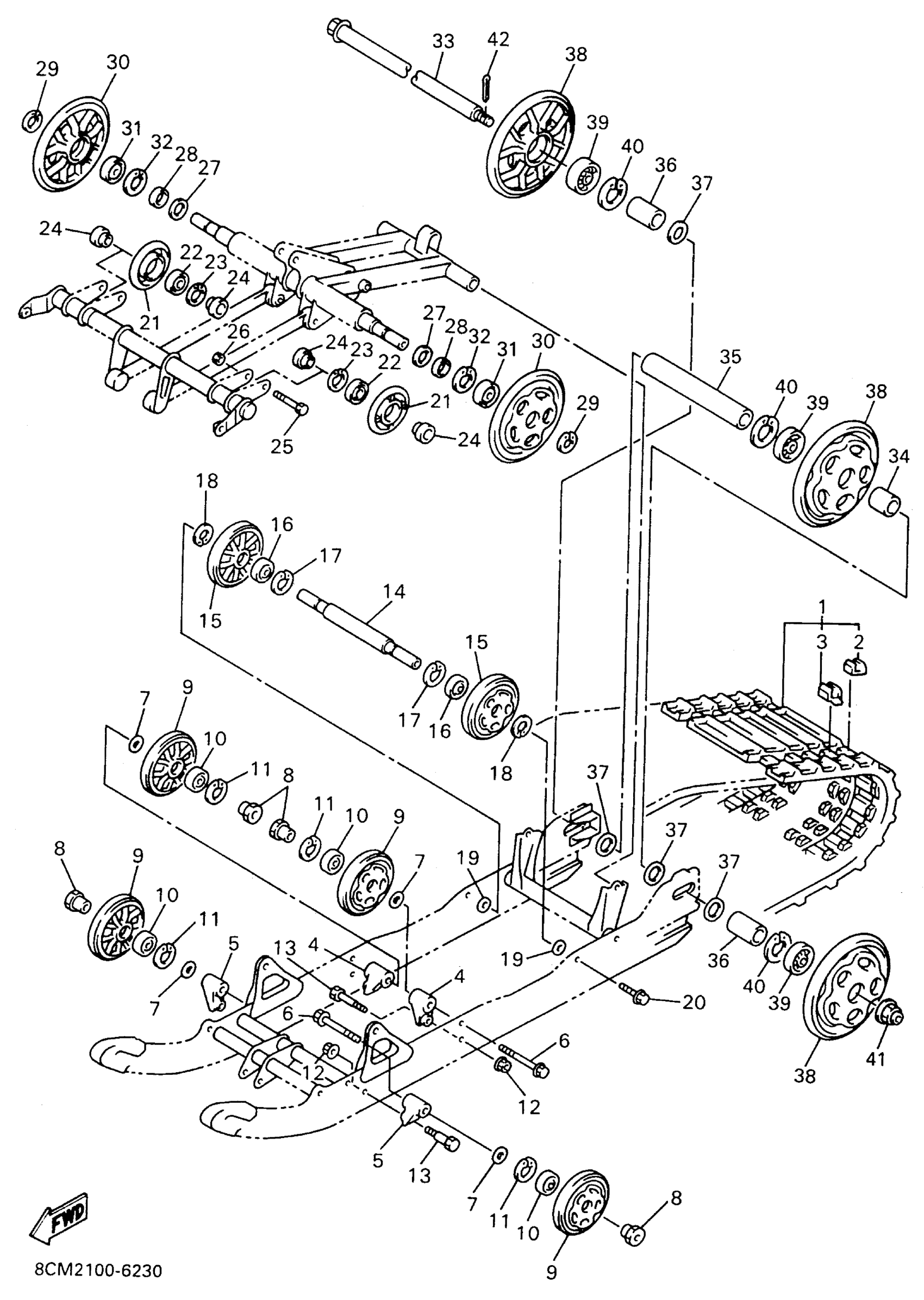

Yamaha VX600XTW (VMAX 600 XT PROACTION PLUS) 1996 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8CA-47110-10-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

3

METAL, SLIDE

89A-47115-01-00

Unavailable

4

BRACKET 7

8CM-47419-10-00

$24.29

5

BRACKET 7

8CM-47419-20-00

Unavailable

6

BOLT, FLANGE

90105-10029-00

$3.18

7

WASHER, PLATE (17K)

90201-106F2-00

$7.15

8

NUT(8CM)

90179-10670-00

$11.33

9

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

10

BEARING(8AB)

93306-00444-00

$34.26

11

CIRCLIP(5U8)

99009-42500-00

$6.32

12

NUT, SELF-LOCKING

90185-08169-00

$6.62

13

BOLT(8CM)

90101-08774-00

$4.56

14

SHAFT 4

84J-47486-00-00

Unavailable

15

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

16

BEARING(8AB)

93306-00444-00

$34.26

17

CIRCLIP(5U8)

99009-42500-00

$6.32

18

CIRCLIP(1AR)

99009-20400-00

Unavailable

19

WASHER, PLATE (17K)

90201-106F2-00

$7.15

20

BOLT, FLANGE

95817-10030-00

Unavailable

21

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

22

BEARING(8AB)

93306-00444-00

$34.26

23

CIRCLIP(5U8)

99009-42500-00

$6.32

24

COLLAR

90387-1007W-00

Unavailable

25

BOLT(88R)

90101-10738-00

Unavailable

26

NUT, U

95617-10100-00

Unavailable

27

WASHER, PLATE(1KE)

90201-207J5-00

Unavailable

28

COLLAR(8AB)

90387-2004V-00

Unavailable

29

CIRCLIP(1AR)

99009-20400-00

Unavailable

30

SUSPENSION WHEEL COMP.

88R-47320-00-00

Unavailable

31

BEARING(8AB)

93306-00444-00

$34.26

32

CIRCLIP(5U8)

99009-42500-00

$6.32

33

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

34

COLLAR

90387-204R3-00

Unavailable

35

COLLAR

90387-20023-00

Unavailable

36

COLLAR

90387-20022-00

Unavailable

37

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

38

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

39

BEARING(8AE)

93306-20469-00

Unavailable

40

CIRCLIP(48Y)

99009-47500-00

Unavailable

41

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

42

PIN, COTTER

91490-30030-00

Unavailable
