1996 Yamaha Vmax 600 XT Proaction Plus (VX600XTW) Alternate Reverse Gear Kit Diagram

← All diagrams

Find the part on the Alternate Reverse Gear Kit diagram for your 1996 Yamaha Vmax 600 XT Proaction Plus (VX600XTW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

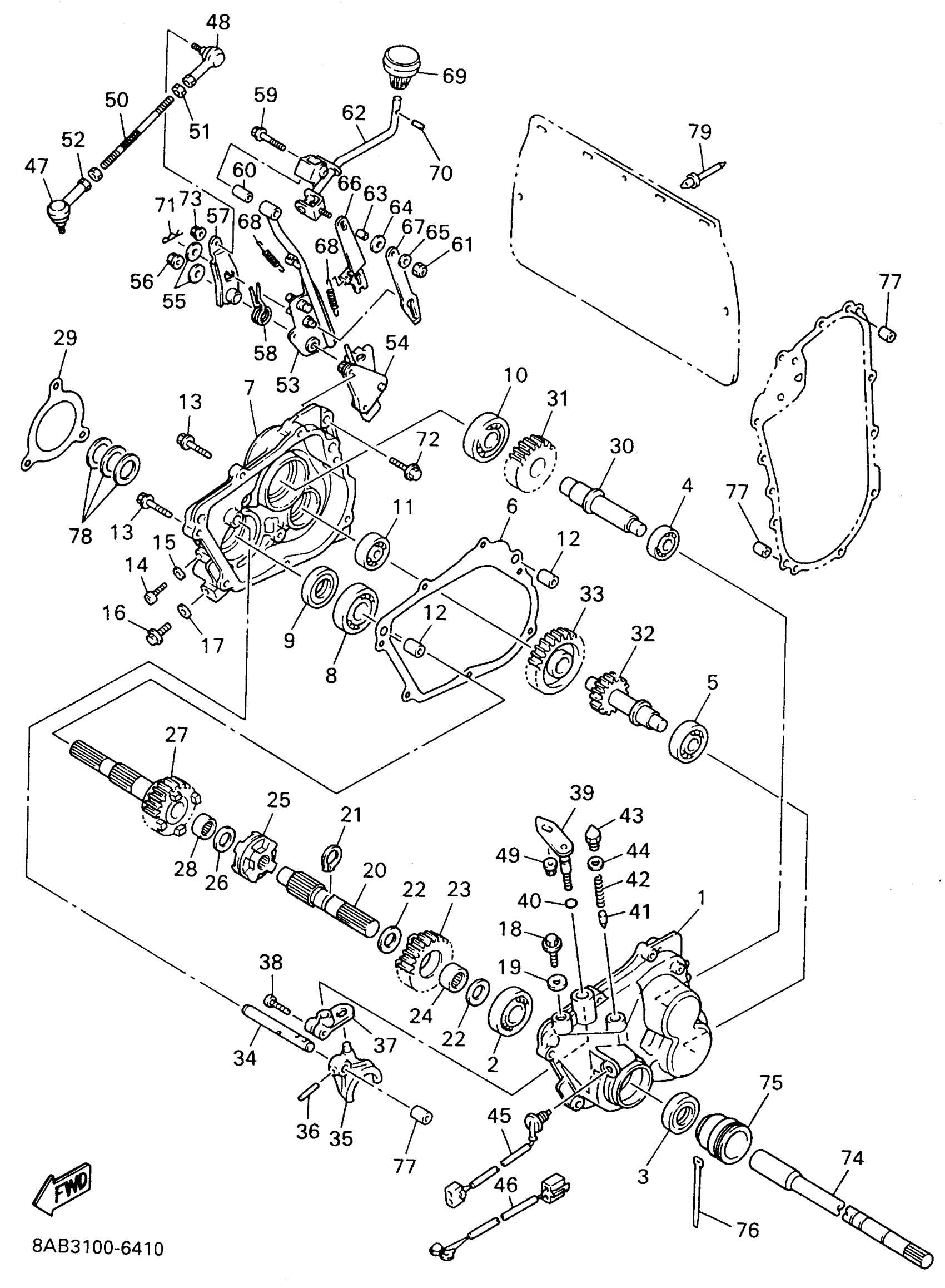

1996 Yamaha Vmax 600 XT Proaction Plus (VX600XTW) Alternate Reverse Gear Kit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE 1

8AB-46291-00-00

1
Out of stock

2

BEARING (80N)

93306-20570-00

—
Out of stock

3

OIL SEAL (25X44X6-810)

93102-25081-00

1
Out of stock

4

BEARING (7X9)

93306-20327-00

1
Out of stock

5

BEARING(4ED)

93306-20468-00

1
Out of stock

6

GASKET 1

8AB-15455-00-00

1
Out of stock

7

CASE 2

8AB-46292-01-00

1
Out of stock

8

BEARING (80N)

93306-20570-00

—
Out of stock

9

OIL SEAL (25X44X6-810)

93102-25081-00

1
Out of stock

10

BEARING (30X)

93306-20447-00

1
Out of stock

11

BEARING (7X9)

93306-20327-00

1
Out of stock

12

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

13

BOLT, FLANGE

95817-06030-00

1
Out of stock

14

BOLT,SOCKET

91317-06012-00

1
Out of stock

15

WASHER, SEAL (7G5)

90210-06006-00

1
Out of stock

16

BOLT, FLANGE

95817-08012-00

—
Out of stock

17

WASHER, SEAL(8AB)

90210-08017-00

—
Out of stock

18

BOLT, FLANGE(3HP)

95817-10016-00

—
Out of stock

19

WASHER SEAL 256111730200

90210-10004-00

—
Out of stock

20

AXLE, MAIN

8AB-17411-00-00

1
Out of stock

21

CIRCLIP (256)

93410-25017-00

—
Out of stock

22

WASHER, PLATE(8BB)

90201-250R9-00

—
Out of stock

23

GEAR, REVERSE PINION 1

8BB-17143-00-00

1
Out of stock

24

BEARING, CYLINDRICAL

93317-42575-00

1
Out of stock

25

DOG, TRANSMISSION SHIFT

8BB-17492-00-00

1
Out of stock

26

WASHER, PLATE(83R)

90201-224L4-00

—
Out of stock

27

SHAFT

8AB-17523-00-00

1
Out of stock

28

BEARING, CYLINDRICAL (33A)

93317-32241-00

—
Out of stock

29

GASKET

8AB-47544-00-00

1
Out of stock

30

AXLE, IDLE

8AB-17432-00-00

1
Out of stock

31

GEAR, MIDDLE DRIVEN

8BB-17583-00-00

1
Out of stock

32

AXLE, COUNTER

8AB-17431-00-00

1
Out of stock

33

GEAR, REVERSE WHEEL1

8BB-17243-00-00

1
Out of stock

34

BAR, SHIFT FORK GUIDE 1

8AB-18531-00-00

1
Out of stock

35

FORK, SHIFT 1

88T-18511-00-00

1
Out of stock

36

PIN, SPRING (91609-40025-00)

91609-40024-00

1
Out of stock

37

LEVER

8CL-18191-00-00

1
Out of stock

38

BOLT,SOCKET

91317-06020-00

—
Out of stock

39

LEVER, SHIFT 3

8BB-18151-00-00

1
Out of stock

40

O-RING (1J7)

93210-09350-00

—
Out of stock

41

PIN

90249-07217-00

1
Out of stock

42

SPRING, COMPRESSION(88K)

90501-124G3-00

—
Out of stock

43

PLUG, STRAIGHT SCREW

90340-10136-00

1
Out of stock

44

WASHER, PLATE(56J)

90201-106H5-00

—
Out of stock

45

NEUTRAL SWITCH ASSY

4KD-82540-00-00

—
Out of stock

46

WIRE, SUB-LEAD

87L-82318-01-00

—
Out of stock

47

JOINT, UNIVERSAL 2

J45-23845-00-00

—
Out of stock

48

JOINT 2

88T-18157-00-00

—
Out of stock

49

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

50

JOINT, ROD 1

88T-18116-01-00

—
Out of stock

51

NUT (2H9)

90170-06228-00

—
Out of stock

52

NUT(JN5)

95317-06700-00

—
Out of stock

53

ARM, SHIFT

8BB-18112-00-00

1
Out of stock

54

GUIDE, PLATE STOPPER

8BB-18161-00-00

1
Out of stock

55

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

56

NUT, NYLON

95717-08300-00

—
Out of stock

57

LEVER, SHIFT 2

8BB-18122-00-00

1
Out of stock

58

SPRING

8BB-18123-00-00

1
Out of stock

59

BOLT, FLANGE

95817-06035-00

—
Out of stock

60

. COLLAR

90387-06605-00

1
Out of stock

61

NUT, NYLON

95707-05300-00

—
Out of stock

62

LEVER, SHIFT 4

8CL-18152-00-00

1
Out of stock

63

COLLAR (26H)

90387-053H3-00

—
Out of stock

64

WASHER PLATE 122217250000

90202-07015-00

—
Out of stock

65

WASHER, PLATE(39X)

90201-057H5-00

—
Out of stock

66

GUIDE, SHIFT

8BB-18172-00-00

1
Out of stock

67

GUIDE, SHIFT RETURN SPRING

8BB-18153-00-00

1
Out of stock

68

SPRING 214-14683-01

90506-12029-00

—
Out of stock

69

KNOB, SHIFT LEVER

8CL-18174-00-00

—
Out of stock

70

PIN,SPRING (648)

91690-40022-00

—
Out of stock

71

CLIP (7U6)

90468-18121-00

—
Out of stock

72

BOLT, FLANGE(6TA)

95817-08030-00

—
Out of stock

73

NUT,SELF-LOCKING

95607-06200-00

—
Out of stock

74

SHAFT, SECONDARY

8CL-17681-91-00

1
Out of stock

75

CAP

8CL-47529-01-00

1
Out of stock

76

BAND

1UA-82591-00-00

—
Out of stock

77

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

78

WASHER, PLATE (248-27226-00)

90201-25289-00

—
Out of stock

79

RIVET, BLIND (8R6)

90267-48086-00

—
Out of stock
