- Vmax 600 XT Proaction Plus (VX600XTW)
Primary Sheave
1996 Yamaha Vmax 600 XT Proaction Plus (VX600XTW) Primary Sheave Diagram

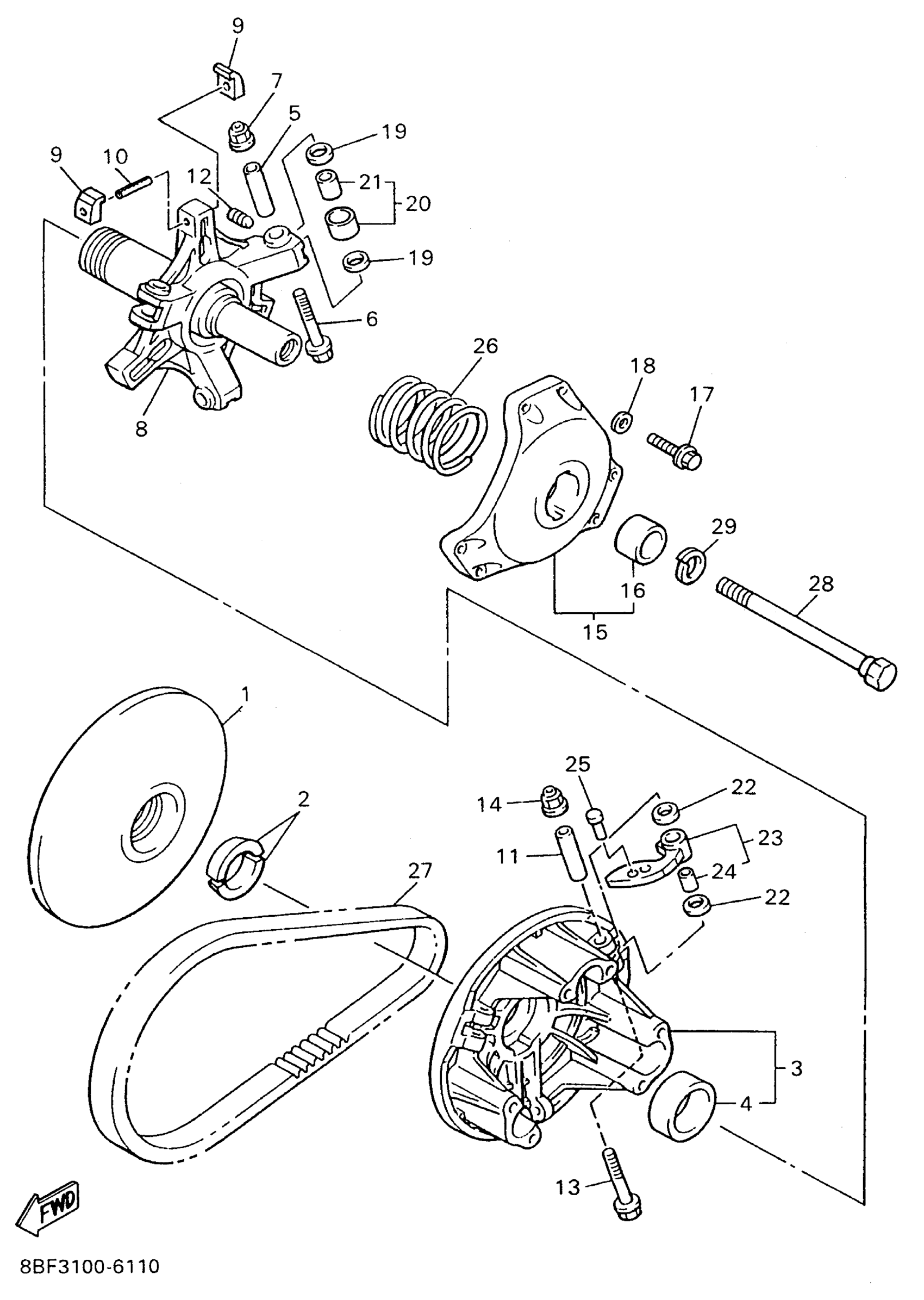

Find the part on the Primary Sheave diagram for your 1996 Yamaha Vmax 600 XT Proaction Plus (VX600XTW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SHEAVE, PRIMARY FIXED
8BV-17611-19-00
8
SPIDER COMP.
8CA-17640-12-00
12
BOLT, SET
90113-05041-00
16
. BUSH, BIMETAL FORMED
90384-28244-00
19
WASHER, PLATE(8BV)
90202-09227-00
20
ROLLER, COMP
8CR-17624-20-00
21
ROLLER BUSH
90380-09239-00
22
WASHER, PLATE(88R)
90202-08204-00
24
. BUSH, SOLID
90380-08244-00
25
RIVET, COUNTER SUNK (8G8)
90261-06017-00
27
V-BELT
89L-17641-02-00
