1995 Yamaha Vmax 600 (VX600V) Radiator Hose Diagram

← All diagrams

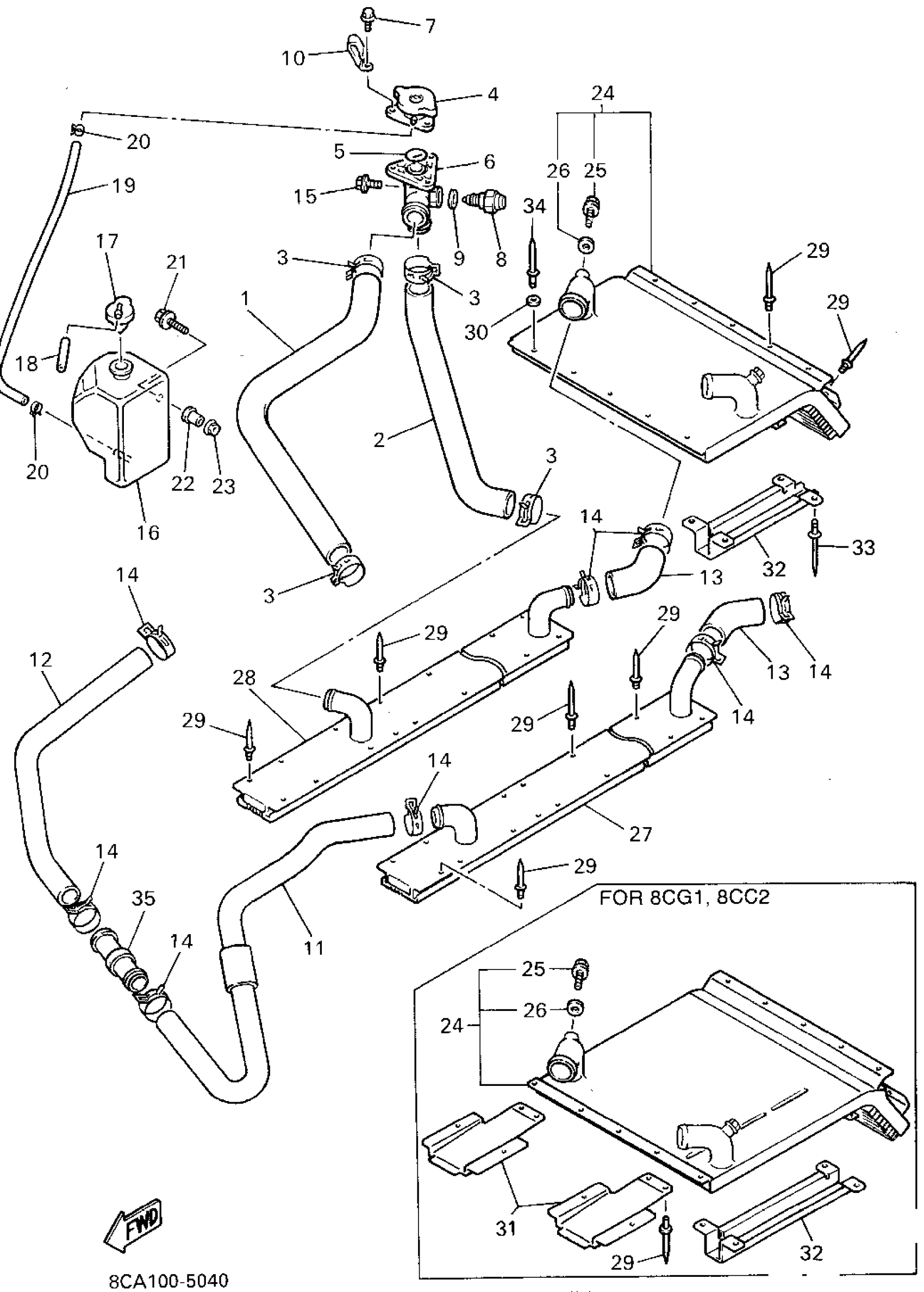

Find the part on the Radiator Hose diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Vmax 600 (VX600V) Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 2

8AB-12482-00-00

1
Out of stock

2

PIPE 3

8AB-12483-00-00

1
Out of stock

3

CLIP (8M6)

90467-28046-00

1
Out of stock

4

SUPT, FILLER NECK

1FK-12591-00-00

1
Out of stock

5

O-RING(1KT)

93210-27778-00

1
Out of stock

6

JOINT, HOSE 1

86M-12581-00-00

1
Out of stock

7

BOLT, FLANGE

95817-06016-00

1
Out of stock

8

THERMO SWITCH ASSEMBLY

83M-82560-01-00

1
Out of stock

9

GASKET

90430-16048-00

1
Out of stock

10

CLAMP(51Y)

90465-08277-00

—
Out of stock

11

PIPE 4

8AB-12484-10-00

1
Out of stock

12

PIPE 5

8AB-12485-10-00

1
Out of stock

13

PIPE 6

89L-12476-00-00

1
Out of stock

13

PIPE 6

8AB-12476-00-00

1
Out of stock

14

CLIP (8M6)

90467-28046-00

1
Out of stock

15

BOLT, FLANGE

95817-06016-00

1
Out of stock

16

TANK, RECOVERY

8AB-21871-00-00

1
Out of stock

17

CAP

89A-21815-00-00

—
Out of stock

18

HOSE (L70)

90445-112E0-00

—
Out of stock

19

HOSE (L420)

90445-092K1-00

—
Out of stock

20

CLIP (8A1)

90467-09026-00

—
Out of stock

21

BOLT, FLANGE

95817-06020-00

—
Out of stock

22

COLLAR(3SX)

90387-065X7-00

—
Out of stock

23

NUT (21W)

90179-06403-00

1
Out of stock

24

HEAT EXCHANGER ASY

89L-12440-01-00

1
Out of stock

24

HEAT EXCHANGER ASSEMBLY

8AB-12440-00-00

1
Out of stock

25

BOLT, FLANGE

95817-06012-00

—
Out of stock

26

GASKET (4V2)

90430-06166-00

—
Out of stock

27

HEAT EXCHANGER

8AB-1240E-02-00

1
Out of stock

28

HEAT EXCHANGER

8AB-1240F-02-00

1
Out of stock

29

RIVET, BLIND(3JB)

90267-48095-00

—
Out of stock

29

RIVET, BLIND(8CR)

90267-47186-00

—
Out of stock

30

WASHER, PLATE

90201-05023-00

—
Out of stock

31

PROTECTOR

8BN-12498-01-00

1
Out of stock

32

PROTECTOR, FRAME

89A-21978-00-00

1
Out of stock

32

PROTECTOR, FRAME

89L-21978-00-00

1
Out of stock

33

RIVET, BLIND

90267-48126-00

1
Out of stock

34

RIVET, BLIND(3LC)

90267-48147-00

—
Out of stock

35

JOINT, HOSE 1

8M6-12581-00-00

1
Out of stock
