1995 Yamaha Vmax 600 (VX600V) Crankshaft Piston Diagram

← All diagrams

Find the part on the Crankshaft Piston diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

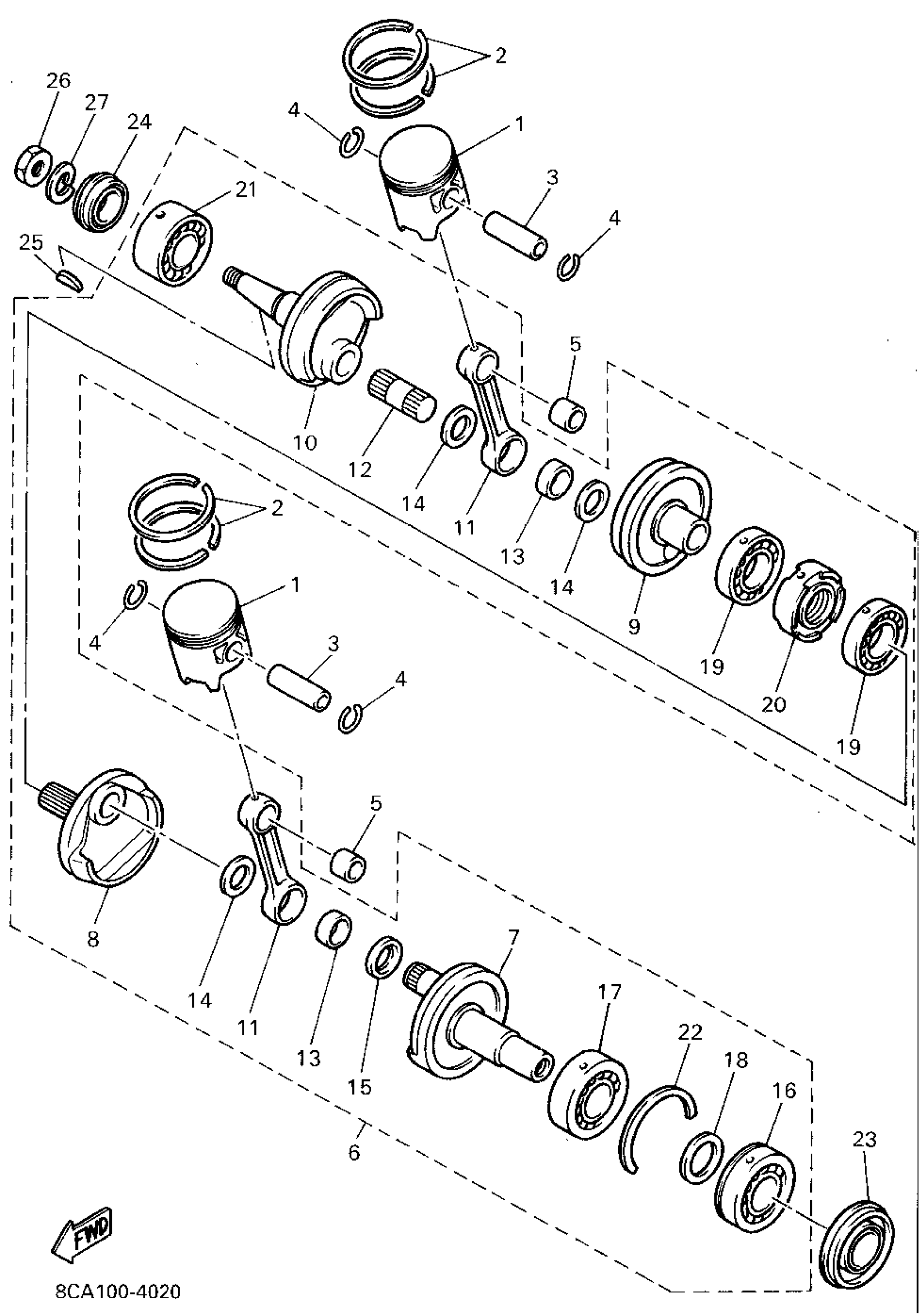

1995 Yamaha Vmax 600 (VX600V) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON

8CA-11631-10-68

—
Out of stock

2

PISTON RING SET (STD)

8CA-11603-00-00

—
Out of stock

3

PIN, PISTON

8CA-11633-00-00

1
Out of stock

4

CIRCLIP (8H0)

93450-21053-00

1
Out of stock

5

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

1
Out of stock

6

CRNKSHT ASY

8AY-11400-03-00

1
Out of stock

7

CRANK 1

82M-11412-02-00

1
Out of stock

8

. CRANK 2

82M-11422-00-00

1
Out of stock

9

. CRANK 3

82M-11432-00-00

1
Out of stock

10

. CRANK 4

82M-11442-00-00

1
Out of stock

11

. ROD, CONNECTING

82M-11651-00-00

1
Out of stock

12

. PIN, CRANK 1

82M-11681-00-00

1
Out of stock

13

BEARING,CYL.(8AB)

93310-525S1-00

1
Out of stock

14

WASHER(8AY)

90209-25325-00

1
Out of stock

15

WASHER, CRANK PIN

8AY-11685-00-00

1
Out of stock

16

BEARING

93306-30718-00

1
Out of stock

17

BEARING

93306-30718-00

1
Out of stock

18

WASHER, PLATE (8R9)

90201-357E4-00

—
Out of stock

19

BEARING (8U9)

93306-20712-00

—
Out of stock

20

SEAL, LABYRINTH 1

82M-11515-00-00

—
Out of stock

21

BEARING(8AB)

93305-30601-00

—
Out of stock

22

CIRCLIP (834)

93440-80023-00

—
Out of stock

23

OIL SEAL(8AV)

93103-35176-00

—
Out of stock

24

OIL SEAL(82M)

93103-32153-00

—
Out of stock

25

KEY, WOODRUFF (8R9)

90280-05033-00

—
Out of stock

26

NUT

90170-16425-00

—
Out of stock

27

WASHER(JN5)

92907-16100-00

—
Out of stock
