1995 Yamaha Vmax 600 (VX600V) Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1995 Yamaha Vmax 600 (VX600V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

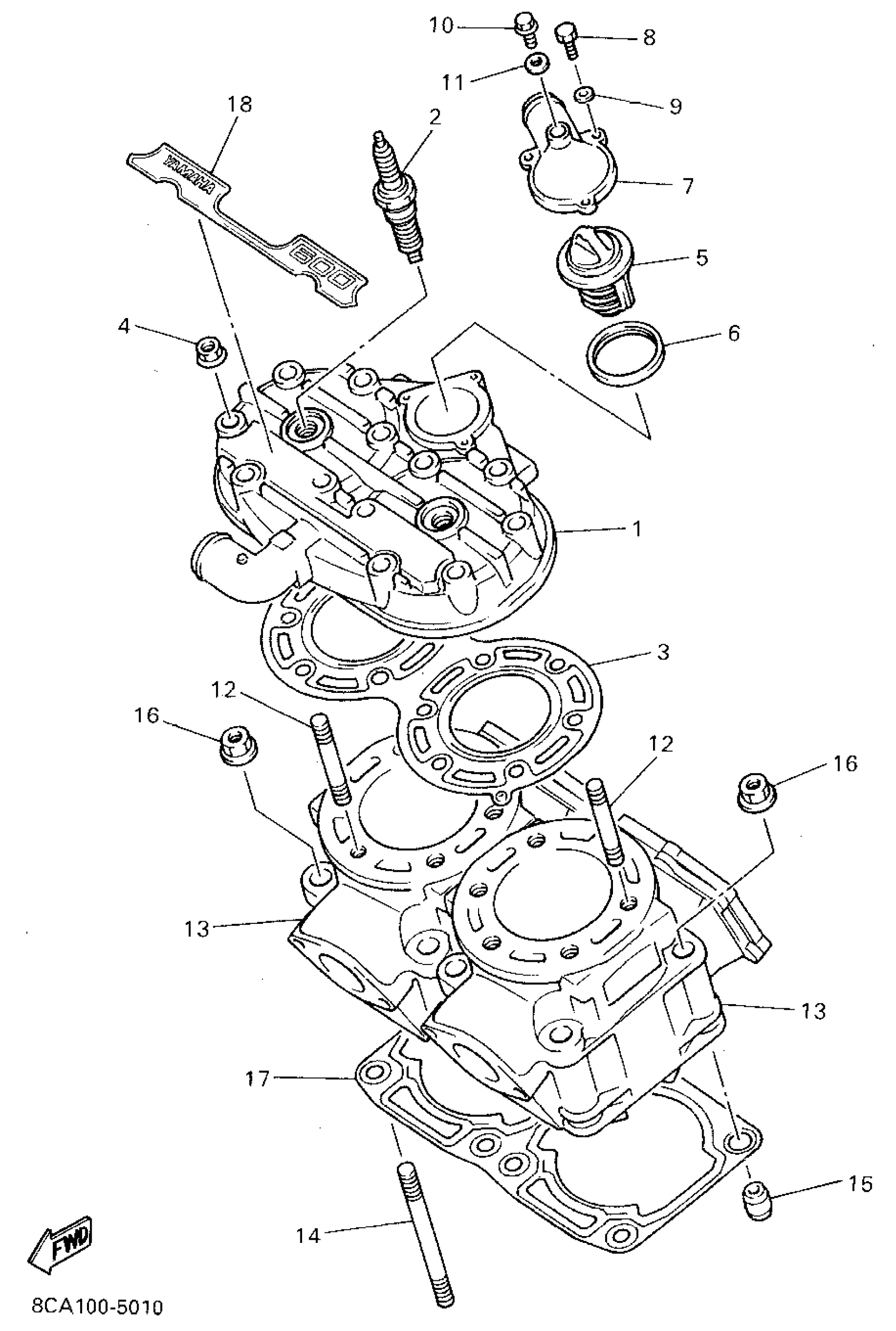

1995 Yamaha Vmax 600 (VX600V) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

8CA-11111-00-00

1
Out of stock

2

1

$3.96

In stock

3

GASKET, CYLINDER HEAD 1

8CA-11181-00-00

1
Out of stock

4

NUT, FLANGE(JN5)

95707-08500-00

1

$1.49

In stock

5

THERMOSTAT

82M-12411-00-00

1
Out of stock

6

SEAL, THERMOSTAT

8A7-12412-01-00

1

$14.25

In stock

7

COVER, THERMOSTAT

82M-12413-00-00

1
Out of stock

8

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

9

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

10

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

11

GASKET (4V2)

90430-06166-00

1

$3.45

In stock

12

BOLT, STUD

90116-08391-00

1
Out of stock

13

CYLINDER 1

8CA-11311-00-00

1
Out of stock

14

BOLT, STUD(8AB)

90116-10574-00

1
Out of stock

15

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

16

NUT, FLANGE(8AB)

95707-10500-00

—

$1.66

In stock

17

GASKET, CYLINDER

8CR-11351-00-00

—

$53.63

In stock

18

EMBLEM

8CA-1111K-00-00

1
Out of stock
