1996 Yamaha Vmax 500 (VX500W) Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 1996 Yamaha Vmax 500 (VX500W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

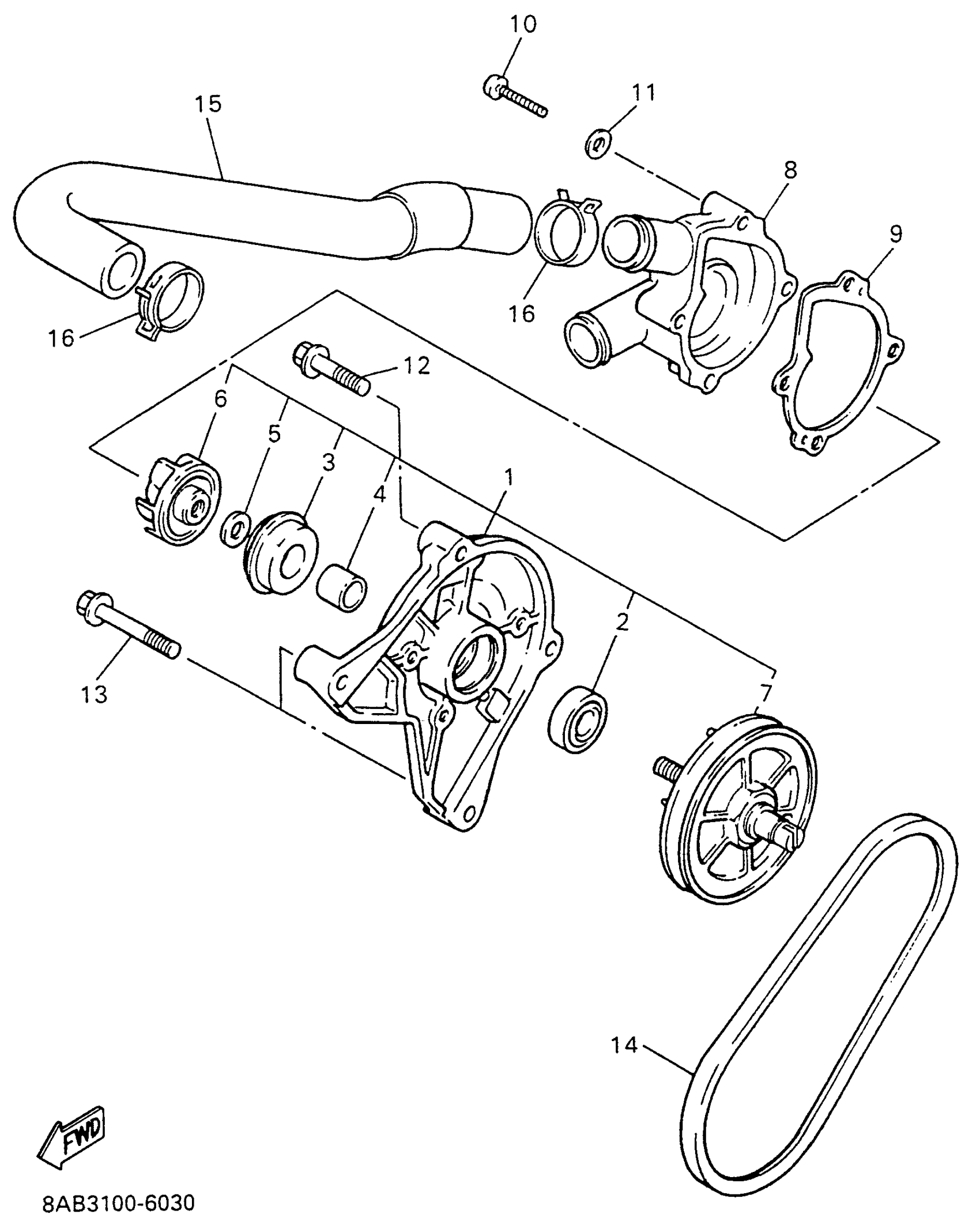

1996 Yamaha Vmax 500 (VX500W) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, WATER PUMP

82M-W1247-03-00

1
Out of stock

2

BEARING(82M)

93306-20117-00

1
Out of stock

3

SEAL, MECHANICAL

82M-12438-00-00

1
Out of stock

4

STOPPER

82M-12437-00-00

1
Out of stock

5

WASHER, PLATE 2562171800

90201-08088-00

1

$1.07

In stock

6

IMPELLER, WATER PUMP

82M-12451-00-00

1
Out of stock

7

HOUSING,WATER PUMP

8AB-W1247-02-00

1
Out of stock

8

COVER,HOUSING

8AB-12422-01-00

1
Out of stock

9

GASKET,HSNG CVR 1

82M-12427-01-00

1
Out of stock

10

SCREW, PAN

98507-06035-00

1

$6.18

In stock

11

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

12

BOLT, FLANGE

95817-08040-00

1

$5.43

In stock

13

BOLT, FLANGE

95817-08110-00

1

$4.48

In stock

14

BELT 1

82M-12444-00-00

1

$27.13

In stock

15

PIPE 1

82M-12481-00-00

1
Out of stock

16

CLIP (8M6)

90467-28046-00

—

$12.43

In stock
