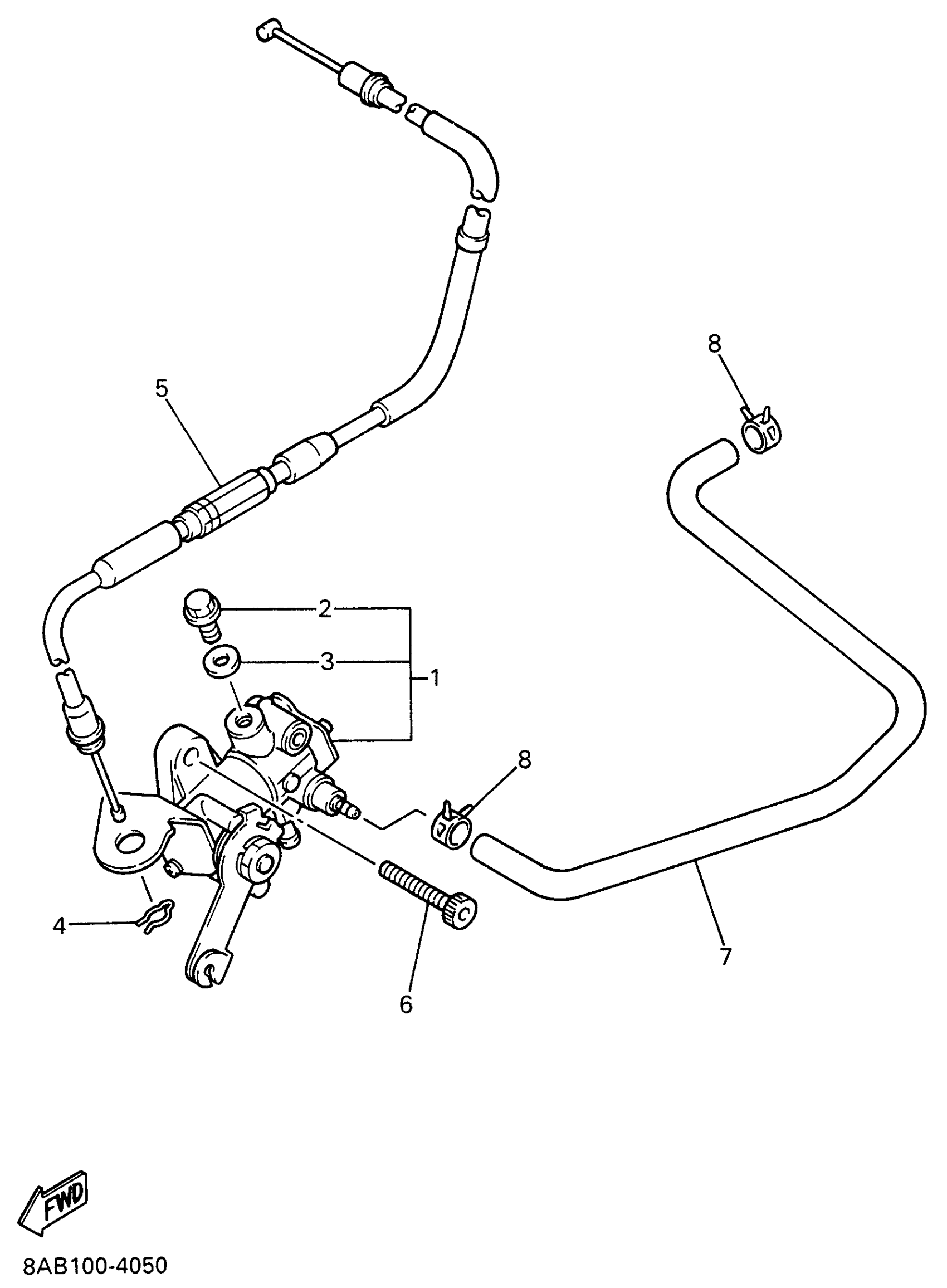

Yamaha VX500W (VMAX 500) 1996 OIL PUMP Diagram

#

Description

Price

1

OIL PUMP ASSY

8AB-13100-03-00

Unavailable

2

BOLT, BREATHER

89A-13185-00-00

Unavailable

3

. GASKET, BREATHER BOLT

89A-13187-00-00

Unavailable

4

CIRCLIP (2A6)

90468-08086-00

$5.53

5

PUMP CABLE ASSEMBLY

8AB-26320-00-00

Unavailable

6

BOLT, SOCKET

91317-05016-00

$2.31

7

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$8.55

8

CLIP (2A6)

90468-02025-00

$6.54
