2013 Yamaha VXR (VX1800AM) Engine Mount Diagram

← All diagrams

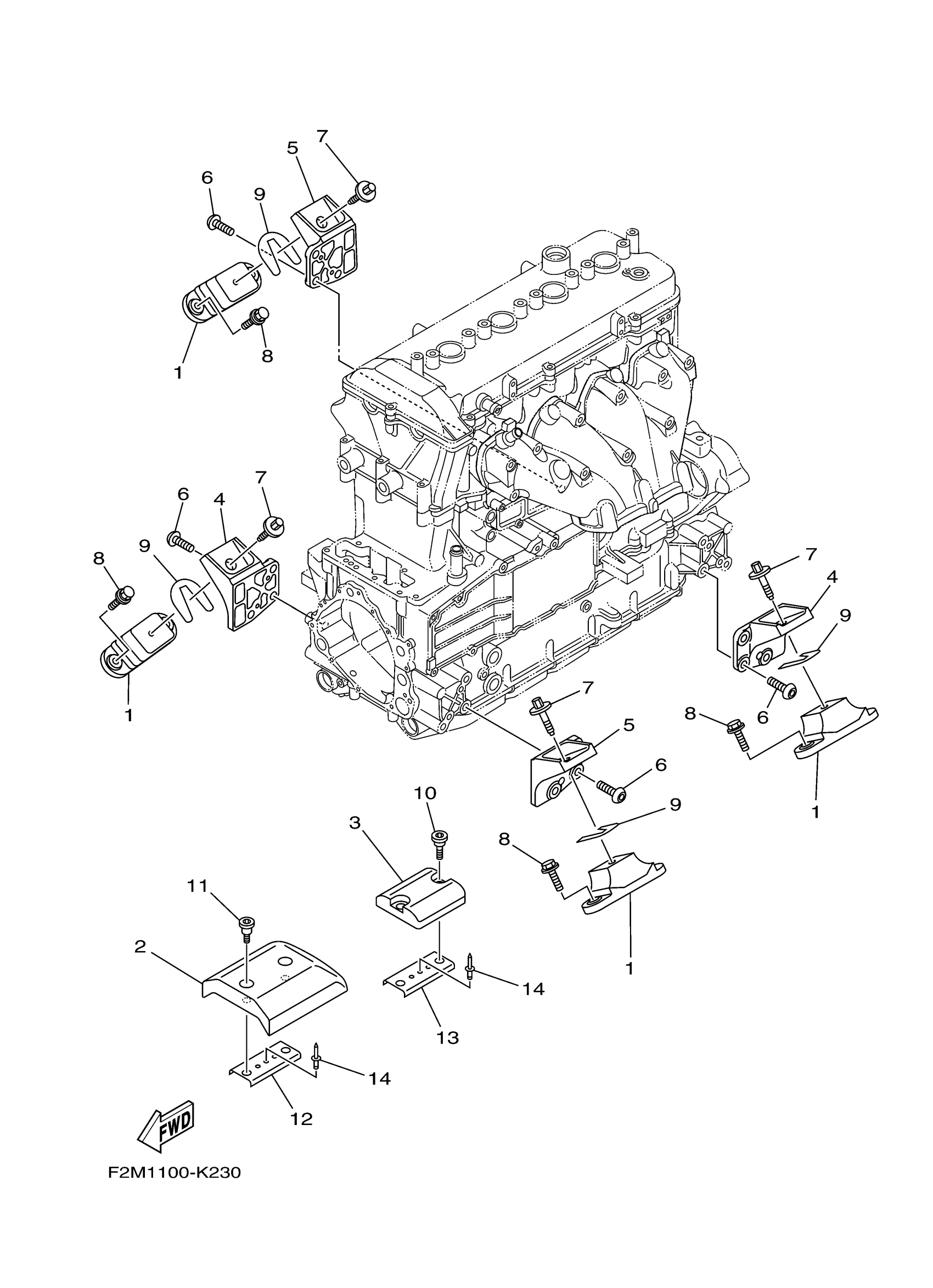

Find the part on the Engine Mount diagram for your 2013 Yamaha VXR (VX1800AM), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Yamaha VXR (VX1800AM) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOUNT RUBBER

67X-44517-10-00

1
Out of stock

2

STOPPER, UPPER MOUNT

6CN-G4532-00-00

1
Out of stock

3

STOPPER, LOWER MOUNT RUBBER

6CN-G4574-00-00

1
Out of stock

4

BRACKET 1

6BH-41661-00-00

1
Out of stock

5

BRACKET 2

6BH-41662-00-00

1
Out of stock

6

SCREW

90149-10052-00

1
Out of stock

7

BOLT, WITH WASHER

90119-08860-00

1
Out of stock

8

BOLT, WITH WASHER

90119-08829-00

1
Out of stock

9

SHIM (T=0.1)

EU0-67354-A0-00

1
Out of stock

9

SHIM (T=0.3)

EU0-67354-B0-00

1
Out of stock

9

SHIM (T=0.5)

EU0-67354-C0-00

1
Out of stock

9

SHIM (T=1.0)

EU0-67354-D0-00

1
Out of stock

9

SHIM (T=2.0)

EU0-67354-E0-00

1
Out of stock

10

BOLT

90109-06875-00

1
Out of stock

11

BOLT

90109-06874-00

1
Out of stock

12

PLATE

F2M-U732B-00-00

1
Out of stock

13

PLATE

F2M-U732B-00-00

1
Out of stock

14

RIVET, BLIND

90267-489U2-00

1
Out of stock
