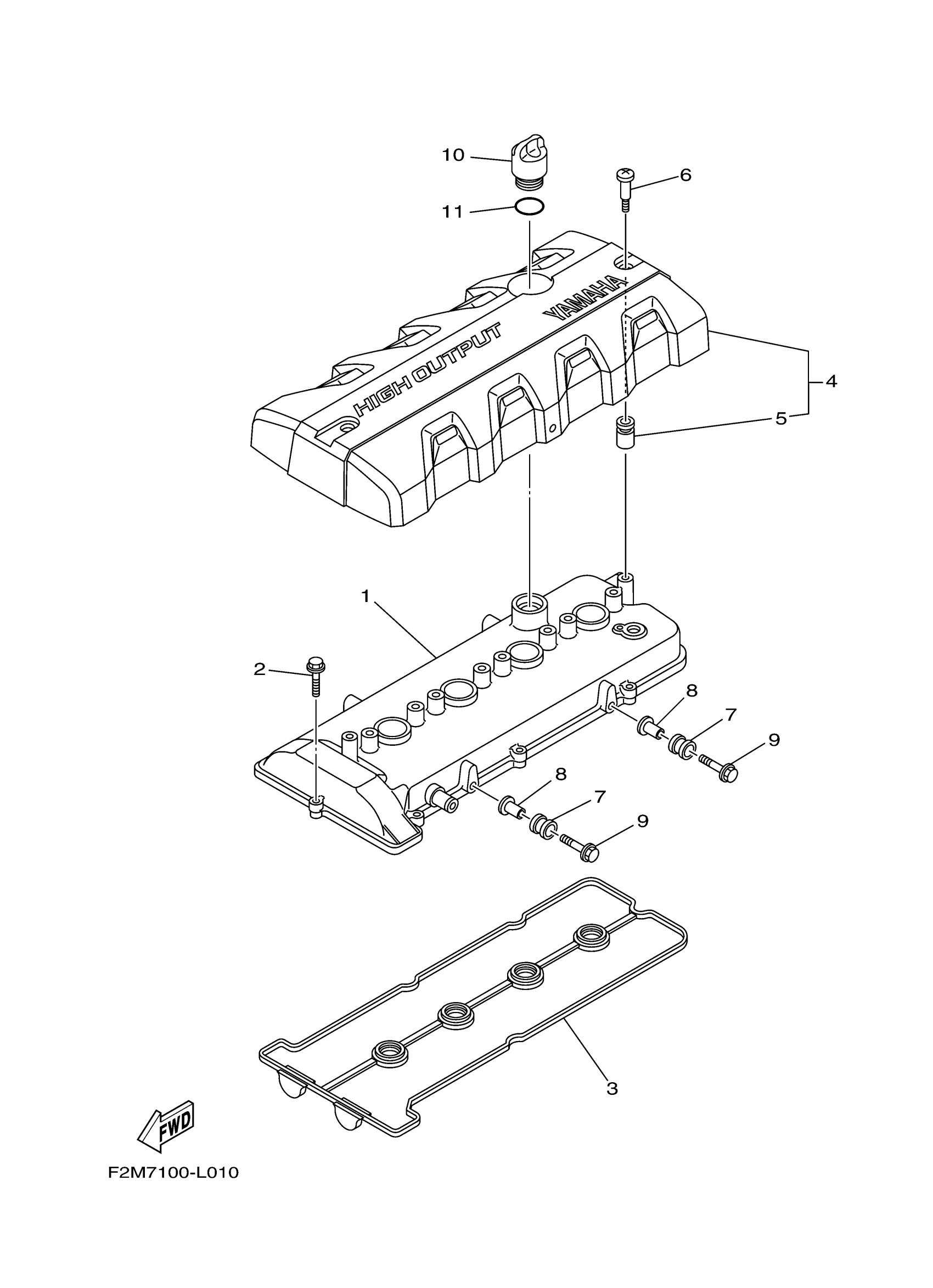

Yamaha VX1800AM (VXR) F2MD 2013 CYLINDER 1 Diagram

#

Description
Price

1

COVER, CYLINDER HEAD 1

6BH-11191-20-00

$310.59

2

BOLT, FLANGE

90105-06028-00

$2.80

3

. GASKET, HEAD COVER 1

6BH-11193-00-00

$35.93

4

COVER ASSY 1

6BH-E110M-00-00

$37.78

5

. GROMMET, ANODE

6S5-E1328-00-00

$1.63

6

BOLT, COVER MOUNTING

6S5-E118E-02-00

$1.37

7

DAMPER, IGNITION COIL

61N-82317-01-00

$1.01

8

. COLLAR

90387-06119-00

$4.37

9

BOLT, FLANGE

95814-06025-00

Unavailable

10

PLUG, OIL

6S5-15363-00-00

$15.89

11

O-RING (437)

93210-24235-00

$5.34
