Description

Price

1

CRANKCASE ASSY

6CR-15100-20-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.23

3

O-RING (4G0)

93210-11453-00

$5.86

4

CYLINDER BLOCK ASSY

6CR-W009B-28-94

Unavailable

5

. BOLT, FLANGE

90105-10071-00

$11.47

6

BOLT, FLANGE(3JP)

95814-06070-00

$6.17

7

PIN, DOWEL (614)

93606-12019-00

$3.64

8

PIN, DOWEL

93604-10M03-00

$4.35

9

ANODE COVER ASSY

69J-11301-11-00

$15.56

10

. ANODE

68V-11325-02-00

$17.38

11

GROMMET, ANODE

67F-11328-01-00

$3.28

12

BOLT (689)

90105-06M07-00

$1.93

13

. GASKET

90430-06M03-00

$2.97

14

BOLT, HEXAGON

97095-08040-00

$3.60

15

.. WASHER, PLATE

92990-08600-00

$2.36

16

HOSE

6S5-11377-00-00

$40.99

17

COVER

6S5-1131M-10-8P

$144.49

18

. GASKET

6BH-13557-00-00

$29.69

19

BOLT, FLANGE

95024-06014-00

$3.12

20

BOLT, FLANGE(3DM)

95024-06020-00

$4.48

21

JOINT 1

6CS-12469-A0-00

$64.54

22

. GASKET, WATER INLET

6CS-12517-00-00

$16.62

23

BOLT, FLANGE

95814-06035-00

$5.37

24

PLATE, BAFFLE LOWER

6S5-13337-10-00

$3.69

25

BOLT,SOCKET

91317-06012-00

$6.17

26

PIN, DOWEL(3VD)

99530-10114-00

$2.23

27

COVER, JOINT

6BH-1131C-00-00

$14.49

28

. GASKET, COVER

6BH-1131B-00-00

$3.16

29

BOLT, FLANGE(4HM)

95814-08020-00

$6.17

30

BOLT, FLANGE

95814-06016-00

$1.77

31

PLUG, OIL LEVEL

6ET-15362-00-00

$43.20

32

O-RING (26H)

93210-06632-00

$6.68

33

PIPE, OIL LEVEL

6CS-8572F-00-00

$80.38

34

. PLATE

6BH-1319K-00-00

$8.31

35

SPACER

6CS-85516-00-00

$21.37

36

. CLIP

90467-150A1-00

$3.55

37

. O-RING

93210-12016-00

$2.66

38

BOLT

90109-06268-00

$2.92

39

BOLT, WASHER BASED

90105-08021-00

$6.26

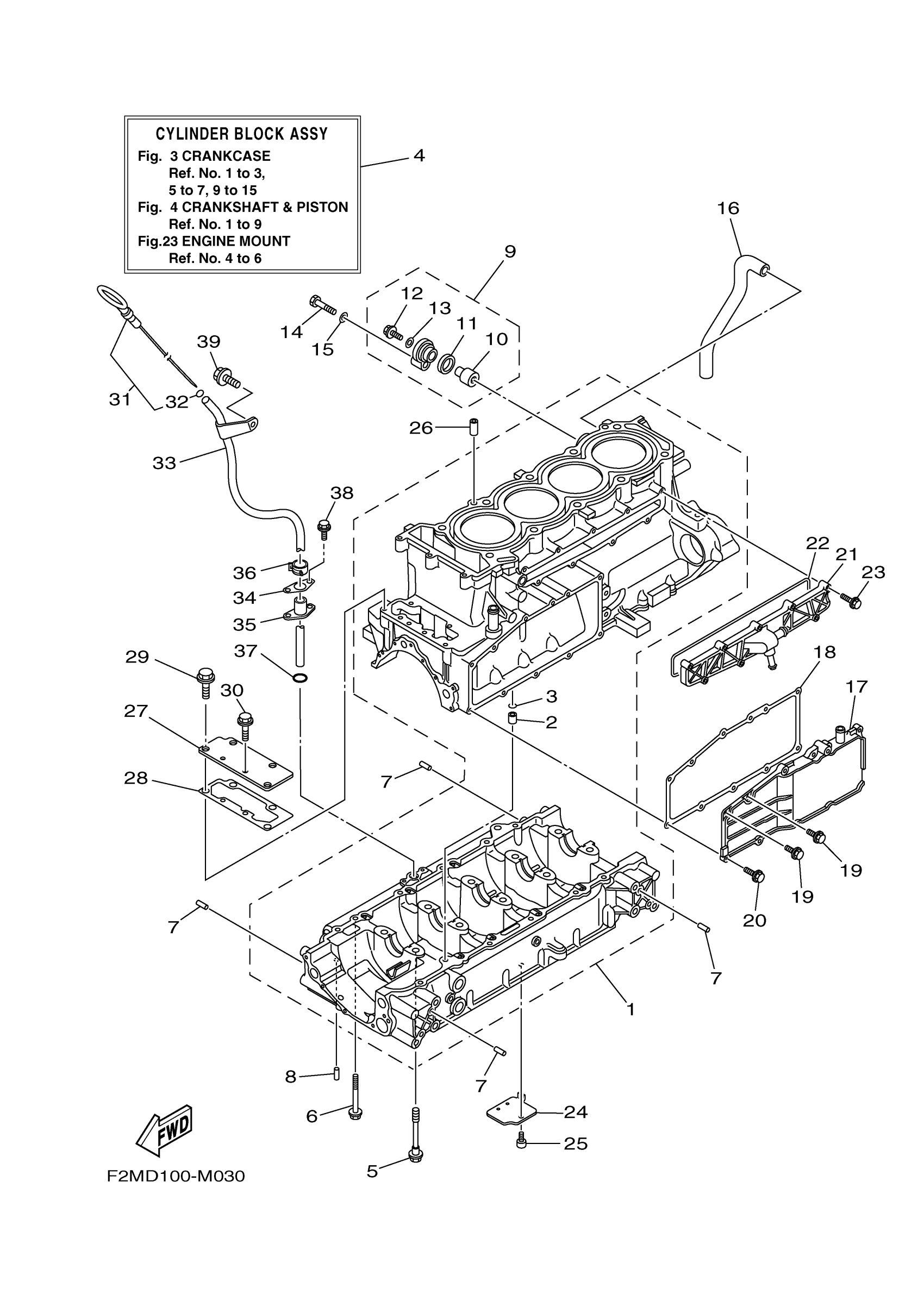

Yamaha VX1800AM (VXR) F2MD 2013 CRANKCASE Diagram

CRANKCASE ASSY

CYLINDER BLOCK ASSY
